. 2019 Aug 2;11(1):65.
doi: 10.1007/s40820-019-0296-7.

Electrostatic Self-assembly of 0D-2D SnO2 Quantum Dots/Ti3C2Tx MXene Hybrids as Anode for Lithium-Ion Batteries

Huan Liu #  1 , Xin Zhang #  2 , Yifan Zhu  2 , Bin Cao  2 , Qizhen Zhu  2 , Peng Zhang  2 , Bin Xu  3 , Feng Wu  1 , Renjie Chen  4
Affiliations

Electrostatic Self-assembly of 0D-2D SnO2 Quantum Dots/Ti3C2Tx MXene Hybrids as Anode for Lithium-Ion Batteries

Huan Liu et al. Nanomicro Lett. .

Abstract

MXenes, a new family of two-dimensional (2D) materials with excellent electronic conductivity and hydrophilicity, have shown distinctive advantages as a highly conductive matrix material for lithium-ion battery anodes. Herein, a facile electrostatic self-assembly of SnO2 quantum dots (QDs) on Ti3C2Tx MXene sheets is proposed. The as-prepared SnO2/MXene hybrids have a unique 0D-2D structure, in which the 0D SnO2 QDs (~ 4.7 nm) are uniformly distributed over 2D Ti3C2Tx MXene sheets with controllable loading amount. The SnO2 QDs serve as a high capacity provider and the "spacer" to prevent the MXene sheets from restacking; the highly conductive Ti3C2Tx MXene can not only provide efficient pathways for fast transport of electrons and Li ions, but also buffer the volume change of SnO2 during lithiation/delithiation by confining SnO2 QDs between the MXene nanosheets. Therefore, the 0D-2D SnO2 QDs/MXene hybrids deliver superior lithium storage properties with high capacity (887.4 mAh g-1 at 50 mA g-1), stable cycle performance (659.8 mAh g-1 at 100 mA g-1 after 100 cycles with a capacity retention of 91%) and excellent rate performance (364 mAh g-1 at 3 A g-1), making it a promising anode material for lithium-ion batteries.

Keywords: 0D–2D hybrid; Lithium-ion battery; MXene; Quantum dots; SnO2.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Schematic illustration for the preparation of 0D–2D SnO2 QDs/MXene hybrids
Fig. 2
Fig. 2
a SEM image, b TEM image, c HRTEM image of 0D–2D SnO2 QDs/MXene hybrid. d SAED patterns of SnO2 QDs. e STEM image and corresponding elemental mapping images of Ti, C, Sn, and O
Fig. 3
Fig. 3

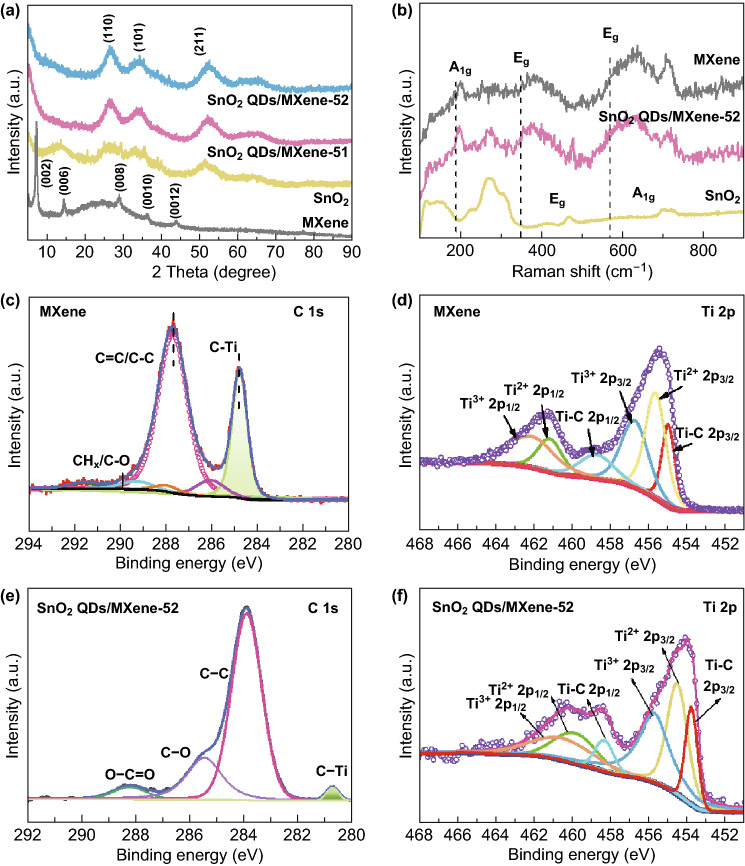

a XRD patterns, b Raman spectra of MXene, SnO2, and SnO2 QDs/MXene hybrid. XPS spectra of c MXene for high-resolution C 1s, d Ti 2p, e SnO2 QDs/MXene-52 for high-resolution C 1s, f Ti 2p
Fig. 4
Fig. 4

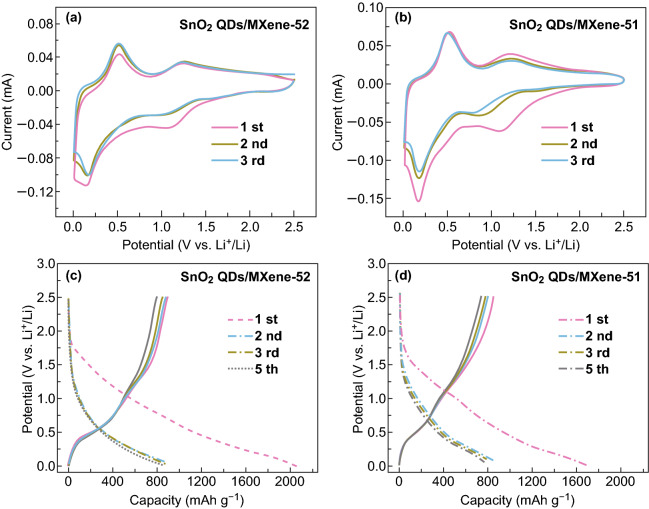

Electrochemical performances as anode in LIBs. a, b CV curves of SnO2 QDs/MXene at a scan rate of 0.1 mV s−1 in 0.01–2.5 V. c, d Charge/discharge curves of SnO2 QDs/MXene at 50 mA g−1
Fig. 5
Fig. 5

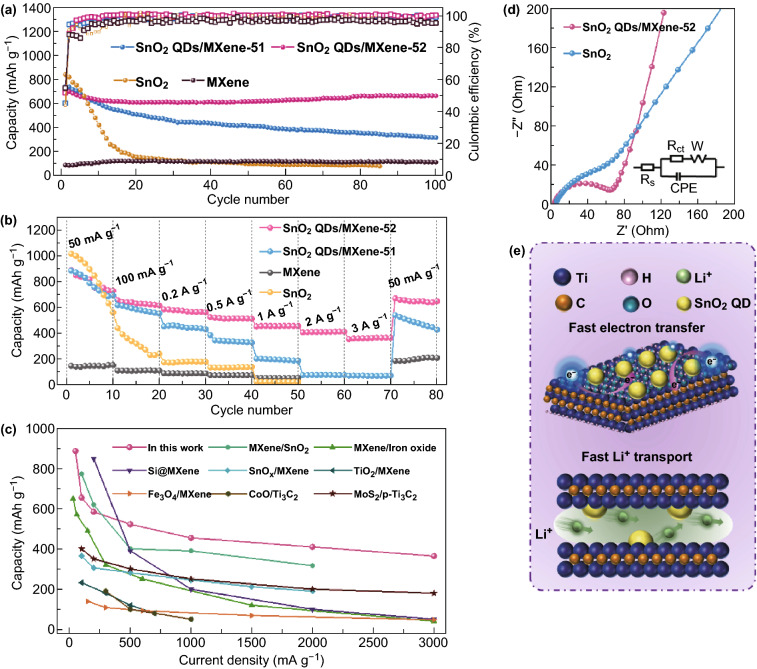

a Cycle stability, b rate performance of all the samples as LIB electrodes. c Comparison of rate capacity between the SnO2 QDs/MXene-52 and other MXene-based electrode materials reported for LIBs. d Nyquist plots of the SnO2 QDs/MXene-52 and the pure SnO2 electrodes; e energy storage mechanism of the 0D–2D SnO2 QDs/MXene hybrids
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Li M, Lu J, Chen Z, Amine K. 30 years of lithium-ion batteries. Adv. Mater. 2018;30(33):1800561. doi: 10.1002/adma.201800561. - DOI - PubMed
    1. Zuo X, Zhu J, Müller-Buschbaum P, Cheng Y-J. Silicon based lithium-ion battery anodes: a chronicle perspective review. Nano Energy. 2017;31:113–143. doi: 10.1016/j.nanoen.2016.11.013. - DOI
    1. Liu H, Jia M, Zhu Q, Cao B, Chen R, Wang Y, Wu F, Xu B. 3D–0D graphene-Fe3O4 quantum dot hybrids as high-performance anode materials for sodium-ion batteries. ACS Appl. Mater. Interfaces. 2016;8(40):26878–26885. doi: 10.1021/acsami.6b09496. - DOI - PubMed
    1. Zhao Y, Li X, Yan B, Xiong D, Li D, Lawes S, Sun X. Recent developments and understanding of novel mixed transition-metal oxides as anodes in lithium ion batteries. Adv. Energy Mater. 2016;6(8):1502175. doi: 10.1002/aenm.201502175. - DOI
    1. Lian P, Wang J, Cai D, Liu G, Wang Y, Wang H. Design and synthesis of porous nano-sized Sn@C/graphene electrode material with 3D carbon network for high-performance lithium-ion batteries. J. Alloys Compd. 2014;604:188–195. doi: 10.1016/j.jallcom.2014.03.116. - DOI
