. 2020 Dec 28;12(8):2890-2897.
doi: 10.1039/d0sc05924b.

Mangana(iii/iv)electro-catalyzed C(sp3)-H azidation

Tjark H Meyer  1   2 , Ramesh C Samanta  1   2 , Antonio Del Vecchio  1 , Lutz Ackermann  1   2
Affiliations

Mangana(iii/iv)electro-catalyzed C(sp3)-H azidation

Tjark H Meyer et al. Chem Sci. .

Abstract

Manganaelectro-catalyzed azidation of otherwise inert C(sp3)-H bonds was accomplished using most user-friendly sodium azide as the nitrogen-source. The operationally simple, resource-economic C-H azidation strategy was characterized by mild reaction conditions, no directing group, traceless electrons as the sole redox-reagent, Earth-abundant manganese as the catalyst, high functional-group compatibility and high chemoselectivity, setting the stage for late-stage azidation of bioactive compounds. Detailed mechanistic studies by experiment, spectrophotometry and cyclic voltammetry provided strong support for metal-catalyzed aliphatic radical formation, along with subsequent azidyl radical transfer within a manganese(iii/iv) manifold.

PubMed Disclaimer

Conflict of interest statement

There are no conflicts to declare.

Figures

Scheme 1
Scheme 1. Manganaelectro-catalyzed azidation.
Scheme 2
Scheme 2. Proof of concept electro C(sp3)–H azidation.
Scheme 3
Scheme 3. Reaction scope of manganaelectro-catalyzed C(sp3)–H azidation. [a] Standard conditions: substrate (0.5 mmol), NaN3 (4.0 mmol), [Mn2] (2.5 or 5.0 mol%), LiClO4 (0.5 mmol), MeCN/AcOH (5 mL, 1 : 1), a nitrogen atmosphere, 10 h, 25 °C, and constant current electrolysis at 8.0 mA in an undivided cell. All yields are isolated products; ratios for site-selectivity are determined by 1H-NMR of the crude mixture. [b] At 50 °C. [c] 3,4-Dihydronaphthalen-1(2H)-one 3 was detected in 10% from crude 1H-NMR with 1,3,5-trimethoxy benzene as the internal standard. [d] Standard conditions for 20 h.
Scheme 4
Scheme 4. Gram-scale manganaelectro-catalyzed C–H azidation (4.30 F).
Scheme 5
Scheme 5. Mechanistic investigation of manganaelectro-catalyzed azidation of unactivated C(sp3)–H bonds. (a) Radical trap experiments. (b) Competition experiment. (c) Kinetic experiments. (d) Chronoamperometric studies at 0.8 V vs. Ag/Ag+. (e) Stoichiometric synthesis of well-defined manganese(iii) azide and manganese(iv) diazide complexes. (f) UV-vis spectroscopic studies: (i) MeCN (0.04 mM) was used as the solvent at 25 °C. (ii) MeCN/AcOH (1 : 1, 0.05 mM) was used as the solvent at 25 °C.
Scheme 6
Scheme 6. Cyclic voltammetry: MeCN (0.3 mm) and LiClO4 (0.1 m) was used as the electrolyte and Ag/AgCl (3 M) as the reference electrode, at 25 °C and a scanning rate of 100 mV s−1.
Fig. 1

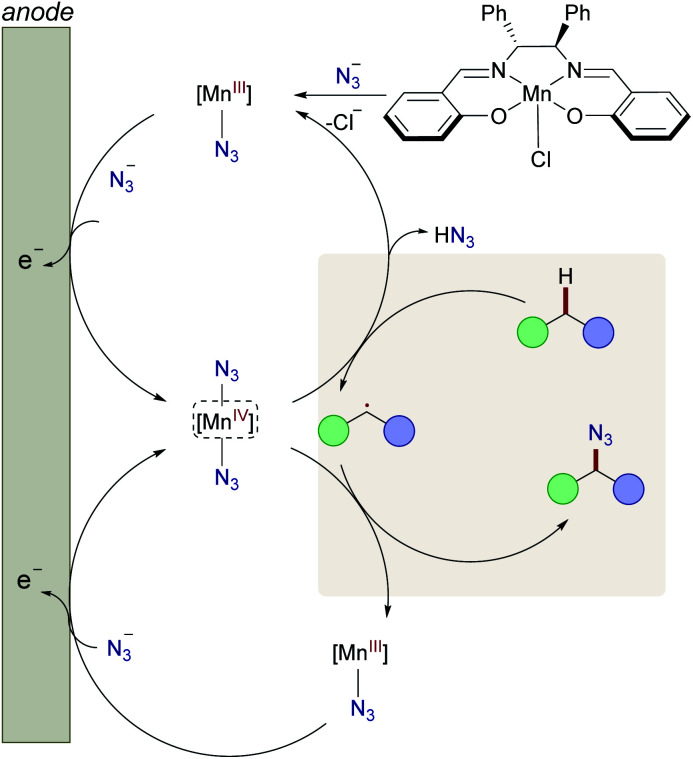

Fig. 1. Proposed mechanism for manganaelectro-catalyzed C(sp3)–H azidation.
See this image and copyright information in PMC

References

    1. Khake S. M. Chatani N. Trends Chem. 2019;1:524. doi: 10.1016/j.trechm.2019.06.002. - DOI
    2. Gandeepan P. Müller T. Zell D. Cera G. Warratz S. Ackermann L. Chem. Rev. 2019;119:2192. doi: 10.1021/acs.chemrev.8b00507. - DOI - PubMed
    3. Chu J. C. K. Rovis T. Angew. Chem., Int. Ed. 2018;57:62. doi: 10.1002/anie.201703743. - DOI - PMC - PubMed
    4. He J. Wasa M. Chan K. S. L. Shao Q. Yu J.-Q. Chem. Rev. 2017;117:8754. doi: 10.1021/acs.chemrev.6b00622. - DOI - PMC - PubMed
    5. Hartwig J. F. Larsen M. A. ACS Cent. Sci. 2016;2:281. doi: 10.1021/acscentsci.6b00032. - DOI - PMC - PubMed
    6. White M. C. Science. 2012;335:807. doi: 10.1126/science.1207661. - DOI - PubMed
    7. Brückl T. Baxter R. D. Ishihara Y. Baran P. S. Acc. Chem. Res. 2012;45:826. doi: 10.1021/ar200194b. - DOI - PMC - PubMed
    8. Lyons T. W. Sanford M. S. Chem. Rev. 2010;110:1147. doi: 10.1021/cr900184e. - DOI - PMC - PubMed
    9. Satoh T. Miura M. Chem.–Eur. J. 2010;16:11212. doi: 10.1002/chem.201001363. - DOI - PubMed
    10. Bergman R. G. Nature. 2007;446:391. doi: 10.1038/446391a. - DOI - PubMed
    11. Labinger J. A. Bercaw J. E. Nature. 2002;417:507. doi: 10.1038/417507a. - DOI - PubMed
    1. Laudadio G. Deng Y. van der Wal K. Ravelli D. Nuño M. Fagnoni M. Guthrie D. Sun Y. Noël T. Science. 2020;369:92. doi: 10.1126/science.abb4688. - DOI - PubMed
    2. Bunescu A. Lee S. Li Q. Hartwig J. F. ACS Cent. Sci. 2017;3:895. doi: 10.1021/acscentsci.7b00255. - DOI - PMC - PubMed
    3. Pouliot J.-R. Grenier F. Blaskovits J. T. Beaupré S. Leclerc M. Chem. Rev. 2016;116:14225. doi: 10.1021/acs.chemrev.6b00498. - DOI - PubMed
    4. Schipper D. J. Fagnou K. Chem. Mater. 2011;23:1594. doi: 10.1021/cm103483q. - DOI
    1. Baudoin O. Angew. Chem., Int. Ed. 2020;59:17798. doi: 10.1002/anie.202001224. - DOI - PubMed
    2. Hili R. Yudin A. K. Nat. Chem. Biol. 2006;2:284. doi: 10.1038/nchembio0606-284. - DOI - PubMed
    1. Börgel J. Ritter T. Chem. 2020;6:1877. doi: 10.1016/j.chempr.2020.07.007. - DOI
    2. Wu F. Zhang J. Song F. Wang S. Guo H. Wei Q. Dai H. Chen X. Xia X. Liu X. Zhang L. Yu J.-Q. Lei X. ACS Cent. Sci. 2020;6:928. doi: 10.1021/acscentsci.0c00122. - DOI - PMC - PubMed
    3. Wang W. Lorion M. M. Shah J. Kapdi A. R. Ackermann L. Angew. Chem., Int. Ed. 2018;57:14700. doi: 10.1002/anie.201806250. - DOI - PubMed
    4. Cernak T. Dykstra K. D. Tyagarajan S. Vachal P. Krska S. W. Chem. Soc. Rev. 2016;45:546. doi: 10.1039/C5CS00628G. - DOI - PubMed
    5. Noisier A. F. M. Brimble M. A. Chem. Rev. 2014;114:8775. doi: 10.1021/cr500200x. - DOI - PubMed

    1. For selected examples, see:

    2. Singh R. Mukherjee A. ACS Catal. 2019;9:3604. doi: 10.1021/acscatal.9b00009. - DOI
    3. Clark J. R. Feng K. Sookezian A. White M. C. Nat. Chem. 2018;10:583. doi: 10.1038/s41557-018-0020-0. - DOI - PMC - PubMed
    4. Paradine S. M. Griffin J. R. Zhao J. Petronico A. L. Miller S. M. Christina White M. Nat. Chem. 2015;7:987. doi: 10.1038/nchem.2366. - DOI - PMC - PubMed
    5. McNally A. Haffemayer B. Collins B. S. L. Gaunt M. J. Nature. 2014;510:129. doi: 10.1038/nature13389. - DOI - PubMed
    6. Jeffrey J. L. Sarpong R. Chem. Sci. 2013;4:4092. doi: 10.1039/C3SC51420J. - DOI
    7. Roizen J. L. Harvey M. E. Du Bois J. Acc. Chem. Res. 2012;45:911. doi: 10.1021/ar200318q. - DOI - PMC - PubMed
    8. Collet F. Dodd R. H. Dauban P. Chem. Commun. 2009:5061. doi: 10.1039/B905820F. - DOI - PubMed
    9. Davies H. M. L. Long M. S. Angew. Chem., Int. Ed. 2005;44:3518. doi: 10.1002/anie.200500554. - DOI - PubMed
    10. Yu X.-Q. Huang J.-S. Zhou X.-G. Che C.-M. Org. Lett. 2000;2:2233. doi: 10.1021/ol000107r. - DOI - PubMed
