. 2021 Jun 17;14(12):3364.
doi: 10.3390/ma14123364.

Optimization Study on Surface Roughness and Tribological Behavior of Recycled Cast Iron Reinforced Bronze MMCs Produced by Hot Pressing

Aydın Güneş  1 , Ömer Sinan Şahin  2 , Hayrettin Düzcükoğlu  3 , Emin Salur  4 , Abdullah Aslan  5 , Mustafa Kuntoğlu  3 , Khaled Giasin  6 , Danil Yurievich Pimenov  7
Affiliations

Optimization Study on Surface Roughness and Tribological Behavior of Recycled Cast Iron Reinforced Bronze MMCs Produced by Hot Pressing

Aydın Güneş et al. Materials (Basel). .

Abstract

Surface roughness reflects the quality of many operational parameters, namely service life, wear characteristics, working performance and tribological behavior of the produced part. Therefore, tribological performance is critical for the components used as tandem parts, especially for the MMCs (Metal Matrix Composites) which are a unique class of materials having extensive application areas such as aerospace, aeronautics, marine engineering and the defense industry. Current work covers the optimization study of production parameters for surface roughness and tribological indicators of newly produced cast iron reinforced bronze MMCs. In this context, two levels of temperature (400 and 450 °C), three levels of pressure (480, 640 and 820 MPa) and seven levels of reinforcement ratios (60/40, 70/30, 80/20, 90/10, 100/0 of GGG40/CuSn10, pure bronze-as received and pure cast iron-as received) are considered. According to the findings obtained by Taguchi's signal-to-noise ratios, the reinforcement ratio has a dominant effect on surface roughness parameters (Ra and Rz), the coefficient of friction and the weight loss in different levels. In addition, 100/0 reinforced GGG40/CuSn10 gives minimum surface roughness, pure cast iron provides the best weight loss and pure bronze offers the desired coefficient of friction. The results showed the importance of material ingredients on mechanical properties by comparing a wide range of samples from starting the production phase, which provides a perspective for manufacturers to meet the market supply as per human requirements.

Keywords: bronze matrix; composites; surface roughness; tribological behavior.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
General outline of the paper.
Figure 2
Figure 2
The samples used in the wear experiments: (a) composite materials and (b) abrasive disc.
Figure 3
Figure 3
Wear test setup: (a) side view (b) front view and (c) schematic view.
Figure 4
Figure 4
SEM image of 70B30C: (a) before wear, (b) after wear, and (c) SEM image of 60B40C after wear.
Figure 4
Figure 4
SEM image of 70B30C: (a) before wear, (b) after wear, and (c) SEM image of 60B40C after wear.
Figure 5
Figure 5
(a) SEM image of the 90B10C specimen after wear, and (b) corresponding EDX spectra of the selected region.
Figure 6
Figure 6
S/N ratios of surface roughness-Ra.
Figure 7
Figure 7
S/N ratios of surface roughness-Rz.
Figure 8
Figure 8
S/N ratios of weight loss.

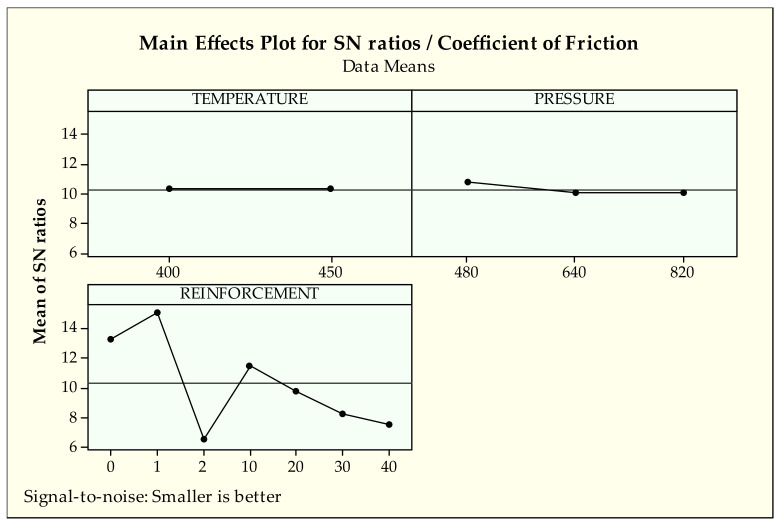

Figure 9
Figure 9
S/N ratios of coefficient of friction.
See this image and copyright information in PMC

References

    1. Gunes A. Ph.D. Thesis. Konya Technical University; Konya, Turkey: Jul 25, 2019. Investigation of Wear Properties of Composite Materials Produced by Recycling of Cast Iron/Bronze.
    1. Gao X., Yue H., Guo E., Zhang S., Yao L., Lin X., Wang B., Guan E. Tribological properties of copper matrix composites reinforced with homogeneously dispersed graphene nanosheets. J. Mater. Sci. Technol. 2018;34:1925–1931. doi: 10.1016/j.jmst.2018.02.010. - DOI
    1. Uzun M., Usca U.A. Effect of Cr particulate reinforcements in different ratios on wear performance and mechanical properties of Cu matrix composites. J. Braz. Soc. Mech. Sci. Eng. 2018;40:1–9. doi: 10.1007/s40430-018-1130-8. - DOI
    1. Uzun M., Munis M.M., Usca U. Different ratios CrC particle-reinforced Cu matrix composite materials and investigation of wear performance. J. Eng. Res. Appl. 2018;8:1–7.
    1. Sap E. Microstructural and Mechanical Properties of Cu-Based Co-Mo-Reinforced Composites Produced by the Powder Metallurgy Method. J. Mater. Eng. Perform. 2020;29:8461–8472. doi: 10.1007/s11665-020-05309-4. - DOI
