. 2021 Apr 3;5(4):714-721.
doi: 10.1016/j.jseint.2021.02.006. eCollection 2021 Jul.

The study of 2-dimensional computed tomography scans of the glenoid anatomy in relation to reverse shoulder arthroplasty in the Southern Chinese population

Amanda Mun Yee Slocum  1 , Yuk Chuen Siu  2 , Chun Man Ma  3 , Tun Hing Lui  4
Affiliations

The study of 2-dimensional computed tomography scans of the glenoid anatomy in relation to reverse shoulder arthroplasty in the Southern Chinese population

Amanda Mun Yee Slocum et al. JSES Int. .

Abstract

Background: Reverse shoulder arthroplasty is becoming an increasingly common surgical procedure in Hong Kong, as well as in many other countries worldwide. The aim of this study is to describe the glenoid anatomy in the Southern Chinese population. We are interested to know whether commercially available glenoid implants are suitable for this population and whether there are any steps or precautions we can take during surgery to optimize the clinical outcome for these patients.

Method: A total of 244 shoulders of Southern Chinese patients were analyzed using 2-dimensional computed tomography, formatted to align along the scapular axis. The anatomic parameters analyzed included the shape, axial configuration, maximum width, maximum height, version, and presence of bone defect.

Results: In our study, 76.6% of glenoids were pear-shaped, 23.0% were elliptical, and only 0.4% were inverted pear in shape. Of all glenoids, 95.1% of glenoids had posterior-prominent axial configuration, whereas 4.9% had neutral axial configuration. The mean maximum glenoid height for both genders was 33.8 mm, whereas the mean maximum glenoid height was 32.2 mm for women and 36.6 mm for men. The mean maximum glenoid width for both genders was 25.8 mm, whereas the mean maximum glenoid width was 24.8 mm for women and 27.3 mm for men. The differences in measurements between genders were statistically significant. Of all glenoids, 46.3% of the glenoids were retroverted, whereas 53.7% of the glenoids were anteverted. The mean version for both genders was 0.77 degrees anteversion. The mean version was 1.16 degrees anteversion for women and 0.10 degrees anteversion for men. Of the 244 glenoids, 4 had bone defects. In our study, 39.8% of patients had mean maximum glenoid widths that were less than 25 mm, which is the smallest size available for most conventional glenoid baseplates.

Conclusion: A significant portion of the Southern Chinese population has glenoid widths that are smaller than the smallest commercially available glenoid baseplates. Understanding the glenoid anatomy is crucial in the case of reverse shoulder arthroplasty, as it has significant implications in implant design, operative planning, and surgical outcomes.

Keywords: 2D-CT; Glenoid anatomy; Glenoid morphology; Hong Kong; Reverse shoulder arthroplasty; Southern Chinese.

PubMed Disclaimer

Figures

Figure 1
Figure 1
CT reformatted using Osirix software. Orange line: medial scapular body. Blue line: trans-scapular axis. Purple line: Center of best fit circle/point with widest glenoid width. CT, computed tomography.
Figure 2
Figure 2
Glenoid shape.
Figure 3
Figure 3
Axial configuration of the glenoid.
Figure 4
Figure 4
Glenoid version.
Figure 5
Figure 5

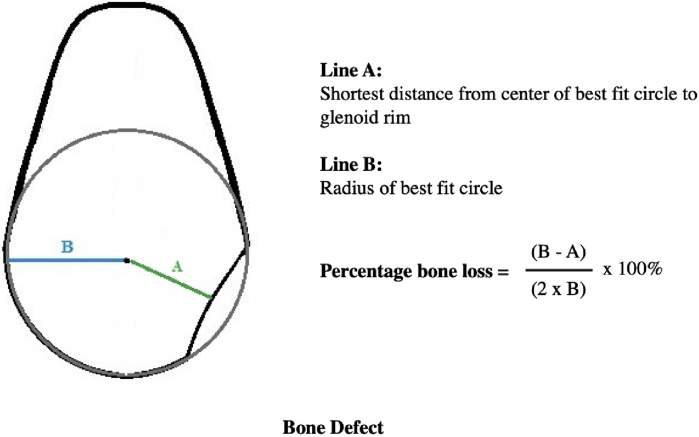

Calculation of bone defect.
Figure 6
Figure 6
Age distribution of study population.
Figure 7
Figure 7

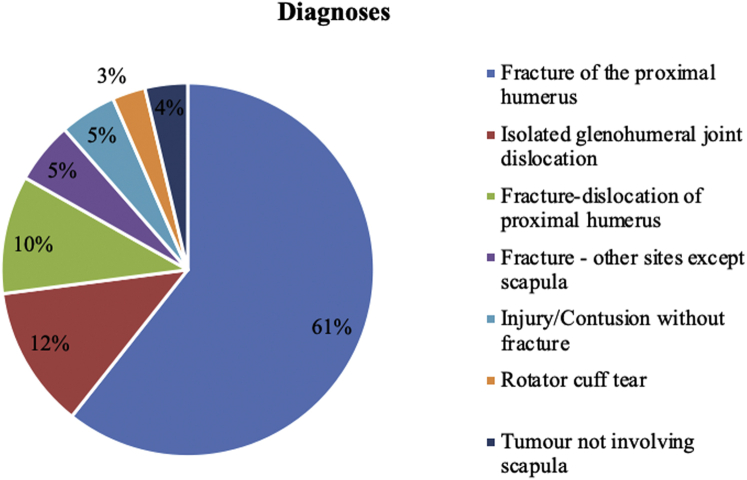

Indications for 2D CT scans of the shoulder by diagnoses. CT, computed tomography; 2D, 2-dimensional.
Figure 8
Figure 8
Distribution of glenoid height for both genders.
Figure 9
Figure 9
Distribution of glenoid width for both genders.
See this image and copyright information in PMC

References

    1. Anglin C., Wyss U.P., Pichora D.R. Mechanical testing of shoulder prostheses and recommendations for glenoid design. J Shoulder Elbow Surg. 2000;9:323–331. - PubMed
    1. Cabezas A.F., Krebes K., Hussey M.M., Santoni B.G., Kim H.S., Frankle M.A. Morphologic variability of the shoulder between the populations of North American and East Asian. Clin Orthoped Surg. 2016;8:280–287. doi: 10.4055/cios.2016.8.3.280. - DOI - PMC - PubMed
    1. Chechroun A.J., Hawkins C., Kummer F.J., Zuckerman J.D. Fit of current glenoid component designs: an anatomic cadaver study. J Shoulder Elbow Surg. 2002;11:614–617. doi: 10.1067/mse.2002.126009. - DOI - PubMed
    1. Cheung Y.L.A., Lie W.H.C., Chow H.L., Chan W.L., Wong K.H.K., Woo S.B. Are the Current Size Options of Glenoid Baseplates for Reverse Shoulder Arthroplasty Sufficient for our Local Population? J Orthopaedics, Trauma Rehabil. 2016;21:30–34. doi: 10.1016/j.jotr.2015.11.002. - DOI
    1. Churchill R.S., Boorman R.S., Fehringer E.V., Matsen F.A., 3rd Glenoid cementing may generate sufficient heat to endanger the surrounding bone. Clin Orthop Relat Res. 2004:76–79. doi: 10.1097/00003086-200402000-00013. - DOI - PubMed
