A Molecular Simulation Study of Silica/Polysulfone Mixed Matrix Membrane for Mixed Gas Separation

Abstract

Polysulfone-based mixed matrix membranes (MMMs) incorporated with silica nanoparticles are a new generation material under ongoing research and development for gas separation. However, the attributes of a better-performing MMM cannot be precisely studied under experimental conditions. Thus, it requires an atomistic scale study to elucidate the separation performance of silica/polysulfone MMMs. As most of the research work and empirical models for gas transport properties have been limited to pure gas, a computational framework for molecular simulation is required to study the mixed gas transport properties in silica/polysulfone MMMs to reflect real membrane separation. In this work, Monte Carlo (MC) and molecular dynamics (MD) simulations were employed to study the solubility and diffusivity of CO₂/CH₄ with varying gas concentrations (i.e., 30% CO₂/CH₄, 50% CO₂/CH₄, and 70% CO₂/CH₄) and silica content (i.e., 15-30 wt.%). The accuracy of the simulated structures was validated with published literature, followed by the study of the gas transport properties at 308.15 K and 1 atm. Simulation results concluded an increase in the free volume with an increasing weight percentage of silica. It was also found that pure gas consistently exhibited higher gas transport properties when compared to mixed gas conditions. The results also showed a competitive gas transport performance for mixed gases, which is more apparent when CO₂ increases. In this context, an increment in the permeation was observed for mixed gas with increasing gas concentrations (i.e., 70% CO₂/CH₄ > 50% CO₂/CH₄ > 30% CO₂/CH₄). The diffusivity, solubility, and permeability of the mixed gases were consistently increasing until 25 wt.%, followed by a decrease for 30 wt.% of silica. An empirical model based on a parallel resistance approach was developed by incorporating mathematical formulations for solubility and permeability. The model results were compared with simulation results to quantify the effect of mixed gas transport, which showed an 18% and 15% percentage error for the permeability and solubility, respectively, in comparison to the simulation data. This study provides a basis for future understanding of MMMs using molecular simulations and modeling techniques for mixed gas conditions that demonstrate real membrane separation.

Keywords: CO2/CH4 gas transport; empirical modelling; mixed gas; mixed matrix membrane; molecular simulation; polysulfone; silica.

Figure 1

Illustration of incorporation of silica nanocluster in polysulfone chain to form silica/PSF MMM.

Figure 2

The (a) energy and (b) density evolutions during 500 ps NPT molecular dynamics simulation for 15 wt.% silica/PSF MMM.

Figure 3

Illustration of fractional free volume with silica for 30 wt.% within PSF-based MMM.

Figure 4

Illustration of amorphous cells for (a) 15 wt.%, (b) 20 wt.%, (c) 25 wt.%, and (d) 30 wt.% silica/PSF MMM after NPT with observed agglomeration marked by blue circle ring.

Figure 5

X-ray scattering pattern of varying silica weight percentages in silica/PSF MMMs.

Figure 6

Solubility graphs for (a) CO₂, (b) CH₄, and (c) CO₂/CH₄ selectivity.

Figure 7

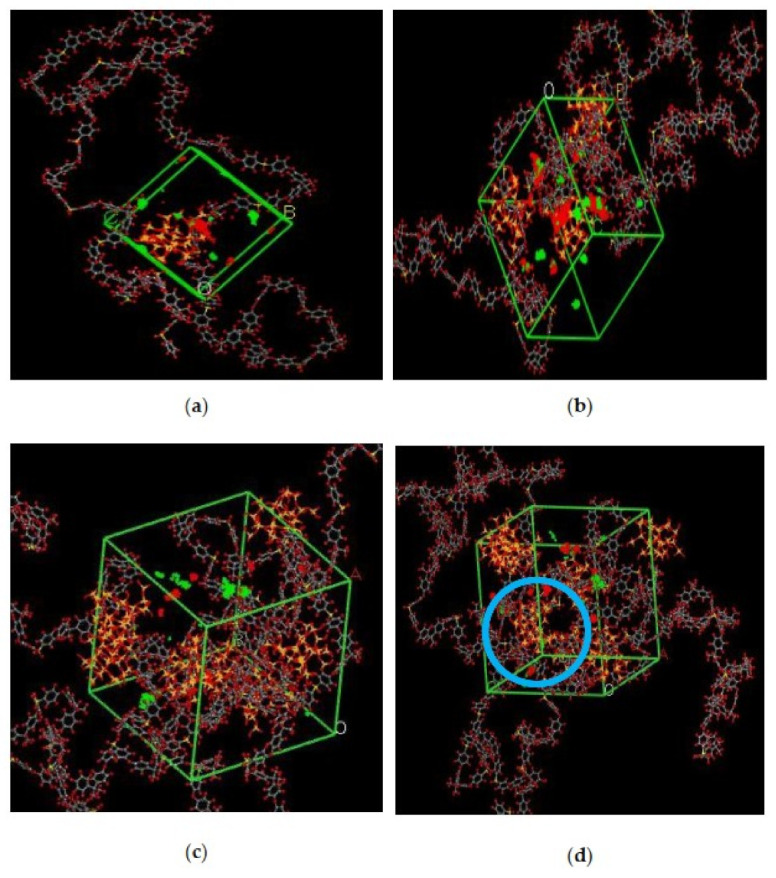

Active sorption sites of CO₂/CH₄ for silica/PSF MMM with (a) 15 wt.%, (b) 20 wt.%, (c) 25 wt.%, and (d) 30 wt.% inorganic filler at 50%CO₂/50%CH₄ with observed proximity marked by a blue circle ring.

Figure 8

Active sorption sites of CO₂/CH₄ for silica/PSF MMM with (a) 30%CO₂/70%CH₄, (b) 50%CO₂/50%CH₄, and (c) 70%CO₂/30%CH₄ at 15 wt.% inorganic filler.

Figure 9

Effect of 15 wt.% of silica towards sorption energy distribution with gas concentrations for silica/PSF MMM. (a) 70% CO₂/30% CH₄; (b) 50% CO₂/50% CH₄; (c) 30% CO₂/70% CH₄.

Figure 9

Effect of 15 wt.% of silica towards sorption energy distribution with gas concentrations for silica/PSF MMM. (a) 70% CO₂/30% CH₄; (b) 50% CO₂/50% CH₄; (c) 30% CO₂/70% CH₄.

Figure 10

Mean square displacement (MSD) graph of (a) logarithmic plot for determination of Einstein diffusion region, and (b) Normal plot for evaluation of diffusivity coefficients.

Figure 11

Diffusivity graph of silica/PSF-based MMM with varying mixed gas concentrations and filler weight percentage for (a) CO₂ diffusivity, (b) CH₄ diffusivity, and (c) CO₂/CH₄ selectivity.

Figure 11

Diffusivity graph of silica/PSF-based MMM with varying mixed gas concentrations and filler weight percentage for (a) CO₂ diffusivity, (b) CH₄ diffusivity, and (c) CO₂/CH₄ selectivity.

Figure 12

Permeability graph for (a) CO₂ and CH₄, and (b) CO₂/CH₄ selectivity with varying mixed gas concentrations and filler weight percentage.

Figure 13

Development of an empirical model for silica/PSF MMMs with varying mixed gas concentrations and filler weight percentage for (a) solubility and (b) permeability.
