. 2021 Jul 11;21(14):4741.
doi: 10.3390/s21144741.

A Dynamic Risk Appraisal Model and Its Application in VTS Based on a Cellular Automata Simulation Prediction

Yongfeng Suo  1 , Zhihong Sun  2 , Christophe Claramunt  3 , Shenhua Yang  1 , Zhibing Zhang  1
Affiliations

A Dynamic Risk Appraisal Model and Its Application in VTS Based on a Cellular Automata Simulation Prediction

Yongfeng Suo et al. Sensors (Basel). .

Abstract

The successful implementation of Vessel Traffic Services (VTS) relies heavily on human decisions. With the increasing development of maritime traffic, there is an urgent need to provide a sound support for dynamic risk appraisals and decision support. This research introduces a cellular automata (CA) simulation-based modelling approach the objective of which is to analyze and evaluate real-time maritime traffic risks in port environments. The first component is the design of a CA model to monitor ships' behavior and maritime fairway traffic. The second component is the refinement of the modelling approach by combining a cloud model with expert knowledge. The third component establishes a risk assessment model based on a fuzzy comprehensive evaluation. A typical scenario was experimentally implemented to validate the model's efficiency and operationality.

Keywords: VTS; cellular automata; risk appraisal; traffic prediction; traffic simulation.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analysis, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Figures

Figure 1
Figure 1
Overall method diagram.

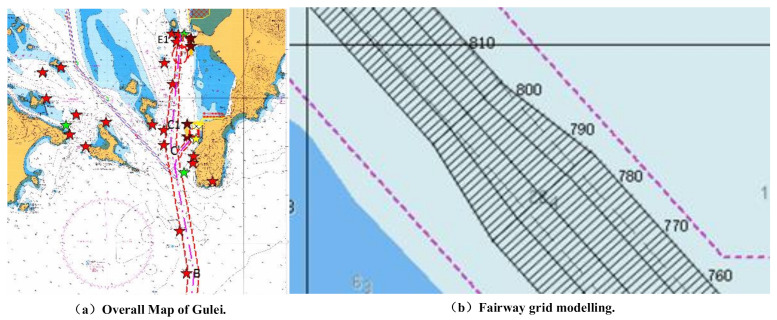

Figure 2
Figure 2
Channel simulation.
Figure 3
Figure 3
Ship domain cellular.

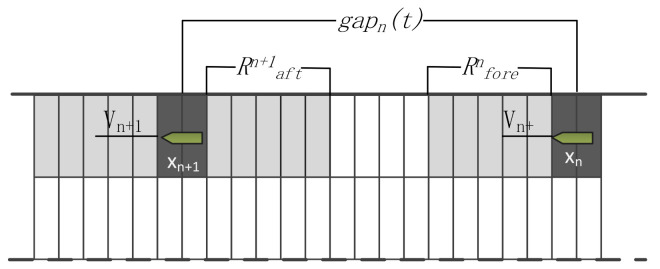

Figure 4
Figure 4
Key parameters to consider when overtaking.

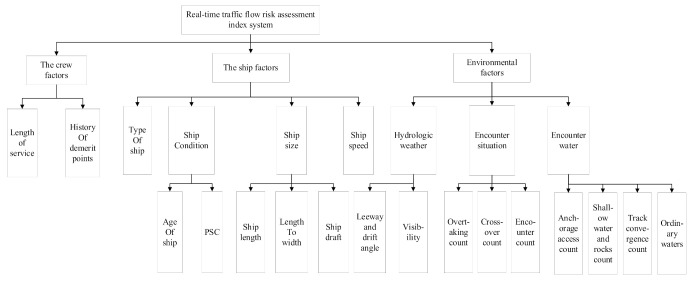

Figure 5
Figure 5
The real-time traffic flow risk assessment index system.
Figure 6
Figure 6
Real-time traffic flow risk variation diagram of port waters.
Figure 7
Figure 7
Risk statistical chart of 20 ships in a traffic flow.

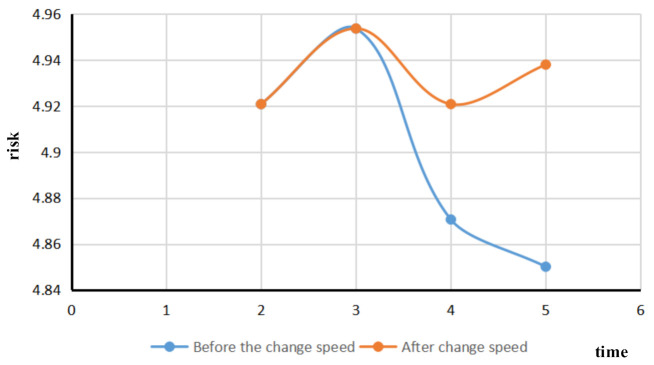

Figure 8
Figure 8
Comparison of changes in ship speed, traffic flow risk.
Figure 9
Figure 9
Comparison of traffic flow risk changes with changing visibility.
See this image and copyright information in PMC

References

    1. International Association of Marine Aids to Navigation and Lighthouse Authorities (IALA) IALA Vessel Traffic Services Manual. [(accessed on 9 July 2021)];2021 Available online: https://indd.adobe.com/view/56fb7835-cee5-4423-9fff-724d2ea4b5c3.
    1. Kharchenko V., Vasylyev V. Decision-Making System for Vessel Traffic Planning and Radar Control; Proceedings of the First European Radar Conference; Amsterdam, The Netherlands. 11–15 October 2004.
    1. Nuutinen M., Savioja P., Sonninen S. Challenges of developing the complex socio-technical system: Realising the present, acknowledging the past, and envisaging the future of vessel traffic services. Appl. Ergon. 2006;28:513–524. doi: 10.1016/j.apergo.2006.10.004. - DOI - PubMed
    1. Lützhöft M. Ph.D. Thesis. Linköping University; Linköping, Sweden: 2004. “The technology is great when it works”: Maritime Technology and Human Integration on the Ship’s Bridge.
    1. Aichhorn K., de Bedoya C.C., Berglez P., Cabeceira M.L., Troger M., Kemetinger A. Maritime volumetric navigation system; Proceedings of the 25th International Technical Meeting of the Satellite Division of the Institute of Navigation; Nashville, TN, USA. 17–21 September 2012; pp. 3651–3657.
