Randomized Controlled Trial
. 2021 Aug 2;22(1):22.
doi: 10.1186/s40510-021-00370-8.

Effect of miniscrew insertion angle in the maxillary buccal plate on its clinical survival: a randomized clinical trial

Amin Golshah  1 , Kimia Gorji  2 , Nafiseh Nikkerdar  3
Affiliations
Randomized Controlled Trial

Effect of miniscrew insertion angle in the maxillary buccal plate on its clinical survival: a randomized clinical trial

Amin Golshah et al. Prog Orthod. .

Abstract

Introduction: This study sought to assess the effect of miniscrew insertion angle (vertical and oblique) on its clinical survival under shearing forces in orthodontic patients undergoing canine retraction.

Materials and methods: In this split-mouth randomized controlled clinical trial, 50 miniscrews were placed bilaterally in 25 patients with 45° and 90° insertion angles relative to a line perpendicular to the occlusal plane distal to the maxillary first premolar extraction site. Allocation of insertion angles to the right/left side was random using the Random Allocation Software. The patients, clinician, and statistician were blinded to the allocation of miniscrews to the side of jaw. The patients were followed-up monthly for 6 months. The primary outcome was the clinical survival of miniscrews, which was evaluated at each follow-up session. The secondary outcomes were the miniscrew stability based on the Periotest value (PTV) and the level of pain experienced by patients at 1, 12, and 24 h, and 7 days after miniscrew placement using a visual analog scale (VAS). Data were analyzed using paired t-test, repeated measures ANOVA, and McNemar's test.

Results: The clinical survival rate of miniscrews placed at 90° and 45° angles was 76% and 88%, respectively. This difference was not statistically significant (P = 0.375). No significant difference was noted between the two groups regarding the PTV or the pain score either (P > 0.05).

Conclusion: Clinically, the insertion angle of miniscrews (90° versus 45° relative to a line perpendicular to the occlusal plane) has no significant effect on the miniscrew survival rate or stability during orthodontic treatment.

Trial registration: This trial was registered at www.irct.ir ( IRCT20190901044659N1 ).

Protocol: The protocol was published after trial commencement.

Keywords: Clinical survival; Miniscrew; Orthodontic treatment; Periotest; Visual analog scale.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests.

Figures

Fig. 1
Fig. 1

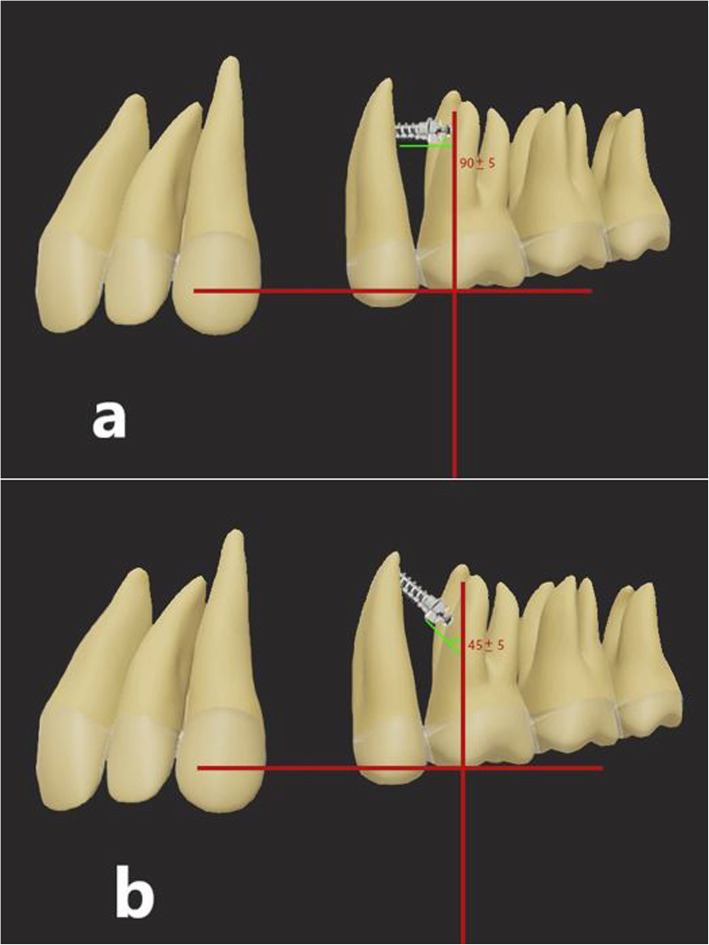

Schematic view of the insertion of miniscrews: a 90° insertion angle, b 45° insertion angle
Fig. 2
Fig. 2
Coronal cross-sectional CBCT image for measuring the insertion angle of miniscrews
Fig. 3
Fig. 3
Periotest was held perpendicular to the longitudinal axis of the miniscrew to evaluate its stability
Fig. 4
Fig. 4

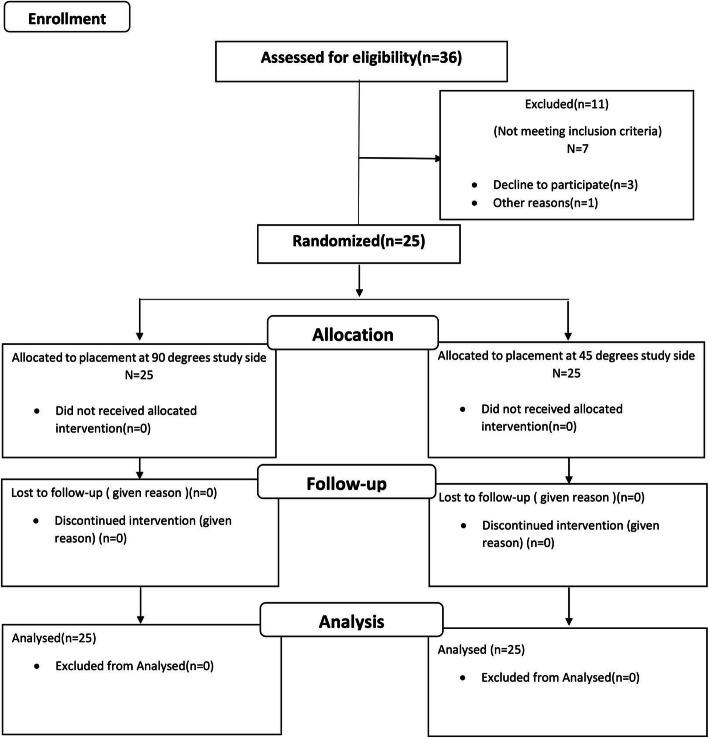

Flow diagram of the study according to the Consolidated Standards of Reporting Trials
See this image and copyright information in PMC

References

    1. Kuroda S, Sugawara Y, Deguchi T, Kyung HM, Takano-Yamamoto T. Clinical use of miniscrew implants as orthodontic anchorage: success rates and postoperative discomfort. Am J Orthod Dentofacial Orthop. 2007;131(1):9–15. doi: 10.1016/j.ajodo.2005.02.032. - DOI - PubMed
    1. Elias CN, de Oliveira Ruellas AC, Fernandes DJ. Orthodontic implants: concepts for the orthodontic practitioner. Int J Dent. 2012;2012:549761. doi: 10.1155/2012/549761. - DOI - PMC - PubMed
    1. Yamaguchi M, Inami T, Ito K, Kasai K, Tanimoto Y. Mini-implants in the anchorage armamentarium: new paradigms in the orthodontics. Int J Biomater. 2012;2012:394121. doi: 10.1155/2012/394121. - DOI - PMC - PubMed
    1. Kılınç DD, Sayar G. Various contemporary intraoral anchorage mechanics supported with temporary anchorage devices. Turk J Orthod. 2016;29(4):109–113. doi: 10.5152/TurkJOrthod.2016.16027. - DOI - PMC - PubMed
    1. Lim HJ, Eun CS, Cho JH, Lee KH, Hwang HS. Factors associated with initial stability of miniscrews for orthodontic treatment. Am J Orthod Dentofacial Orthop. 2009;136(2):236–242. doi: 10.1016/j.ajodo.2007.07.030. - DOI - PubMed
