3D-printed models for periacetabular osteotomy surgical planning

Abstract

The purpose of this study was to determine the feasibility and clinical benefits of using 3D-printed hemipelvis models for periacetabular osteotomy preoperative planning in the treatment of hip dysplasia. This retrospective study included 28 consecutive cases in 26 patients, with two bilateral cases, who underwent periacetabular osteotomy between January 2017 and February 2020 and had routine radiographs, CT and MR imaging. Of these, 14 cases [mean patient age 30.7 (SD 8.4) years, 11 female] had routine preoperative imaging, and 14 cases [mean patient age 28.0 (SD 8.7) years, 13 female] had routine preoperative imaging and creation of a full-scale 3D-printed hemipelvis model from the CT data. The expected surgical cuts were performed on the 3D-printed models. All patients underwent Bernese periacetabular osteotomy. Operative times, including time to achieve proper acetabular position and total periacetabular osteotomy time, fluoroscopy radiation dose and estimated total blood loss were compiled. ANOVA compared outcome variables between the two patient groups, controlling for possible confounders. On average, patients who had additional preoperative planning using the 3D-printed model had a 5.5-min reduction in time to achieve proper acetabular position and a 14.5-min reduction in total periacetabular osteotomy time; however, these changes were not statistically significant (P = 0.526 and 0.151, respectively). No significant difference was identified in fluoroscopy radiation dose or total blood loss. Detailed surgical planning for periacetabular osteotomy using 3D-printed models is feasible using widely available and affordable technology and shows promise to improve surgical efficiency.

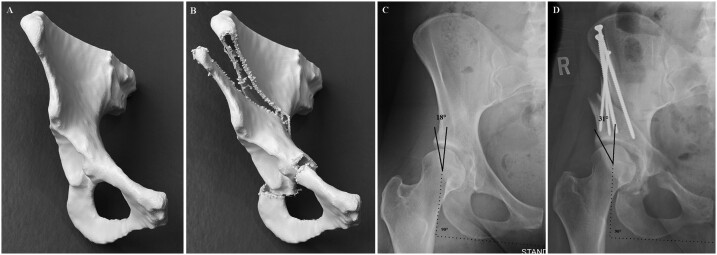

Fig. 1.

A 29-year-old woman with right hip dysplasia undergoing evaluation and PAO. Photographs of the 3D-printed model hemipelvis taken before (A) and after (B) expected PAO cuts (and glue fixation) for preoperative planning. Preoperative (C) and postoperative (D) standing anteroposterior pelvis radiographs show treatment of the dysplastic acetabulum with the lateral central edge angle measuring 18° before surgery and 31° after surgery.
