Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2021 Aug 1;39(4):419-424.
doi: 10.7518/hxkq.2021.04.007.

Self-assembly and mineralization of full-length human amelogenin and its functional fragments in vitro

[Article in English, Chinese]
Xiu Zhong  1   2 , Ting-Ting Lai  1 , Liang Chen  3 , Kun Tian  1   2
Affiliations

Self-assembly and mineralization of full-length human amelogenin and its functional fragments in vitro

[Article in English, Chinese]
Xiu Zhong et al. Hua Xi Kou Qiang Yi Xue Za Zhi. .

Abstract
in English, Chinese

Objectives: To investigate the dynamic process of the self-assembly behaviors of a full-length human amelogenin (AM) and its functional fragments tyrosine-rich amelogenin peptide (TRAP) and leucine-rich amelogenin peptide(LRAP) in vitro and its role in hydroxyapatite (HA) crystal formation.

Methods: The full-length human AM and its functional fragments, TRAP and LRAP, were reassembled and purified in vitro. The protein solution of 100 µg‧mL-1, pH=8, was prepared in Tris-HCl and incubated at room temperature for 1-15 min. Their self-assembly behaviors were observed and compared under a transmission electron microscope (TEM). The full-length AM was added to artificial saliva and incubated for 3 days. A scanning electron microscope (SEM) was used in observing the morphology of the induced new crystals. Then, TARP and LRAP were added. The resulting solution was incubated for 3 days and then observed again.

Results: When pH=8, the full-length human AM and TRAP assembly started spontaneously and formed "nanospheres" after 15 min.The nanospheres formed by TRAP existed independently, with a uniform size but without obvious internal structures. The full-length AM was assembled hierarchically, which formed "nanospheres" and further extended in all directions, formed a chain structure, and then aggregated into a net. The self-assembly behavior of LRAP was not obvious. Proteins mostly existed in the form of monomers without "nanosphere" formation. Only few oligomers were observed. The full-length AM was induced independently for 3 days to form rod-shaped HA crystals. TRAP and LRAP proteins were added, after 3 days the crystal elongation was obvious in the c axis, but the growth in plane A and plane B was poor.

Conclusions: The self-assembly and mineralization behaviors of full-length human AM, TRAP, and LRAP were consistent with the directional growth mechanism of HA crystals in vivo, providing a theoretical basis for the role of the fragments in the growth and maturation of HA crystals.

目的: 探讨人釉原蛋白（AM）全长及其N端酪氨酸富集段（TRAP）、C端亮氨酸富集段（LRAP）体外自组装的动态过程及其在羟磷灰石（HA）晶体形成中的作用。方法: 体外重组、纯化人AM全长及其功能片段TRAP、LRAP，在三氨基甲烷（Tris-HCl）中配制成100 μg·mL-1、pH=8的蛋白溶液，室温孵育1~15 min，透射电镜（TEM）下观察比较AM全长、TARP和LRAP的自组装行为；在人工唾液中加入AM全长孵育3 d，扫描电镜（SEM）观察诱导形成的新生晶体形貌，继续加入TARP和LRAP孵育3 d后再次观察。结果: pH为8时，人AM全长及TRAP自发启动组装，15 min后均可形成“纳米球”结构，其中TRAP形成的“纳米球”孤立存在，大小均匀，没有明显内部结构；而AM全长分级组装，形成“纳米球”后进一步各向延伸趋势，形成链状结构，随后聚集成网；LRAP的自组装行为不明显，蛋白多以单体形式存在，无“纳米球”生成，仅可见少量低聚物。AM全长诱导3 d后形成棒状HA晶体，加入TRAP和LRAP蛋白继续诱导3 d后晶体在c轴明显伸长，而a、b平面生长欠佳。结论: 人AM全长、TRAP和LRAP的自组装和矿化行为与体内HA晶体定向生长的机制契合，为它们在HA晶体生长、成熟过程中的作用提供了理论依据。.

Keywords: human amelogenin; leucine-rich amelogenin peptide; mineralization in vitro; self-assembly; tyrosine-rich amelogenin peptide.

PubMed Disclaimer

Conflict of interest statement

利益冲突声明：作者声明本文无利益冲突。

Figures

图 1
图 1. AM全长及LRAP、TRAP基因的重组
Fig 1 Recombination of AM, LRAP and TRAP genes 左：PCR扩增的AM基因，M为Marker，1为AM基因；右：PCR扩增的LRAP、TRAP基因，M为Marker，1为TRAP基因，2为LRAP基因。
图 2
图 2. AM全长及LRAP、TRAP的SDS-PAGE图谱
Fig 2 SDS-PAGE of AM, LRAP and TRAP M为Marker，1~3依次为LRAP、TRAP和AM目的蛋白。箭头所示为蛋白目的片段。
图 3
图 3. AM全长自组装的观察结果
Fig 3 Micrographs of full-length AM self-assembly 上：分别为AM自组装1、15 min TEM ×500 000；下：AM自组装中间结构特写 TEM ×1 200 000。
图 4
图 4. LRAP自组装的观察结果 TEM × 500 000
Fig 4 Micrographs of LRAP self-assembly TEM × 500 000 左：LRAP自组装1 min；右：LRAP自组装15 min。
图 5
图 5. TRAP自组装的观察结果
Fig 5 Micrographs of TRAP self-assembly 上：分别为TRAP自组装1、15 min TEM × 350 000；下：TRAP纳米球特写 TEM × 1 750 000。
图 6

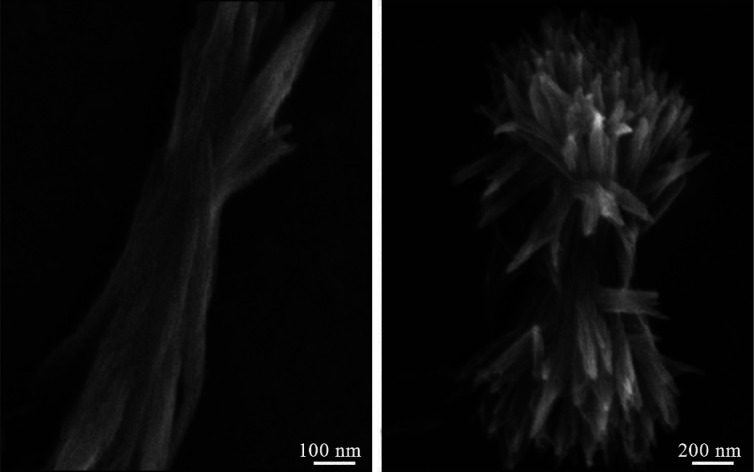

图 6. 不同时间点加入相应蛋白诱导生成的晶体
Fig 6 The crystals induced by the corresponding proteins were added at different time 左：AM在玻片上矿化3 d SEM × 80 000；右：加入LRAP、TRAP继续矿化3 d SEM × 40 000。
图 7
图 7. 新生晶体的X射线衍射图
Fig 7 XRD pattern of the newborn crystal
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Ali S, Farooq I. A review of the role of amelogenin protein in enamel formation and novel experimental techniques to study its function[J] Protein Pept Lett. 2019;26(12):880–886. - PubMed
    1. Moradian-Oldak J. Protein-mediated enamel mineralization[J] Front Biosci. 2012;17:1996–2023. - PMC - PubMed
    1. Sire JY, Delgado S, Fromentin D, et al. Amelogenin: lessons from evolution[J] Arch Oral Biol. 2005;50(2):205–212. - PubMed
    1. Ruan Q, Moradian-Oldak J. Amelogenin and enamel biomimetics[J] J Mater Chem B. 2015;3:3112–3129. - PMC - PubMed
    1. Sun Z, Fan D, Fan Y, et al. Enamel proteases reduce amelogenin-apatite binding[J] J Dent Res. 2008;87(12):1133–1137. - PMC - PubMed

LinkOut - more resources
