. 2021 Dec 6;27(68):16904-16911.
doi: 10.1002/chem.202102032. Epub 2021 Sep 23.

Photoinduced Water Oxidation in Chitosan Nanostructures Containing Covalently Linked RuII Chromophores and Encapsulated Iridium Oxide Nanoparticles

Giuseppina La Ganga  1 , Fausto Puntoriero  1 , Enza Fazio  2 , Mirco Natali  3 , Francesco Nastasi  1 , Antonio Santoro  1 , Maurilio Galletta  1 , Sebastiano Campagna  1
Affiliations

Photoinduced Water Oxidation in Chitosan Nanostructures Containing Covalently Linked RuII Chromophores and Encapsulated Iridium Oxide Nanoparticles

Giuseppina La Ganga et al. Chemistry. .

Abstract

The luminophore Ru(bpy)2 (dcbpy)2+ (bpy=2,2'-bipyridine; dcbpy=4,4'-dicarboxy-2,2'-bipyridine) is covalently linked to a chitosan polymer; crosslinking by tripolyphosphate produced Ru-decorated chitosan fibers (NS-RuCh), with a 20 : 1 ratio between chitosan repeating units and RuII chromophores. The properties of the RuII compound are unperturbed by the chitosan structure, with NS-RuCh exhibiting the typical metal-to-ligand charge-transfer (MLCT) absorption and emission bands of RuII complexes. When crosslinks are made in the presence of IrO2 nanoparticles, such species are encapsulated within the nanofibers, thus generating the IrO2 ⊂NS-RuCh system, in which both RuII photosensitizers and IrO2 water oxidation catalysts are within the nanofiber structures. NS-RuCh and IrO2 ⊂NS-RuCh have been characterized by dynamic light scattering, scanning electronic microscopy, and energy-dispersive X-ray analysis, which indicated a 2 : 1 ratio between RuII chromophores and IrO2 species. Photochemical water oxidation has been investigated by using IrO2 ⊂NS-RuCh as the chromophore/catalyst assembly and persulfate anions as the sacrificial species: photochemical water oxidation yields O2 with a quantum yield (Φ) of 0.21, definitely higher than the Φ obtained with a similar solution containing separated Ru(bpy)3 2+ and IrO2 nanoparticles (0.05) or with respect to that obtained when using NS-RuCh and "free" IrO2 nanoparticles (0.10). A fast hole-scavenging process (rate constant, 7×104 s-1 ) involving the oxidized photosensitizer and the IrO2 catalyst within the IrO2 ⊂NS-RuCh system is behind the improved photochemical quantum yield of IrO2 ⊂NS-RuCh.

Keywords: artificial photosynthesis; electron transfer; photochemical water oxidation; photochemistry; ruthenium.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

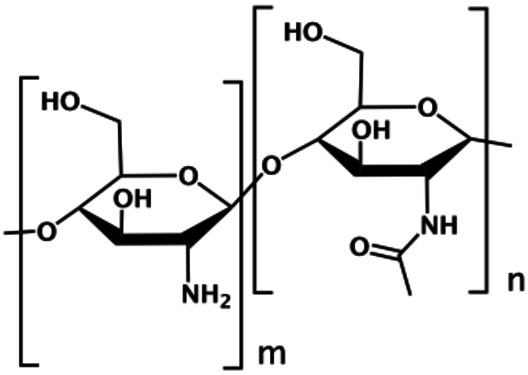

Representation of a chitosan repetitive unit.
Scheme 1
Scheme 1
Schematic representation of the synthesis of RuCh. Inset: Photo of RuCh powder under UV light.
Figure 2
Figure 2
1H NMR spectrum of RuCh in D2O (CD3COOD, 1 % v/v). The 1H NMR spectrum of low‐molecular‐weight chitosan in D2O (CD3COOD, 1 % v/v) is shown in the inset. Spectra were recorded at 40 °C.
Scheme 2
Scheme 2
A cartoon representation of NS‐RuCh synthesis by using the RuCh polymer.
Figure 3
Figure 3
Absorption and emission spectra of NS‐RuCh in phosphate buffer (20 mM, pH 7).
Figure 4
Figure 4
DLS analysis of IrO2 nanoparticles (blue), NS‐RuCh (orange) and IrO2⊂NS‐RuCh (green). Note that the x‐axis is drawn on a logarithmic scale.
Figure 5
Figure 5
SEM analysis of IrO2⊂NS−Ru at different scales.
Figure 6
Figure 6
Absorption spectra of NS‐RuCh (solid line) and IrO2⊂NS‐RuCh (dashed line) in phosphate buffer (20 mM, pH 7). The inset shows a zoomed area (500–800 nm) of the spectra.
Figure 7
Figure 7
Oxygen evolution in the IrO2⊂NS−Ru/Na2S2O8 (red) and NS‐RuCh/IrO2/Na2S2O8 systems (black).
Figure 8
Figure 8
Flash photolysis experiments: λ ex=355 nm; Na2S2O8 (1×10−2 M). IrO2⊂NS−Ru (red) and NS‐RuCh/IrO2 (5×10−5) systems (black).
See this image and copyright information in PMC

References

    1. The literature on this topic is too vast to be exhaustively quoted. For recent books and reviews, see:
    1. Armaroli N., Balzani V., Serpone N., Powering Planet Earth Energy Solutions for the Future, Wiley-VCH, Weinheim, 2013;
    1. Gray H. B., Nat. Chem. 2009, 1, 7; - PubMed
    1. Founce T., Styring S., Wasielewski M. R., Brudvig G. R., Rutherford A. W., Messinger J., Lee A. F., Hill C. L., deGroot H., Fontecave M., MacFarlane D. R., Hankamer B., Nocera D., Tiede D. M., Dau H., Hillier W., Wand L., Amal R., Energy Environ. Sci. 2013, 6, 1074–1076;
    1. Meyer T. J., Sheridan M. V., Sheridan B. D., Chem. Soc. Rev. 2017, 46, 6148–616, and refs. therein; - PubMed
