. 2022 Feb;69(2):894-898.
doi: 10.1109/TBME.2021.3108720. Epub 2022 Jan 20.

Three-Dimensional Carpal Arch Morphology Using Robot-Assisted Ultrasonography

Rakshit Shah, Zong-Ming Li

Three-Dimensional Carpal Arch Morphology Using Robot-Assisted Ultrasonography

Rakshit Shah et al. IEEE Trans Biomed Eng. 2022 Feb.

Abstract

Objective: The morphology of the carpal arch implicates the available space for the median nerve within the carpal tunnel. The purposes of this study were to 1) reconstruct the three-dimensional (3D) carpal arch by robot-assisted ultrasonography with a linear array transducer using cadaveric hands, and 2) investigate the 3D morphological properties of the carpal arch.

Methods: An ultrasound probe with two-dimensional (2D) linear array was integrated on a robotic arm and maneuvered over the cadaveric carpal tunnels to scan the entire transverse carpal ligament and its osseous attachments to carpal bones. The acquired series of 2D ultrasound images together with robot positioning were utilized to reconstruct the 3D carpal arch for morphometric analyses.

Results: Total carpal arch volume was 1099.4 ± 163.2 mm3 with the distal, middle, and proximal regions contributing 18.2 ± 1.5%, 32.7 ± 1.2%, and 49.1 ± 2.3%, respectively. The ligament surface area was 420.1 ± 63.9 mm2. The carpal arch width, height, curvature, length, area, and palmar bowing index progressively increased from the distal to proximal locations within the tunnel (p < 0.01).

Conclusion: The incorporation of the robot technology with the ultrasound system advanced the applications of traditional 2D ultrasound imaging for a 3D carpal arch reconstruction, allowing for comprehensive morphological assessment of the carpal arch.

Significance: The developed workflow can be used for the reconstruction and analysis of other anatomical features in vivo.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
Experimental setup for robot-assisted ultrasound imaging of cadaveric hands
Fig. 2.
Fig. 2.
Representative ultrasound cross-sectional images (A) and 3D reconstruction of the carpal arch and bone landmarks (B). H = hook of hamate, T = ridge of trapezium, S = tubercle of scaphoid, and P = tubercle of pisiform

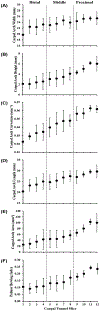

Fig. 3.
Fig. 3.
Carpal arch morphometric parameters from distal to proximal slices of the tunnel. (A) Carpal Arch Width, (B) Carpal Arch Height, (C) Carpal Arch Curvature, (D) Carpal Arch Length, (E) Carpal Arch Area, and (F) Palmar Bowing Index.
See this image and copyright information in PMC

References

    1. Ghasemi-rad M, “A handy review of carpal tunnel syndrome: From anatomy to diagnosis and treatment,” World J. Radiol, vol. 6, no. 6, p. 284, 2014, doi: 10.4329/wjr.v6.i6.284. - DOI - PMC - PubMed
    1. Horch RE, Allmann KH, Laubenberger J, Langer M, and Stark GB, “Median Nerve Compression Can Be Detected by Magnetic Resonance Imaging of the Carpal Tunnel,” Neurosurgery, vol. 41, no. 1, pp. 76–83, Jul. 1997, doi: 10.1097/00006123-199707000-00016. - DOI - PubMed
    1. Lin R, Lin E, Engel J, and Bubis JJ, “Histo-mechanical aspects of carpal tunnel syndrome,” Hand, vol. 15, no. 3, pp. 305–309, 1983, doi: 10.1097/00006534-198509000-00058. - DOI - PubMed
    1. Li ZM, “Gender difference in carpal tunnel compliance,” J. Musculoskelet. Res, vol. 9, no. 3, pp. 153–159, 2005, doi: 10.1142/S0218957705001527. - DOI
    1. Pacek CA, Tang J, Goitz RJ, Kaufmann RA, and Li Z-M, “Morphological Analysis of the Carpal Tunnel,” HAND, vol. 5, no. 1, pp. 77–81, Mar. 2010, doi: 10.1007/s11552-009-9220-9. - DOI - PMC - PubMed
