. 2020 Jul 2;6(7):62.
doi: 10.3390/jimaging6070062.

MH-MetroNet-A Multi-Head CNN for Passenger-Crowd Attendance Estimation

Pier Luigi Mazzeo  1 , Riccardo Contino  1 , Paolo Spagnolo  1 , Cosimo Distante  1 , Ettore Stella  2 , Massimiliano Nitti  2 , Vito Renò  2
Affiliations

MH-MetroNet-A Multi-Head CNN for Passenger-Crowd Attendance Estimation

Pier Luigi Mazzeo et al. J Imaging. .

Abstract

Knowing an accurate passengers attendance estimation on each metro car contributes to the safely coordination and sorting the crowd-passenger in each metro station. In this work we propose a multi-head Convolutional Neural Network (CNN) architecture trained to infer an estimation of passenger attendance in a metro car. The proposed network architecture consists of two main parts: a convolutional backbone, which extracts features over the whole input image, and a multi-head layers able to estimate a density map, needed to predict the number of people within the crowd image. The network performance is first evaluated on publicly available crowd counting datasets, including the ShanghaiTech part_A, ShanghaiTech part_B and UCF_CC_50, and then trained and tested on our dataset acquired in subway cars in Italy. In both cases a comparison is made against the most relevant and latest state of the art crowd counting architectures, showing that our proposed MH-MetroNet architecture outperforms in terms of Mean Absolute Error (MAE) and Mean Square Error (MSE) and passenger-crowd people number prediction.

Keywords: artificial intelligence; convolutional neural network; crowd counting; multi-head; smart cities.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

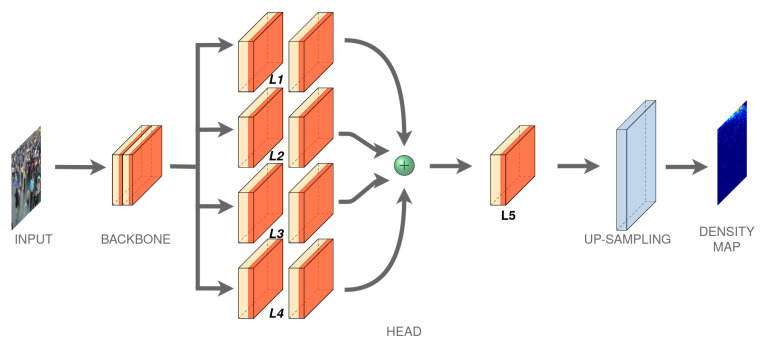

Proposed MH-MetroNet architecture.
Figure 2
Figure 2
UCF_CC_50 crowd images [12].
Figure 3
Figure 3
ShanghaiTech part A crowd images [14].
Figure 4
Figure 4
ShanghaiTech part B crowd images [14].
Figure 5
Figure 5
Subway cars passenger-crowd images.
Figure 6
Figure 6

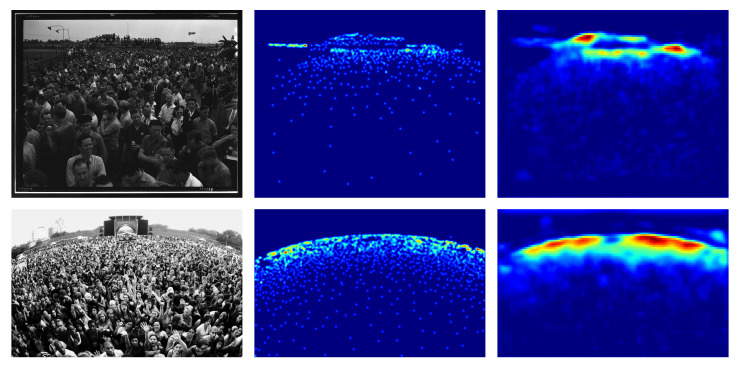

UCF_CC_50 density map estimation examples, (Left) the crowd image, (Center) ground-truth density map, (Right) estimated density map.
Figure 7
Figure 7

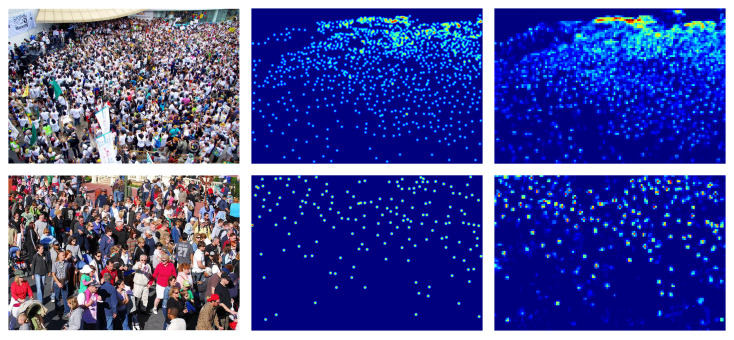

ShanghaiTech part A density map estimation examples. Left the crowd image, middle ground-truth density map, right estimated density map.

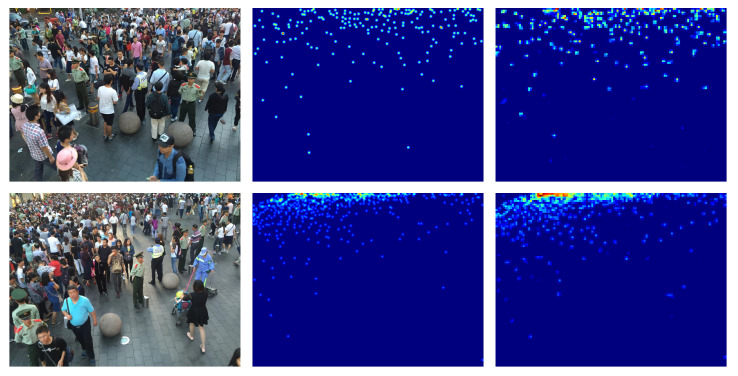

Figure 8
Figure 8
ShanghaiTech part B density map estimation examples. Left the crowd image, middle ground-truth density map, right estimated density map.
Figure 9
Figure 9

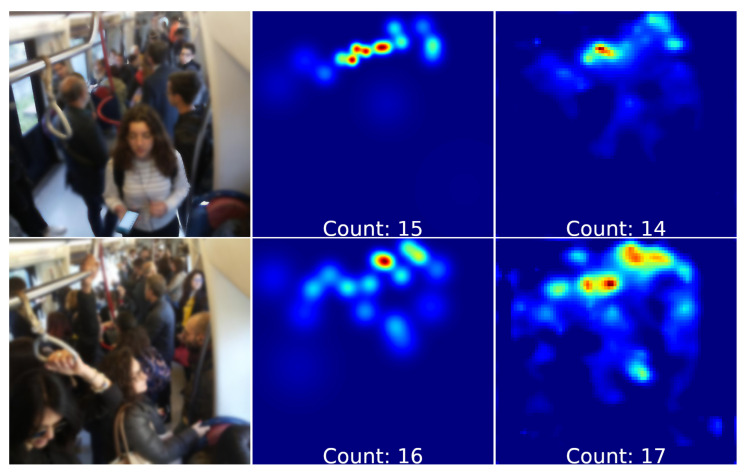

Subway cars dataset density map estimation examples:(Left) the crowd image, (center) ground-truth density map, (right) estimated density map (with passengers count).
