Design and Implementation of a Wireless Medical Robot for Communication Within Hazardous Environments

Abstract

The huge spreading of COVID-19 viral outbreak to several countries motivates many of the research institutions everywhere in numerous disciplines to try decreasing the spread rate of this pandemic. Among these researches are the robotics with different payloads and sensory devices with wireless communications to remotely track patients' diagnosis and their treatment. That is, it reduces direct contact between the patients and the medical team members. Thus, this paper is devoted to design and implement a prototype of wireless medical robot (MR) that can communicate between patients and medical consultants. The prototype includes the modelling of a four-wheeled MR using systems' identification methodology, from which the model is utilized in control design and analysis. The required controller is designed using the proportional-integral-derivative (PID) and Fuzzy logic (FLC) techniques. The MR is equipped onboard with some medical sensors and a camera to acquire vital signs and physical parameters of patients. The MR model is obtained via an experimental test with input/output signals in open-loop configuration as single-input-single-output from which the estimation and validation results demonstrate that the identified model possess about 89% of the output variation/dynamics. This model is used for controllers' design with PID and FLC, the response of which is good for heading angle tracking. Concerning the medical measurements, more than two thousand real recorded Photo-plethysmography (PPG) signals and Blood Pressure (BP) are used to find the appropriate BP estimation model. Towards this objective, some experiments are designed and conducted to measure the PPG signal. Finally, the BP is estimated with mean absolute error of about 4.7 mmHg in systolic and 4.8 mmHg in diastolic using Artificial Neural Network.

Keywords: Heading angle tracking; Infection guard; Telemedicine; Wireless communications.

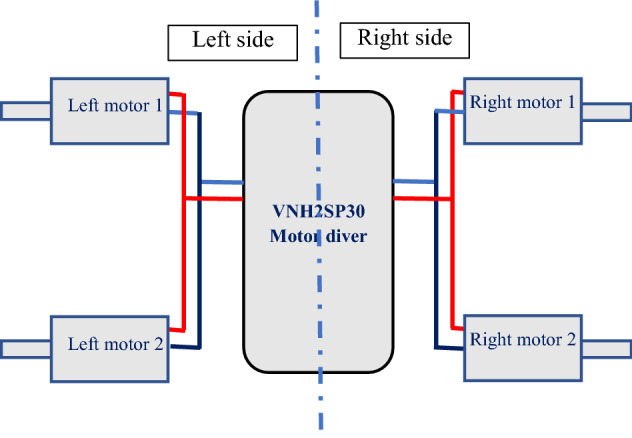

Fig. 1

The power contribution for robots’ motors

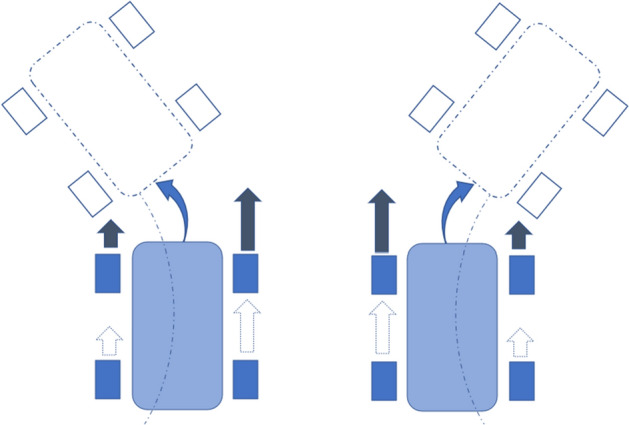

Fig. 2

The differential steering velocity

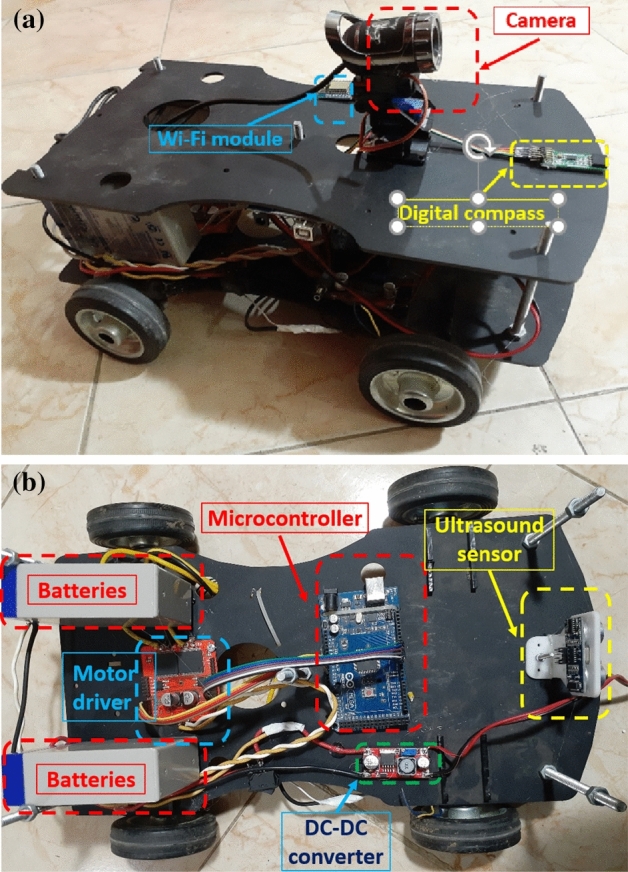

Fig. 3

a The four wheeled wireless medical robot system; b robot hardware components

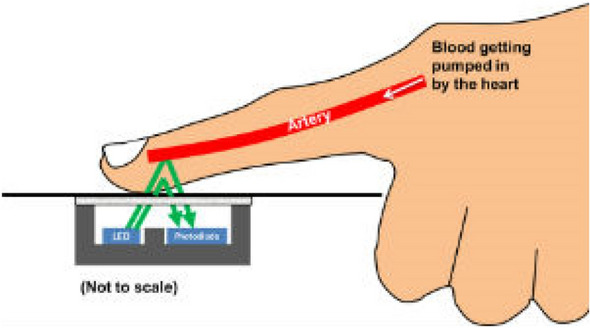

Fig. 4

The principle of optical HR

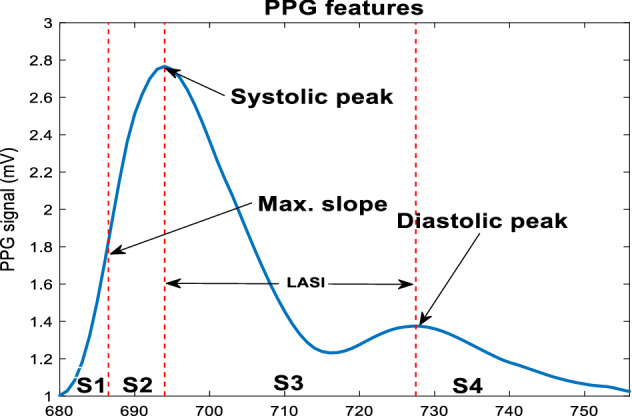

Fig. 5

Extracted features from PPG signals

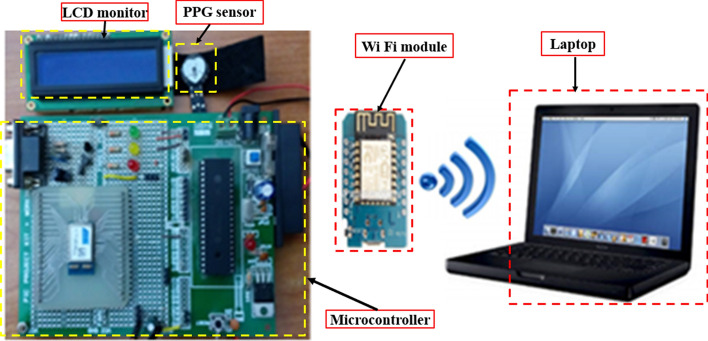

Fig. 6

Real-time PPG monitoring

Fig. 7

System identification algorithm

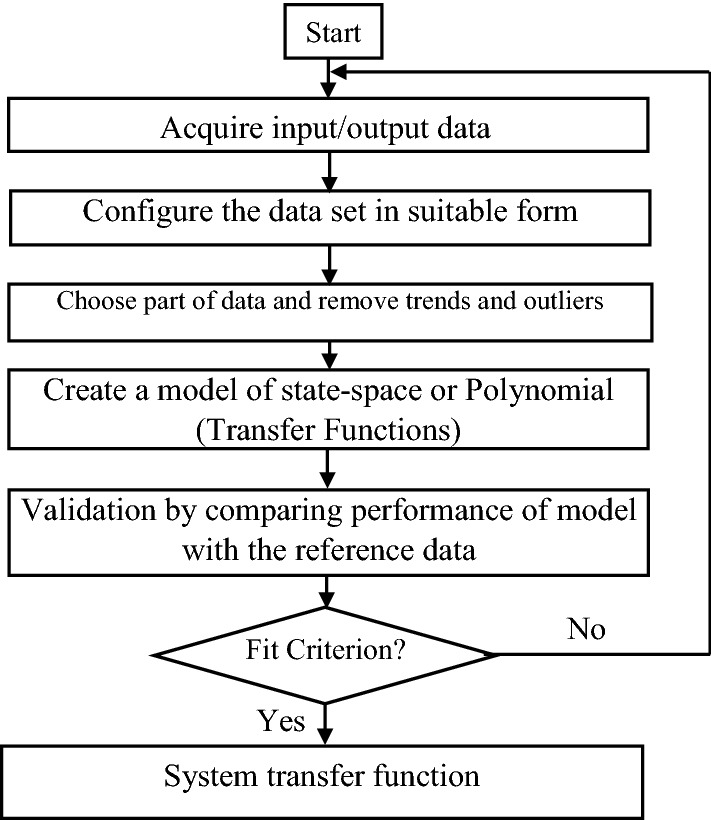

Fig. 8

SI data set implementation

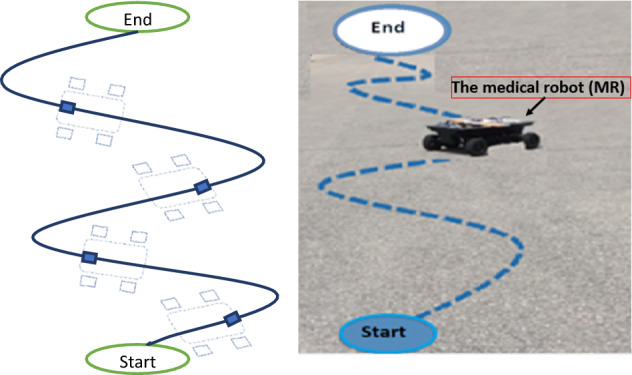

Fig. 9

Experimental setup of the road test robot

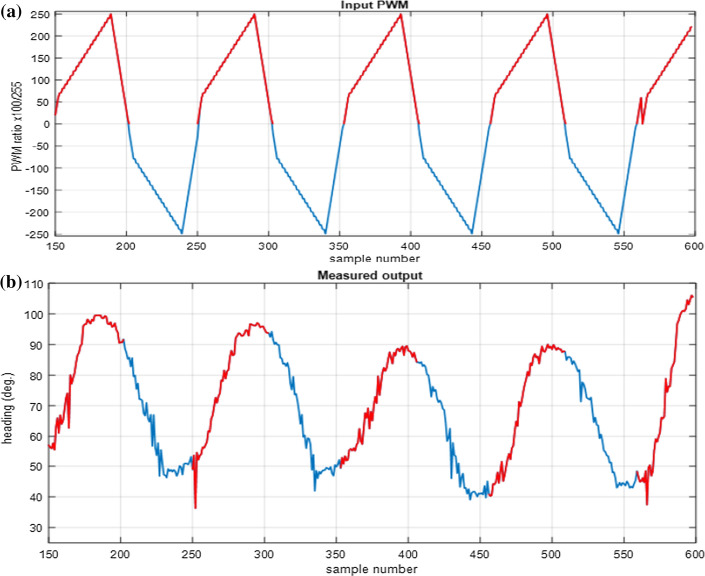

Fig. 10

Measured input–output signal of left channel (blue color) and right channel (red color); a input and b output

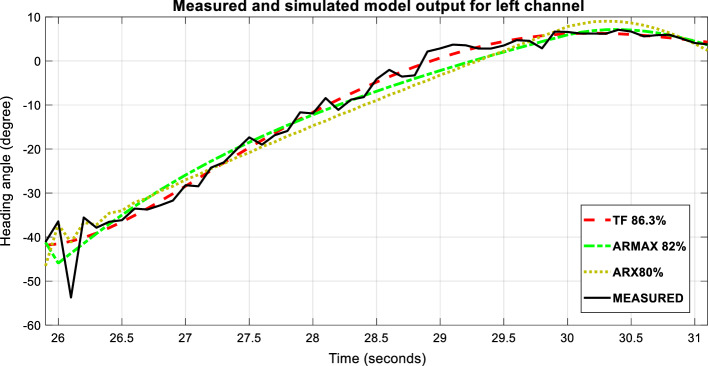

Fig. 11

Left side estimated TF for 3rd validation interval using several methods

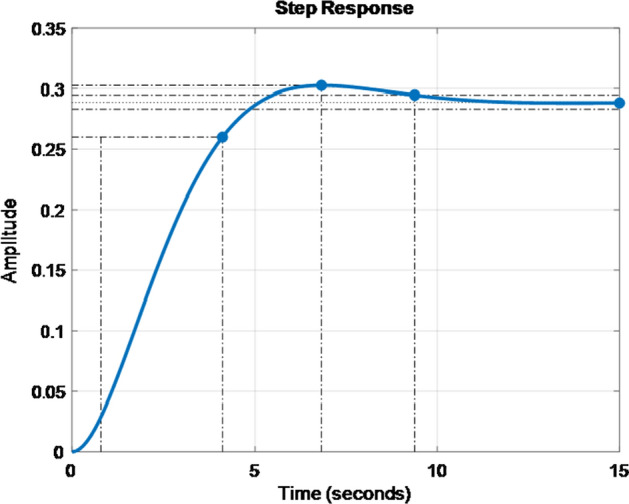

Fig. 12

Step response of the identified left side transfer function

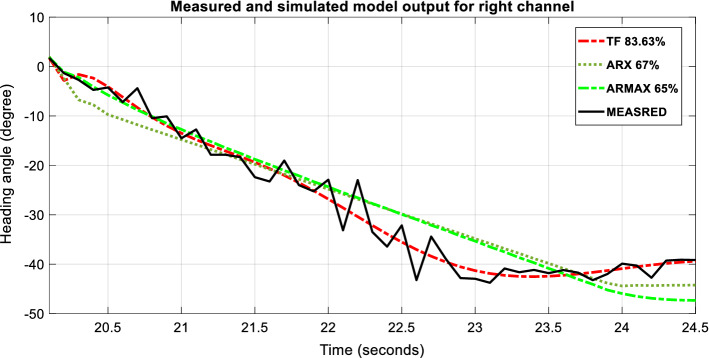

Fig. 13

Right-side estimated TF for 3rd validation interval by using several methods

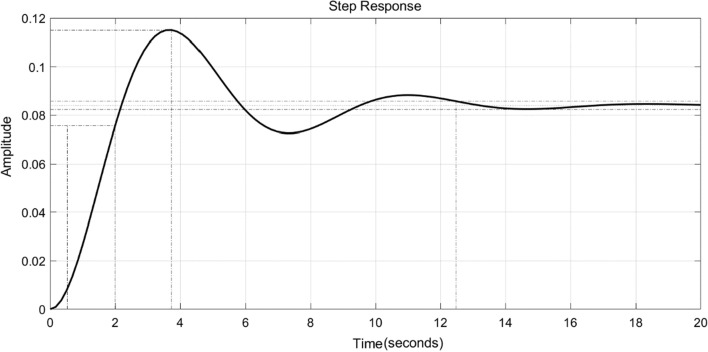

Fig. 14

Step response of the identified right-side transfer function

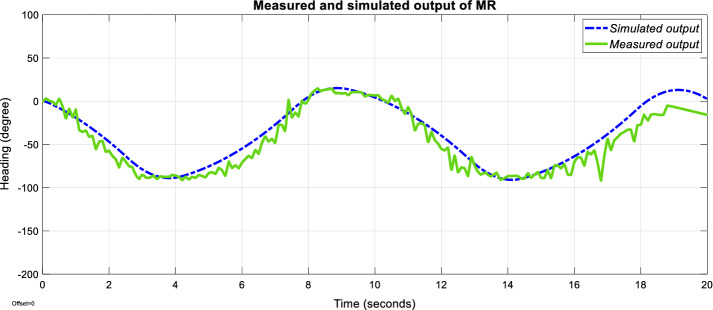

Fig. 15

The total output of the MR

Fig. 16

Heading angle control block diagram

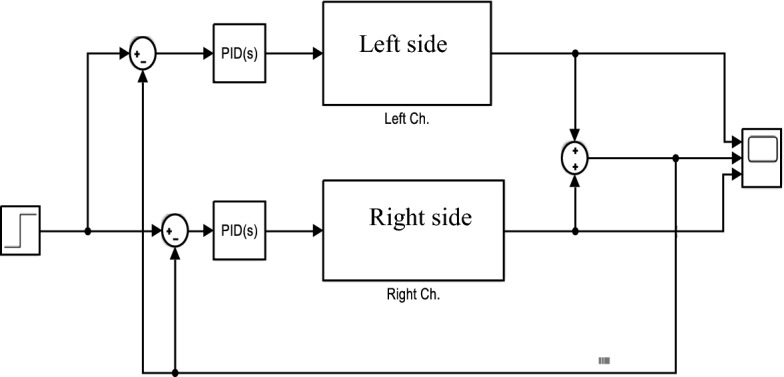

Fig. 17

SIMULINK diagram for heading angle with PID controller

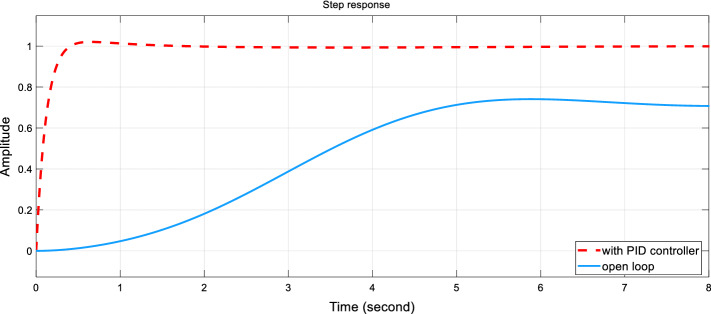

Fig. 18

Closed- and open-loop step responses with PID controller

Fig. 19

Simulink diagram for heading angle with FL controller

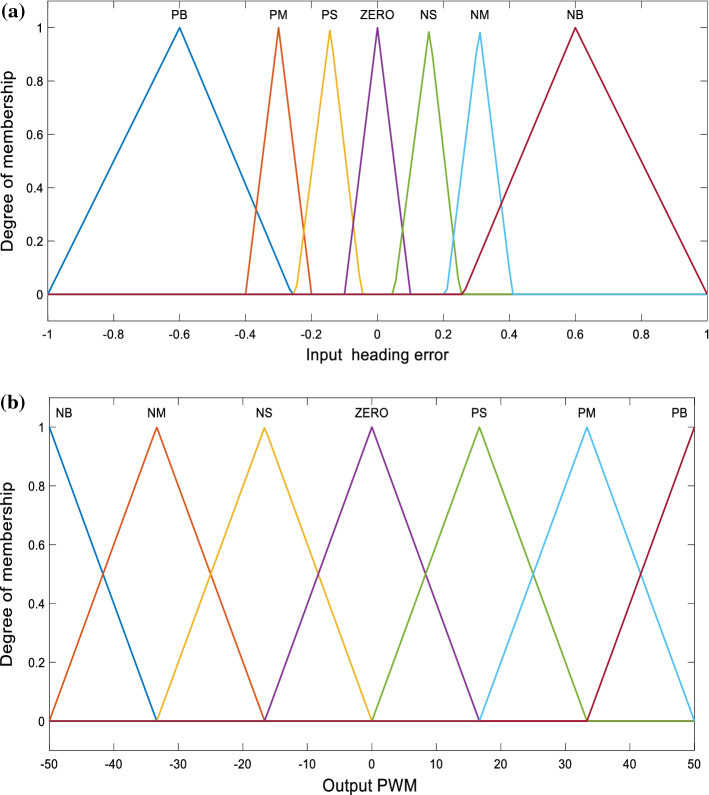

Fig. 20

a Fuzzy membership function for the input heading angle. b: Fuzzy output membership function

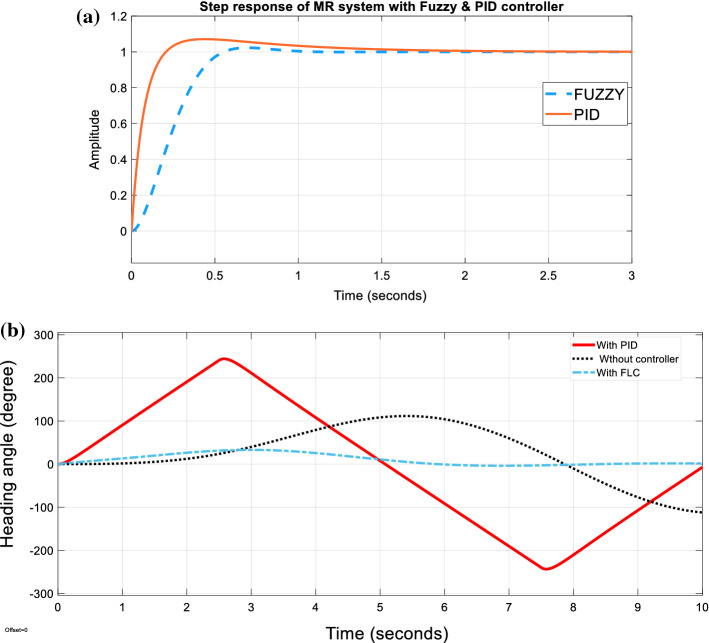

Fig. 21

a Step response of MR system with FLC and PID controllers. b: Heading angle tracking with controllers

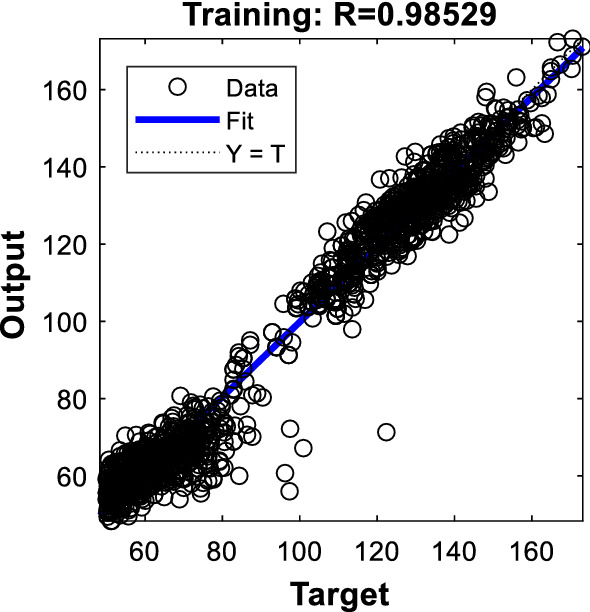

Fig. 22

Results of the regression model
