. 2022 Feb;49(3):992-1001.
doi: 10.1007/s00259-021-05502-0. Epub 2021 Sep 3.

Comparison of nodal staging between CT, MRI, and [18F]-FDG PET/MRI in patients with newly diagnosed breast cancer

Janna Morawitz  1 , Nils-Martin Bruckmann  2 , Frederic Dietzel  2 , Tim Ullrich  2 , Ann-Kathrin Bittner  3 , Oliver Hoffmann  3 , Eugen Ruckhäberle  4 , Svjetlana Mohrmann  4 , Lena Häberle  5 , Marc Ingenwerth  6 , Daniel Benjamin Abrar  2 , Lino Morris Sawicki  2 , Katharina Breuckmann  7 , Wolfgang Peter Fendler  8 , Ken Herrmann  8 , Christian Buchbender  2 , Gerald Antoch  2 , Lale Umutlu  7 , Julian Kirchner  2
Affiliations

Comparison of nodal staging between CT, MRI, and [18F]-FDG PET/MRI in patients with newly diagnosed breast cancer

Janna Morawitz et al. Eur J Nucl Med Mol Imaging. 2022 Feb.

Abstract

Purpose: To compare CT, MRI, and [18F]-fluorodeoxyglucose positron emission tomography ([18F]-FDG PET/MRI) for nodal status, regarding quantity and location of metastatic locoregional lymph nodes in patients with newly diagnosed breast cancer.

Materials and methods: One hundred eighty-two patients (mean age 52.7 ± 11.9 years) were included in this prospective double-center study. Patients underwent dedicated contrast-enhanced chest/abdomen/pelvis computed tomography (CT) and whole-body ([18F]-FDG PET/) magnet resonance imaging (MRI). Thoracal datasets were evaluated separately regarding quantity, lymph node station (axillary levels I-III, supraclavicular, internal mammary chain), and lesion character (benign vs. malign). Histopathology served as reference standard for patient-based analysis. Patient-based and lesion-based analyses were compared by a McNemar test. Sensitivity, specificity, positive and negative predictive values, and accuracy were assessed for all three imaging modalities.

Results: On a patient-based analysis, PET/MRI correctly detected significantly more nodal positive patients than MRI (p < 0.0001) and CT (p < 0.0001). No statistically significant difference was seen between CT and MRI. PET/MRI detected 193 lesions in 75 patients (41.2%), while MRI detected 123 lesions in 56 patients (30.8%) and CT detected 104 lesions in 50 patients, respectively. Differences were statistically significant on a lesion-based analysis (PET/MRI vs. MRI, p < 0.0001; PET/MRI vs. CT, p < 0.0001; MRI vs. CT, p = 0.015). Subgroup analysis for different lymph node stations showed that PET/MRI detected significantly more lymph node metastases than MRI and CT in each location (axillary levels I-III, supraclavicular, mammary internal chain). MRI was superior to CT only in axillary level I (p = 0.0291).

Conclusion: [18F]-FDG PET/MRI outperforms CT or MRI in detecting nodal involvement on a patient-based analysis and on a lesion-based analysis. Furthermore, PET/MRI was superior to CT or MRI in detecting lymph node metastases in all lymph node stations. Of all the tested imaging modalities, PET/MRI showed the highest sensitivity, whereas CT showed the lowest sensitivity, but was most specific.

Keywords: Breast cancer; Nodal staging; PET/MR.

PubMed Disclaimer

Conflict of interest statement

Wolfgang P. Fendler was a consultant for BTG, and he received fees from RadioMedix, Bayer, and Parexel outside of the submitted work. No other potential conflicts of interest relevant to this article exist.

Figures

Fig. 1
Fig. 1

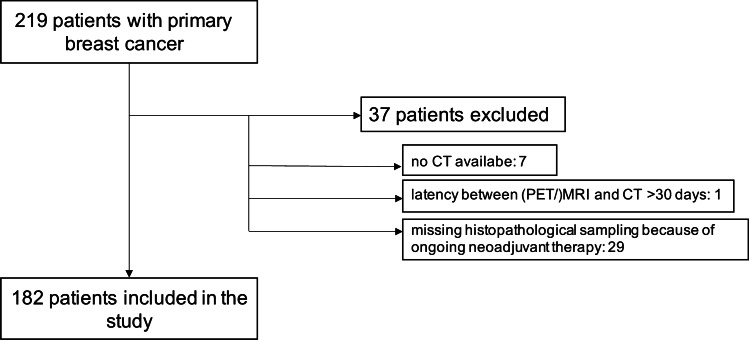

Patient flow diagram
Fig. 2
Fig. 2

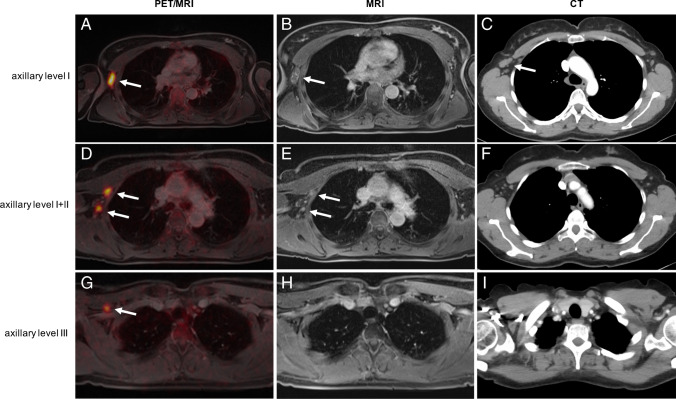

Lymph node metastases (white arrows) detected in different imaging modalities. A–C Lymph node metastasis in axillary level I detected in PET/MRI (A), MRI (B), and CT (C). D–F Lymph node metastases in axillary levels I and II detected in PET/MRI (D) and MRI (E), but not in CT (F). G–I Lymph node metastasis in axillary level III detected in PET/MRI (G), but not in MRI (H) and CT (I)
See this image and copyright information in PMC

References

    1. WHO. International Agency for Research on Cancer. World Health Organization - cancer today. In: Organization. IAfRoCWH, editor.; 2021
    1. Cianfrocca M, Goldstein LJ. Prognostic and predictive factors in early-stage breast cancer. Oncologist. 2004;9:606–616. doi: 10.1634/theoncologist.9-6-606. - DOI - PubMed
    1. Soerjomataram I, Louwman MW, Ribot JG, Roukema JA, Coebergh JW. An overview of prognostic factors for long-term survivors of breast cancer. Breast Cancer Res Treat. 2008;107:309–330. doi: 10.1007/s10549-007-9556-1. - DOI - PMC - PubMed
    1. Krishnamurthy S. Current applications and future prospects of fine-needle aspiration biopsy of locoregional lymph nodes in the management of breast cancer. Cancer. 2009;117:451–462. doi: 10.1002/cncy.20055. - DOI - PubMed
    1. Blumgart EI, Uren RF, Nielsen PM, Nash MP, Reynolds HM. Predicting lymphatic drainage patterns and primary tumour location in patients with breast cancer. Breast Cancer Res Treat. 2011;130:699–705. doi: 10.1007/s10549-011-1737-2. - DOI - PubMed
