COVID-19 impact on global maritime mobility

Abstract

To prevent the outbreak of the Coronavirus disease (COVID-19), many countries around the world went into lockdown and imposed unprecedented containment measures. These restrictions progressively produced changes to social behavior and global mobility patterns, evidently disrupting social and economic activities. Here, using maritime traffic data collected via a global network of Automatic Identification System (AIS) receivers, we analyze the effects that the COVID-19 pandemic and containment measures had on the shipping industry, which accounts alone for more than 80% of the world trade. We rely on multiple data-driven maritime mobility indexes to quantitatively assess ship mobility in a given unit of time. The mobility analysis here presented has a worldwide extent and is based on the computation of: Cumulative Navigated Miles (CNM) of all ships reporting their position and navigational status via AIS, number of active and idle ships, and fleet average speed. To highlight significant changes in shipping routes and operational patterns, we also compute and compare global and local vessel density maps. We compare 2020 mobility levels to those of previous years assuming that an unchanged growth rate would have been achieved, if not for COVID-19. Following the outbreak, we find an unprecedented drop in maritime mobility, across all categories of commercial shipping. With few exceptions, a generally reduced activity is observable from March to June 2020, when the most severe restrictions were in force. We quantify a variation of mobility between -5.62 and -13.77% for container ships, between +2.28 and -3.32% for dry bulk, between -0.22 and -9.27% for wet bulk, and between -19.57 and -42.77% for passenger traffic. The presented study is unprecedented for the uniqueness and completeness of the employed AIS dataset, which comprises a trillion AIS messages broadcast worldwide by 50,000 ships, a figure that closely parallels the documented size of the world merchant fleet.

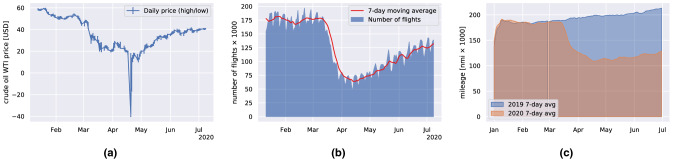

Figure 1

(a) Crude oil WTI price from January to July 2020. Note the sudden and unprecedented negative price in April 2020. (b) Total number of flights tracked by FlightRadar24 from January to July 2020. At the end of March there was an abrupt decrease of the number of flights ($\sim$ 100,000 units) because of the lockdown restrictions. (c) Daily navigated miles by passenger ships in 2020 compared with 2019.

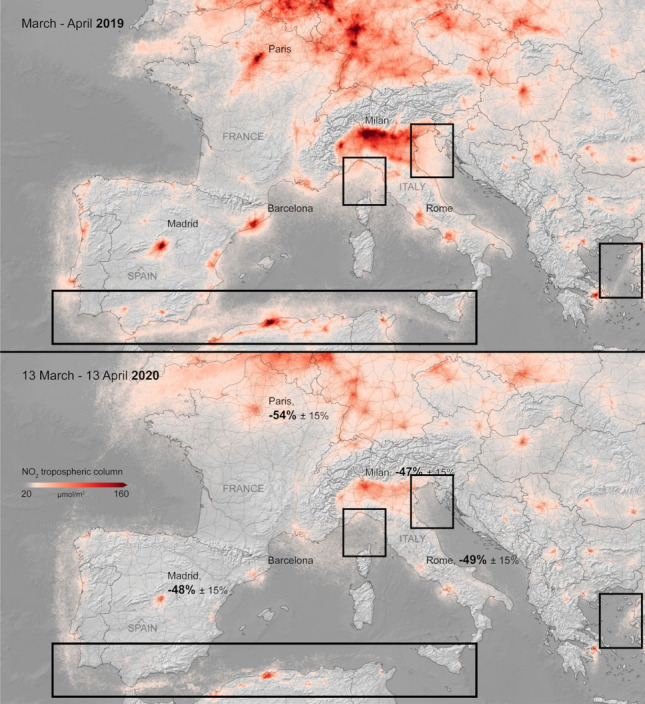

Figure 2

Average nitrogen dioxide (NO₂) concentrations from 13 March to 13 April 2020, compared to the same period in 2019. The decrease of emission is evident, around −50% in large European cities (Rome, Paris, Madrid and Milan). Highlighted with boxes there are regions of sea where it is evident a decrease of nitrogen dioxide concentrations, probably due to the reduced shipping activity. WHO air quality guideline values quantify in $40\mathrm{\mu }\text{g}{\text{m}}^{-3}$ (annual mean) the NO₂ limit level for human health. Reproduced with permission. © Contains modified Copernicus Sentinel data (2019–2020), processed by KNMI/ESA.

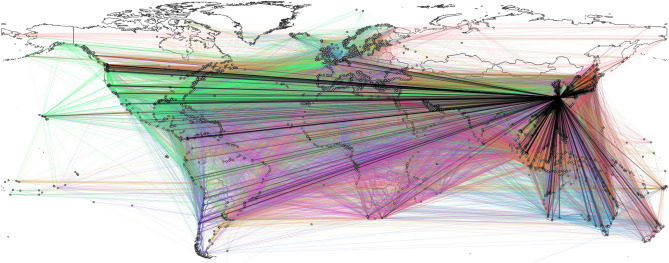

Figure 3

Representation of Shanghai’s ego network and its 3-step neighborhood: each port in the picture, represented by a circle on the coastline, is reachable from Shanghai with at most three hops. An ego network consists of a focal node (the ego) and the nodes (the alters) that are connected to it, either directly or within a fixed number of steps. The edge color is representative of the country of the port of origin. The plecticity of the underlying graph is 256.04 and its maximum and average normalized betweeness centrality values are equal to 0.128472 and $5.02\times {10}^{-4}$, respectively.

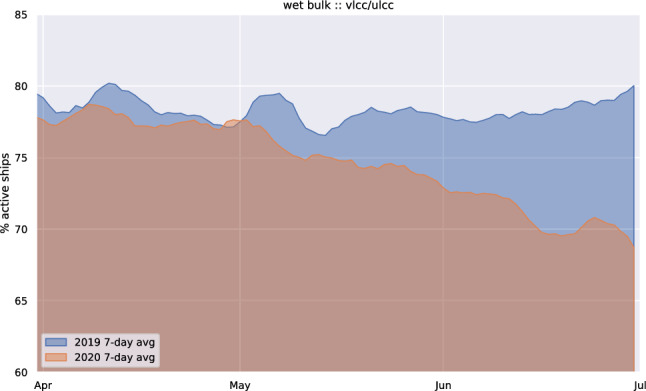

Figure 4

Daily active and idle ships in 2019 (in blue) and 2020 (in orange) of the supertankers, VLCC and ULCC. The two area charts are overlaid in transparency to highlight trend differences. It is evident a decrease (increase) of active (idle) ships for this category from April, 2020, not present in 2019. This is confirming the use of a significant subset of supertankers as oil storage.

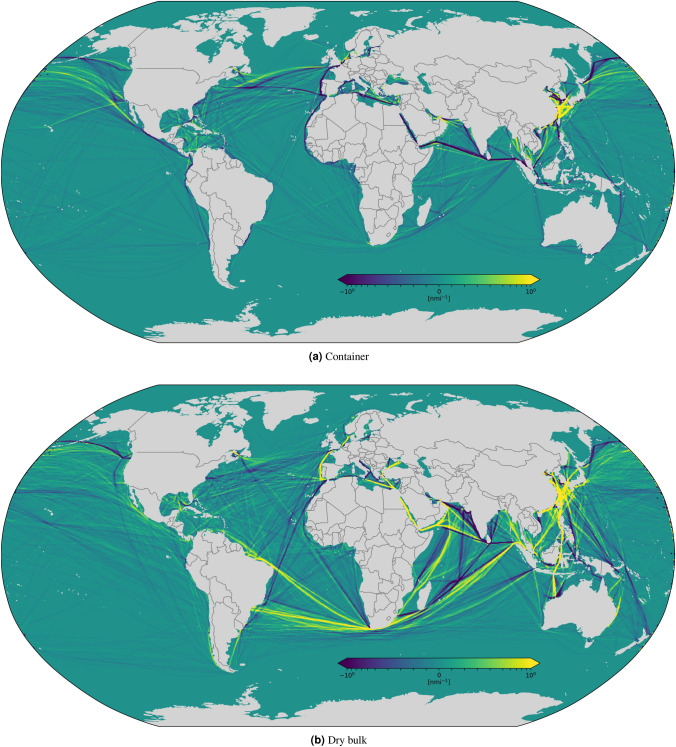

Figure 5

Monthly CNM density difference between 2020 and 2019 for container (a) and dry bulk (b) shipping. The considered time period is from 13 March to 13 April, taking the difference between 2019 and 2020. Each grid cell is colored based on the variation of the 2020 value with respect to 2019, ranging from dark purple, which represents a decrease of CNM in 2020 with respect to 2019, to bright yellow, which represents instead an increase of navigated miles in 2020 with respect to the previous year.

Figure 6

Monthly CNM density difference between 2020 and 2019 for wet bulk (a) and passenger (b) shipping. The considered time period is from 13 March to 13 April. Each grid cell is colored based on the variation of the 2020 value with respect to 2019, ranging from dark purple, which represents a decrease of CNM in 2020 with respect to 2019, to bright yellow, which represents instead an increase of navigated miles in 2020 with respect to the previous year.

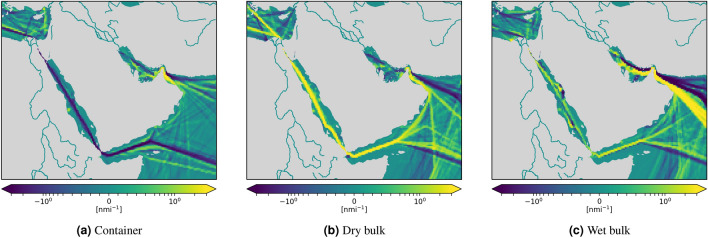

Figure 7

Monthly CNM density difference in the area around the Suez Canal between 2020 and 2019 for container (a), dry (b) and wet bulk (c) shipping. The considered time period is from 13 March to 13 April. Each grid cell is colored based on the variation of the 2020 value with respect to 2019, ranging from dark purple, which represents a decrease of CNM in 2020 with respect to 2019, to bright yellow, which represents an increase of navigated miles in 2020 with respect to the previous year.

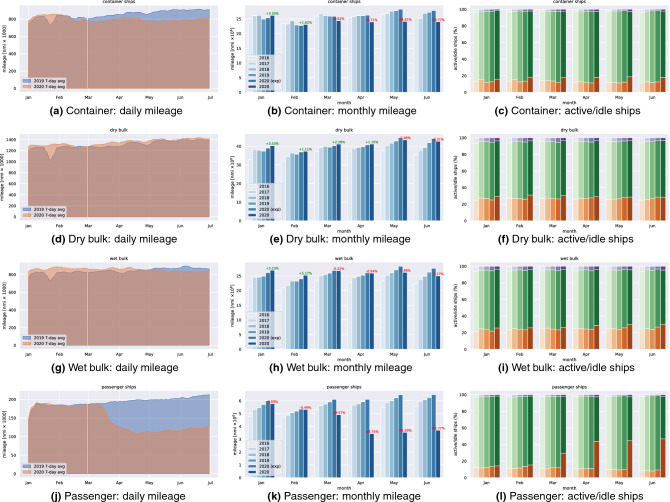

Figure 8

Comparison of traffic indicators for several ship categories: container (a)–(c), dry bulk (d)–(f), wet bulk (g)–(i), and passenger (j)–(l). The left column shows daily navigated miles in 2019 (in blue) compared with 2020 (in orange); the two area charts are overlaid in transparency to highlight trend differences; the discontinuity in the blue data series corresponds to the leap day absence in 2019. The mid column shows monthly navigated since 2016 up to 2020; the second last bar in each group represents an estimation of navigated miles in 2020 given the growth rate observed in the previous years; the label on the 2020 bar quantifies the percentage increase or decrease w.r.t. the expected 2020 traffic volume. The last column shows the distribution of active (green) and idle (orange) ships over time, compared with past years, arranged by month with bars from left (2016) to right (2020); purple bars represent the (negligible) part of ships that could be labeled neither as active nor idle.

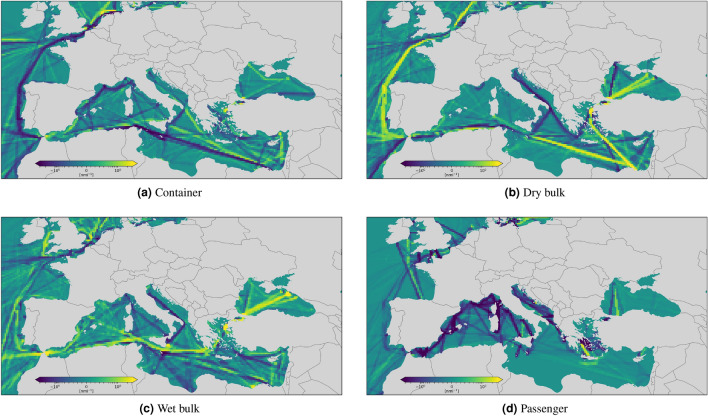

Figure 9

Monthly CNM density difference in the Mediterranean Sea between 2020 and 2019 for container (a), dry (b), wet bulk (c) and passenger (d) shipping. The considered time period is from 13 March to 13 April. Each grid cell is colored based on the variation of the 2020 value with respect to 2019, ranging from dark purple, which represents a decrease of CNM in 2020 with respect to 2019, to bright yellow, which represents an increase of navigated miles in 2020 with respect to the previous year.

Figure 10

Relationship between CNM and PVs in a simulated environment according to Eqs. (1), (2). Three ports are considered: Shanghai, Singapore and Rotterdam. (a) Shows the location of the ports and their connection on the world map. Two scenarios are implemented: in the first one (solid cyan lines) ships move from Singapore to Rotterdam via the Cape of Good Hope; in the second scenario (dashed blue lines), via the Suez Canal. (b) Reports the outcome of the simulation. The left panel shows the CNM indicator over time in the two simulated scenarios; the mid panel depicts the simulated visits in each of the three ports; finally, the right panel reports the empirical relationship between PVs and CNM.
