Implantable Pulse Generators for Deep Brain Stimulation: Challenges, Complications, and Strategies for Practicality and Longevity

Abstract

Deep brain stimulation (DBS) represents an important treatment modality for movement disorders and other circuitopathies. Despite their miniaturization and increasing sophistication, DBS systems share a common set of components of which the implantable pulse generator (IPG) is the core power supply and programmable element. Here we provide an overview of key hardware and software specifications of commercially available IPG systems such as rechargeability, MRI compatibility, electrode configuration, pulse delivery, IPG case architecture, and local field potential sensing. We present evidence-based approaches to mitigate hardware complications, of which infection represents the most important factor. Strategies correlating positively with decreased complications include antibiotic impregnation and co-administration and other surgical considerations during IPG implantation such as the use of tack-up sutures and smaller profile devices.Strategies aimed at maximizing battery longevity include patient-related elements such as reliability of IPG recharging or consistency of nightly device shutoff, and device-specific such as parameter delivery, choice of lead configuration, implantation location, and careful selection of electrode materials to minimize impedance mismatch. Finally, experimental DBS systems such as ultrasound, magnetoelectric nanoparticles, and near-infrared that use extracorporeal powered neuromodulation strategies are described as potential future directions for minimally invasive treatment.

Keywords: DBS (deep brain stimulation); IPG (implantable pulse generator); battery life; complications; longevity; neuromodulation; non-invasive; wireless charging.

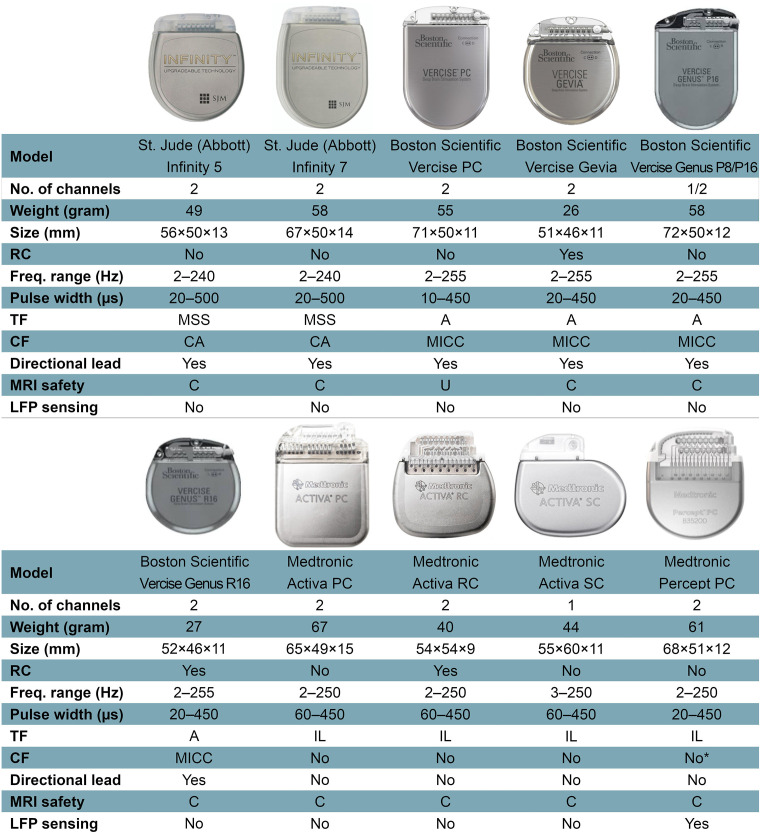

Figure 1

Features of current commercially available internal pulse generators. Abbreviations: A, areas; C, conditional; CA, coactivation; CF, current fractionation; Freq., frequency; Hz, Hertz; IL, interleaving; LFP, local field potential; MICC, multiple independent current control; MRI, magnetic resonance imaging; MSS, multi-stim set; PC, primary cell; RC, rechargeable cell; SC, single cell; TF, temporal fractionation; U, unsafe. *Percept PC can provide independent current control across 16 electrode contacts, but this function is not yet available on physician’s programmer as of March 2021. Not all features or devices are or will be available for a given region and are subject to local regulatory approvals.

Figure 2

Extracorporeal powered non- to minimal-invasive DBS systems. (A) (Left) Transcranial near-infrared light can be converted to visible light by molecularly tailored upconversion nanoparticles for stimulation of genetically modified channelrhodopsin-expressing neurons (Chen et al., 2018). (Middle) Piezoelectric nanoparticles can activate neurons when they are powered using an external magnetic field (Kozielski et al., 2021) or ultrasound (Marino et al., 2015). No genetic modification is needed for this method. (Right) Another method involves activation of genetically modified heat-sensitive capsaicin receptors on neurons by heat- generating magnetic nanoparticles (Chen et al., 2015). (B) In the method by Grossman et al., multiple electric fields at frequencies too high to recruit neural firing, but which differ in frequency within the dynamic range of neural firing were delivered. The interference between the two applied fields served to cancel out the high-frequency activity but allowed the emergence of an oscillation corresponding to the difference in the two frequencies that allows electrical stimulation of the neurons in the interference region (Grossman et al., 2017). (C) Neurons can be activated by wireless, leadless, battery-free, and small (1.7 mm³ in volume) neural stimulators that are powered ultrasonically by hand-held external transceivers (Piech et al., 2020). (D) Transcranial ultrasound has the potential to be used as a neuromodulation tool even in the absence of a neurostimulator device (Fomenko et al., 2020). Reproduced with the permission of Dr. Gokhan Canaz (Cura Canaz Medical Arts).
