. 2021 Sep 14;22(1):790.
doi: 10.1186/s12891-021-04592-z.

Qualitative ultrasonography scale of the intensity of local twitch response during dry needling and its association with modified joint range of motion: a cross-sectional study

Carlos Cruz-Montecinos  1   2 , Mauricio Cerda  3   4   5 , Pablo Becerra  2 , Claudio Tapia  1 , Rodrigo Núñez-Cortés  1 , Rodrigo Latorre-García  1 , Sandro R Freitas  6 , Antonio Cuesta-Vargas  7   8
Affiliations

Qualitative ultrasonography scale of the intensity of local twitch response during dry needling and its association with modified joint range of motion: a cross-sectional study

Carlos Cruz-Montecinos et al. BMC Musculoskelet Disord. .

Abstract

Background: The relevance of local twitch response (LTR) during dry needling technique (DNT) is controversial, and it is questioned whether LTR is necessary for successful outcomes. Furthermore, because the LTR during the deep DNT may be evoked with different intensities, it is unknown whether the magnitude of LTR intensity is associated with optimal clinical results, especially concerning to the effects of joint maximal range of motion (ROM). This study aimed to (i) determine whether visual inspections can quantify the LTR intensity during the DNT through a qualitative ultrasonography scale of LTR intensity (US-LTR scale), and (ii) assess the differences of US-LTR scale associated with changes in the maximal joint ROM.

Methods: Using a cross-sectional design, seven asymptomatic individuals were treated with DNT in the latent myofascial trigger point in both medial gastrocnemius muscles. During DNT, three consecutive LTRs were collected. The US-LTR scale was used to classify the LTRs into strong, medium, and weak intensities. The categories of US-LTR were differentiated by the velocity of LTRs using the optical flow algorithm. ROM changes in ankle dorsiflexion and knee extension were assessed before and immediately after DNT.

Results: The US-LTR scale showed the third LTR was significantly smaller than the first one (p < 0.05). A significant difference in velocity was observed between US-LTR categories (p < 0.001). A significant difference in the ROM was observed between the strong and weak-medium intensity (p < 0.05).

Conclusions: The present findings suggest that the LTR intensity can be assessed using a qualitative US-LTR scale, and the effects of DNT on joint maximal ROM is maximized with higher LTR intensity. This study reports a novel qualitative method for LTR analysis with potential applications in research and clinical settings. However, further research is needed to achieve a broader application.

Keywords: Dry Needling; Local Twitch Response; Range of Motion; Trigger Points; Ultrasound.

PubMed Disclaimer

Conflict of interest statement

The authors state that no conflicts of interest have been reported by the authors or by any individual in control of the content of this article. This information has not been presented previously.

Figures

Fig. 1
Fig. 1

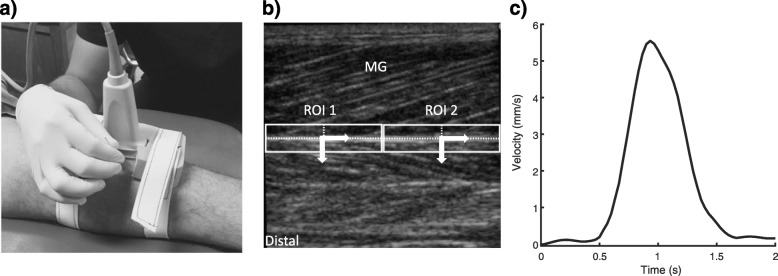

Experimental setup and data normalization. a Filament needle inserted into muscle trigger points while keeping the ultrasound transducer fixed. b Regions of interest (ROI) positioned on deep aponeurosis. Medial gastrocnemius (MG). c Example of signal velocity of one local twitch responses
Fig. 2
Fig. 2
The local twitch response (LTR) intensities. a The qualitative analysis using ultrasonography scale of LTR intensity (US-LTR) among the three consecutive LTRs. b The quantitative analysis using automatic tracking among the three consecutive LTRs. c LTR velocities between the three categories of the US-LTR scale. Strong (n = 13), medium (n = 16), and weak (n = 13). Values are means and 95 % confidence intervals. *p < 0.05 and **p < 0.001
Fig. 3
Fig. 3

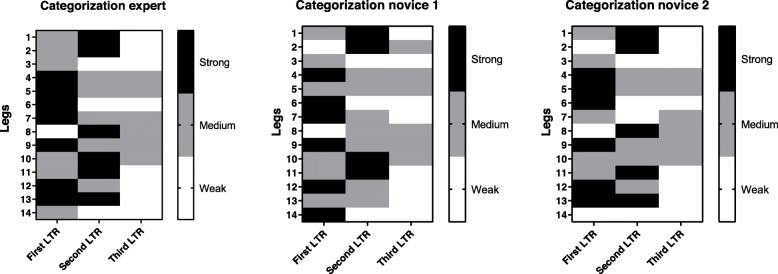

Agreement of qualitative ultrasonography scale of local twitch response (LTR) intensity (US-LTR). Hot map of US-LTR scale between expert and novices (n = 42 L)
Fig. 4
Fig. 4

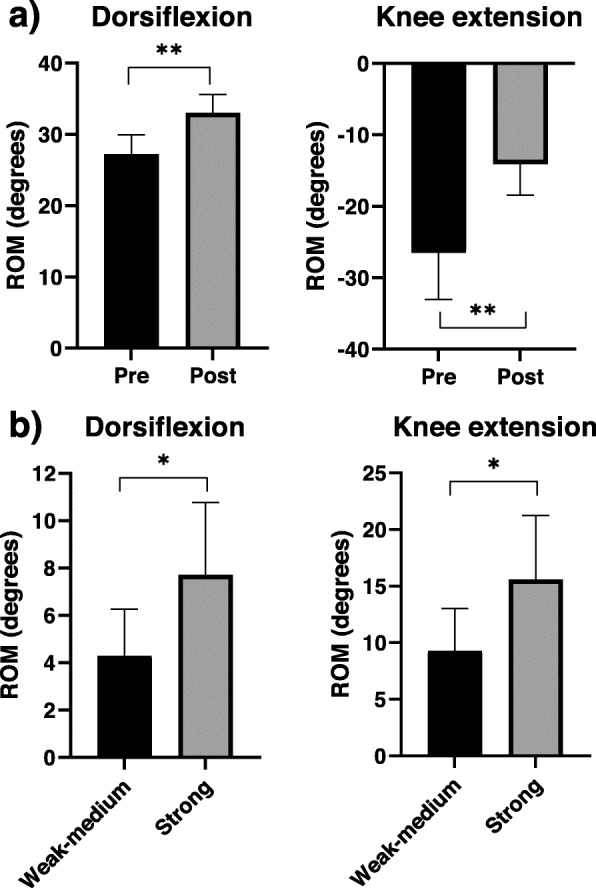

The ultrasonography scale of local twitch response intensity (US-LTR) and scale and effects in maximal range of motion (ROM). a Pre-post maximal ROM (n = 14 legs). b Differences in the ROM between the strong (n = 7 legs) and weak-medium (n = 7 legs) intensities. Values are means and 95 % confidence intervals. *p < 0.05 and **p < 0.001
See this image and copyright information in PMC

References

    1. Albin SR, Koppenhaver SL, MacDonald CW, Capoccia S, Ngo D, Phippen S, Pineda R, Wendlandt A, Hoffman LR. The effect of dry needling on gastrocnemius muscle stiffness and strength in participants with latent trigger points. J Electromyogr Kinesiol. 2020;55:102479. doi: 10.1016/j.jelekin.2020.102479. - DOI - PubMed
    1. Ansari NN, Alaei P, Naghdi S, Fakhari Z, Komesh S, Dommerholt J. Immediate effects of dry needling as a novel strategy for hamstring flexibility: a single-blinded clinical pilot study. J Sport Rehabil. 2020;29:156–161. doi: 10.1123/JSR.2018-0013. - DOI - PubMed
    1. Baraja-Vegas L, Martín-Rodríguez S, Piqueras-Sanchiz F, Martín-Ruiz J, Yeste Fabregat M, Florencio LL, Fernández-de-Las-Peñas C. Electromyographic activity evolution of local twitch responses during dry needling of latent trigger points in the gastrocnemius muscle: a cross-sectional study. Pain Med. 2020;21:1224–1229. doi: 10.1093/pm/pnz182. - DOI - PubMed
    1. Casey E, Hameed F, Dhaher YY. The muscle stretch reflex throughout the menstrual cycle. Med Sci Sports Exerc. 2014;46:600–609. doi: 10.1249/MSS.0000000000000134. - DOI - PMC - PubMed
    1. Chen JT, Chung KC, Hou CR, Kuan TS, Chen SM, Hong CZ, Chen T. Inhibitory effect of dry needling on the spontaneous electrical activity recorded from myofascial trigger spots of rabbit skeletal muscle. Am J Phys Med Rehabil. 2001;80(10):729-35. - PubMed
