. 2021 Sep 8;14(18):5145.
doi: 10.3390/ma14185145.

Towards Analysis and Optimization for Contact Zone Temperature Changes and Specific Wear Rate of Metal Matrix Composite Materials Produced from Recycled Waste

Aydın Güneş  1 , Emin Salur  2 , Abdullah Aslan  3 , Mustafa Kuntoğlu  4 , Khaled Giasin  5 , Danil Yurievich Pimenov  6 , Hayrettin Düzcükoğlu  4 , Ömer Sinan Şahin  7
Affiliations

Towards Analysis and Optimization for Contact Zone Temperature Changes and Specific Wear Rate of Metal Matrix Composite Materials Produced from Recycled Waste

Aydın Güneş et al. Materials (Basel). .

Abstract

Tribological properties are important to evaluate the in-service conditions of machine elements, especially those which work as tandem parts. Considering their wide range of application areas, metal matrix composites (MMCs) serve as one of the most significant materials equipped with desired mechanical properties such as strength, density, and lightness according to the place of use. Therefore, it is crucial to determine the wear performance of these materials to obtain a longer life and to overcome the possible structural problems which emerge during the production process. In this paper, extensive discussion and evaluation of the tribological performance of newly produced spheroidal graphite cast iron-reinforced (GGG-40) tin bronze (CuSn10) MMCs, including optimization, statistical, graphical, and microstructural analysis for contact zone temperature and specific wear rate, are presented. For this purpose, two levels of production temperature (400 and 450 °C), three levels of pressure (480, 640, and 820 MPa), and seven different samples reinforced by several ingredients (from 0 to 40 wt% GGG-40, pure CuSn10, and GGG-40) were investigated. According to the obtained statistical results, the reinforcement ratio is remarkably more effective on contact zone temperature and specific wear rate than temperature and pressure. A pure CuSn10 sample is the most suitable option for contact zone temperature, while pure GGG-40 seems the most suitable material for specific wear rates according to the optimization results. These results reveal the importance of reinforcement for better mechanical properties and tribological performance in measuring the capability of MMCs.

Keywords: analysis and optimization; metal matrix composites (MMCs); specific wear rate; temperature changes.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
A general outline of the study.
Figure 2
Figure 2

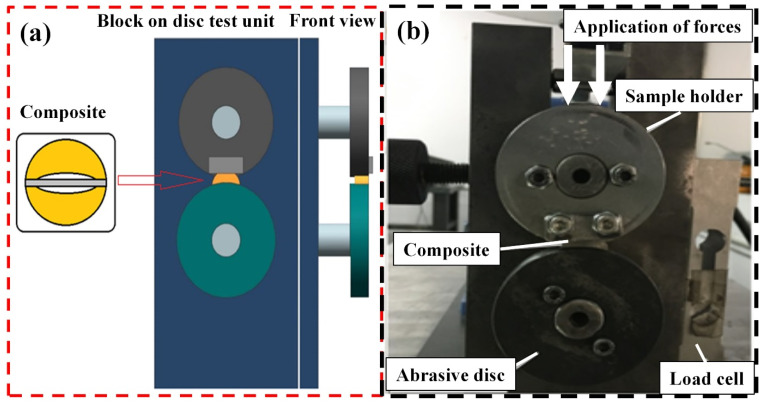

(a) Schematic view of the wear test setup, and (b) wear test machine [28].
Figure 3
Figure 3
SEM images of different composites after wear (a) 100C, (b) 60C40G, (c–e) 70C30G, and (f) 90C10G samples produced at 450 °C and 820 MPa.
Figure 4
Figure 4
(a) SEM image and (b) EDS analysis of 70C30G composite after wear.
Figure 5
Figure 5
(a) SEM image and (b) EDS analysis of 60C40G particles after wear.
Figure 5
Figure 5
(a) SEM image and (b) EDS analysis of 60C40G particles after wear.
Figure 6
Figure 6
Specific wear rates of (a) 60C40G, (b) 70C30G, (c) 80C20G, (d) 90C10G, and (e) 100C samples with respect to different production parameters.
Figure 7
Figure 7
S/N ratios of specific wear rate.
Figure 8
Figure 8
Contact zone temperature changes of (a) 480 MPa, (b) 640 MPa, and (c) 820 MPa MMCs produced at 400 °C according to sliding distance and wear time.
Figure 9
Figure 9
Contact zone temperature changes of (a) 480 MPa, (b) 640 MPa, and (c) 820 MPa MMCs produced at 450 °C according to sliding distance and wear time.
Figure 10
Figure 10
S/N ratios of temperature change.
See this image and copyright information in PMC

References

    1. Sharma S., Singh J., Gupta M.K., Mia M., Dwivedi S.P., Saxena A., Chattopadhyaya S., Singh R., Pimenov D.Y., Korkmaz M.E. Investigation on mechanical, tribological and microstructural properties of Al–Mg–Si–T6/SiC/muscovite-hybrid metal-matrix composites for high strength applications. J. Mater. Res. Technol. 2021;12:1564–1581. doi: 10.1016/j.jmrt.2021.03.095. - DOI
    1. Salur E., Acarer M., Şavkliyildiz İ. Improving mechanical properties of nano-sized TiC particle reinforced AA7075 Al alloy composites produced by ball milling and hot pressing. Mater. Today Commun. 2021;27:102202. doi: 10.1016/j.mtcomm.2021.102202. - DOI
    1. Aslan A. Production of Metal Matrix Composites by Recycling of Waste Metal Chips and Their Mechanical Properties. Selçuk University; Konya, Turkey: 2014.
    1. Aslan A., Güneş A., Salur E., Şahin Ö.S., Karadağ H.B., Akdemir A. Mechanical properties and microstructure of composites produced by recycling metal chips. Int. J. Miner. Metall. Mater. 2018;25:1070–1079. doi: 10.1007/s12613-018-1658-8. - DOI
    1. Gronostajski J., Kaczmar J., Marciniak H., Matuszak A. Direct recycling of aluminium chips into extruded products. J. Mater. Process. Technol. 1997;64:149–156. doi: 10.1016/S0924-0136(96)02563-0. - DOI
