Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2021 Sep 28;14(19):5642.
doi: 10.3390/ma14195642.

Effect of the Degree of Conversion on Mechanical Properties and Monomer Elution from Self-, Dual- and Light-Cured Core Composites

Branislava Petronijevic Sarcev  1 , Sebastian Balos  2 , Dubravka Markovic  1 , Ivan Sarcev  1 , Marija Vukcevic  3 , Danka Labus Zlatanovic  2   4 , Vesna Miletic  5
Affiliations

Effect of the Degree of Conversion on Mechanical Properties and Monomer Elution from Self-, Dual- and Light-Cured Core Composites

Branislava Petronijevic Sarcev et al. Materials (Basel). .

Abstract

The objective of this work was to measure and correlate the degree of conversion (DC), mechanical properties and monomer elution from self-, dual- and light-cured core composites. Five samples of each of the following materials were prepared for each test: Clearfil (Core, Photo Core, Automix), Bisco (Core-Flo, Light-Core and Bis-Core). DC was determined using FTIR, compressive and flexural strength and modulus of elasticity using a universal testing machine and microhardness using Vickers hardness. Elution was measured using HPLC. One-way ANOVA with Tukey's post-test and Pearson's correlation were used to statistically analyze the data. DC of Clearfil-Dual (70.1%) and Clerafil-Photo (66.8%) were higher than Clearfil-Self (55.4%) and all Bisco materials (51.4-55.3%). Flexural strength of Clearfilwas higher than that of Bisco composites. The Microhardness of Clearfil-Dual (119.8VHN) and Clearfil-Photo (118.0VHN) were higher compared to other materials. The greatest elution was detected from self-cured materials. DC positively correlated to microhardness and compressive/flexural strength and negatively to BisGMA elution. Clearfil-Photo and Automix showed higher conversion, lower monomer elution and, generally, better mechanical properties. Self-cured composites should not be recommended for routine clinical use as their performance was inferior to dual- and light-cured composites. Microhardness may be used as an indicator of elution.

Keywords: composite core materials; degree of conversion; mechanical properties; monomer elution.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Mean and standard deviation values of the degree of conversion of core composites. The same letters indicate no significant difference between materials (p > 0.05): (a) FTIR spectra and (b) degree of conversion of tested materials.
Figure 2
Figure 2
Mean and standard deviation values of (a) microhardness and (b) compressive strength of core composites. The same letters indicate no significant difference between materials (p > 0.05).
Figure 3
Figure 3

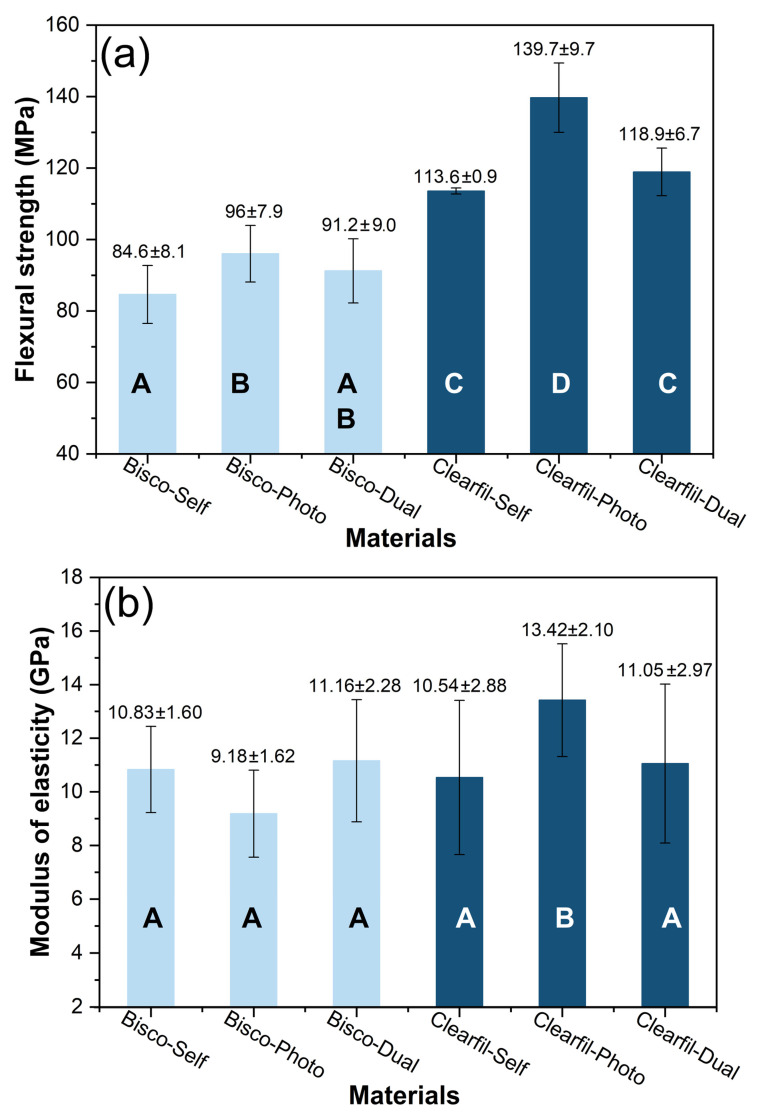

Mean and standard deviation values of (a) flexural strength and (b) modulus of elasticity of core composites. The same letters indicate no significant difference between materials (p > 0.05).
Figure 4
Figure 4
Mean and standard deviation values of monomer elution from core materials. The same upper-case letters indicate no significant differences in TEGDMA elution; the same lower case letters indicate no significant differences in BisGMA elution (p > 0.05).
Figure 5
Figure 5
Correlation between mechanical properties and the degree of conversion of core composites.
Figure 6
Figure 6
Correlation between monomer elution and the degree of conversion and between monomer elution and mechanical properties of core composites.
See this image and copyright information in PMC

References

    1. Petronijevic Sarcev B., Labus Zlatanovic D., Hadnadjev M., Pilic B., Sarcev I., Markovic D., Balos S. Mechanical and Rheological Properties of Flowable Resin Composites Modified with Low Addition of Hydrophilic and Hydrophobic TiO2 Nanoparticles. Mater. Plast. 2021;58:80–90. doi: 10.37358/MP.21.2.5480. - DOI
    1. Cramer N.B., Stansbury J.W., Bowman C.N. Recent advances and developments in composite dental restorative materials. J. Dent. Res. 2011;90:402–416. doi: 10.1177/0022034510381263. - DOI - PMC - PubMed
    1. Van Dijken J.W.V., Pallesen U. Durability of a low shrinkage TEGDMA / HEMA-free resin composite system in Class II restorations. A 6-year follow up. Dent. Mater. 2017;33:944–953. doi: 10.1016/j.dental.2017.04.021. - DOI - PubMed
    1. Demarco F.F., Corrêa M.B., Cenci M.S., Moraes R.R., Opdam N.J.M. Longevity of posterior composite restorations: Not only a matter of materials. Dent. Mater. 2012;28:87–101. doi: 10.1016/j.dental.2011.09.003. - DOI - PubMed
    1. Opdam N.J.M., Loomans B.A.C., Roeters F.J.M., Bronkhorst E.M. Five-year clinical performance of posterior resin composite restorations placed by dental students. J. Dent. 2004;32:379–383. doi: 10.1016/j.jdent.2004.02.005. - DOI - PubMed

LinkOut - more resources
