. 2022;74(4):271-283.
doi: 10.1159/000520080. Epub 2021 Oct 13.

The Impact of Maxillary Osteotomy on Fricatives in Cleft Lip and Palate: A Perceptual Speech and Acoustic Study

Joy M K Tsang  1 , Wilson S Yu  1 , Jyrki Tuomainen  2 , Debbie Sell  3 , Kathy Y S Lee  1   4 , Michael C F Tong  1   4 , Valerie J Pereira  1   4
Affiliations

The Impact of Maxillary Osteotomy on Fricatives in Cleft Lip and Palate: A Perceptual Speech and Acoustic Study

Joy M K Tsang et al. Folia Phoniatr Logop. 2022.

Abstract

Introduction: Abnormal facial growth is a recognized outcome in cleft lip and palate (CLP), resulting in a concave profile and a class III occlusal status. Maxillary osteotomy (MO) is undertaken to correct this facial deformity, and the surgery can impact speech articulation, although the evidence remains limited and ill-defined for the CLP population.

Aims: The aim of the study was to investigate the impact of MO on the production of the fricatives /f/ and /s/, using perceptual and acoustic analyses, and to explore the nature of speech changes.

Methods: Twenty participants with CLP were seen 0-3 months pre-operatively (T1) and 3 months (T2) and 12 months (T3) after MO. A normal group (N = 20) was similarly recruited. Perceptual speech data was collected according to a validated framework and ratings made on audio and audio-video recordings (VIDRat). Spectral moments were centre of gravity (CG), standard deviation (SD), skewness (SK) and kurtosis (KU). Reliability studies were carried out for all speech analyses.

Results: For the CLP group, VIDRat identified dentalization/interdentalization as the main type of pre-operative error for /s/ with a statistically significant improvement over time, χ2(2) = 6.889, p = 0.032. Effect sizes were medium between T1 and T3 (d = 0.631) and small between T2 and T3 (d = 0.194). For the acoustic data, effect sizes were similarly medium between T1 and T2 (e.g., SK, /f/ d = 0.579, /s/ d = 0.642) and small between T1 and T3 across all acoustic parameters. Independent t tests showed mainly statistically significant differences between both groups at all time points with large effect sizes (e.g., T2 CG, t = -4.571, p < 0.001, d =1.581), indicating that /s/ was not normalized post-operatively. For /f/, differences tended to be at T1 with large effect sizes (e.g., CG, t = -2.307, p = 0.028, d = 0.797), reflecting normalization.

Conclusions and implications: This is the first speech acoustic study on /f/ for individuals with CLP undergoing MO. The surgery has a positive impact on /f/ and /s/, which appear to stabilize 3 months post-operatively. Speech changes are an automatic and a direct consequence of the physical changes brought about by MO, effecting articulatory re-organization. The results of the study have direct clinical implications for the clinical care pathway for patients with CLP undergoing MO.

Keywords: Acoustic analyses; Cleft lip/palate; Fricatives; Maxillary osteotomy.

PubMed Disclaimer

Conflict of interest statement

The authors have no conflicts of interest to declare.

Figures

Fig. 1
Fig. 1
Example of annotation of /f/ in the target word “feet” in Praat version 6.1.07 [40].
Fig. 2
Fig. 2
/s/ spectral moments over time for the CLP group and the normal group.
Fig. 3
Fig. 3

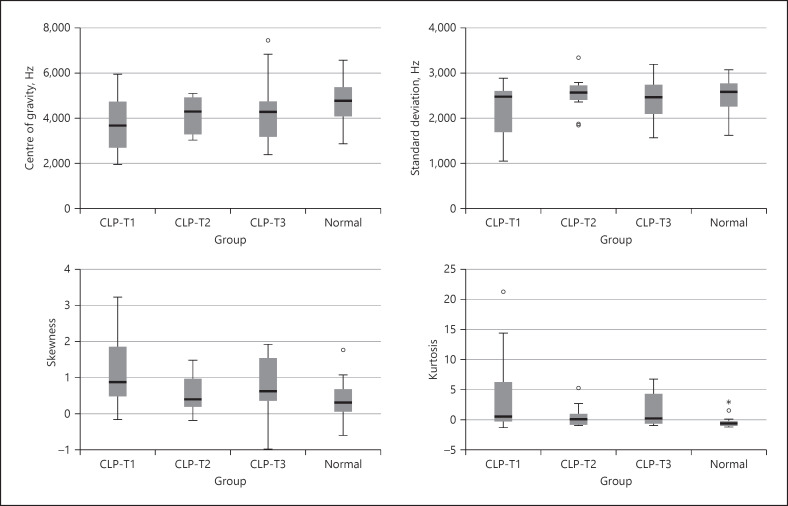

/f/ spectral moments over time for the CLP group and the normal group.
