. 2013;29(2):55-66.
doi: 10.1080/10447318.2012.681220. Epub 2013 Jan 3.

A Cognitive Modeling Approach to Decision Support Tool Design for Anesthesia Provider Crisis Management

Noa Segall  1 , David B Kaber  2 , Jeffrey M Taekman  1 , Melanie C Wright  3
Affiliations

A Cognitive Modeling Approach to Decision Support Tool Design for Anesthesia Provider Crisis Management

Noa Segall et al. Int J Hum Comput Interact. 2013.

Abstract

Prior research has revealed existing operating room (OR) patient monitors to provide limited support for prompt and accurate decision making by anesthesia providers during crises. Decision support tools (DSTs) developed for this purpose typically alert the anesthesia provider to existence of a problem but do not recommend a treatment plan. There is a need for a human-centered approach to the design and development of a crisis management DST. A hierarchical task analysis was conducted to identify anesthesia provider procedures in detecting, diagnosing, and treating a critical incident and a cognitive task analysis to elicit goals, decisions, and information requirements. This information was coded in a computational cognitive model using GOMS (Goals, Operators, Methods, Selection rules) Language. An OR monitor interface was prototyped to present output from the cognitive model following ecological interface design principles. A preliminary assessment of the DST was performed with anesthesiology and usability experts. The anesthesiologists indicated they would use the tool in the perioperative environment and would recommend its use by junior anesthesia providers. Future research will focus on formal validation of the DST design approach and comparison of tool output to actual anesthesia provider decisions in real or simulated crises.

PubMed Disclaimer

Figures

FIG. 1.
FIG. 1.
EGLEAN system architecture.
FIG. 2.
FIG. 2.
High-level hierarchical task analysis diagram for myocardial infarction treatment task.
FIG. 3.

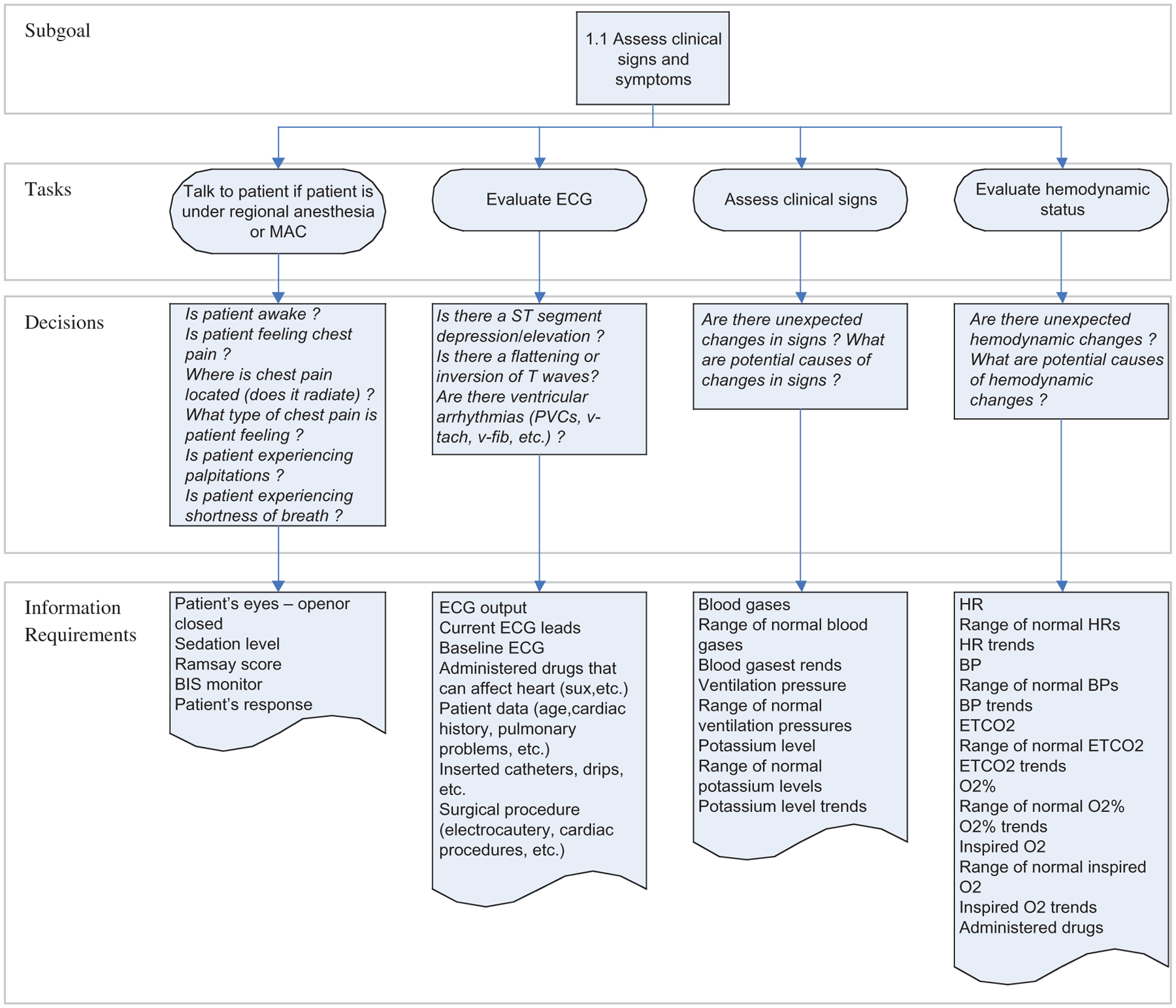

FIG. 3.
Goal-directed task analysis for subgoal of assessing clinical signs and symptoms.
FIG. 4.

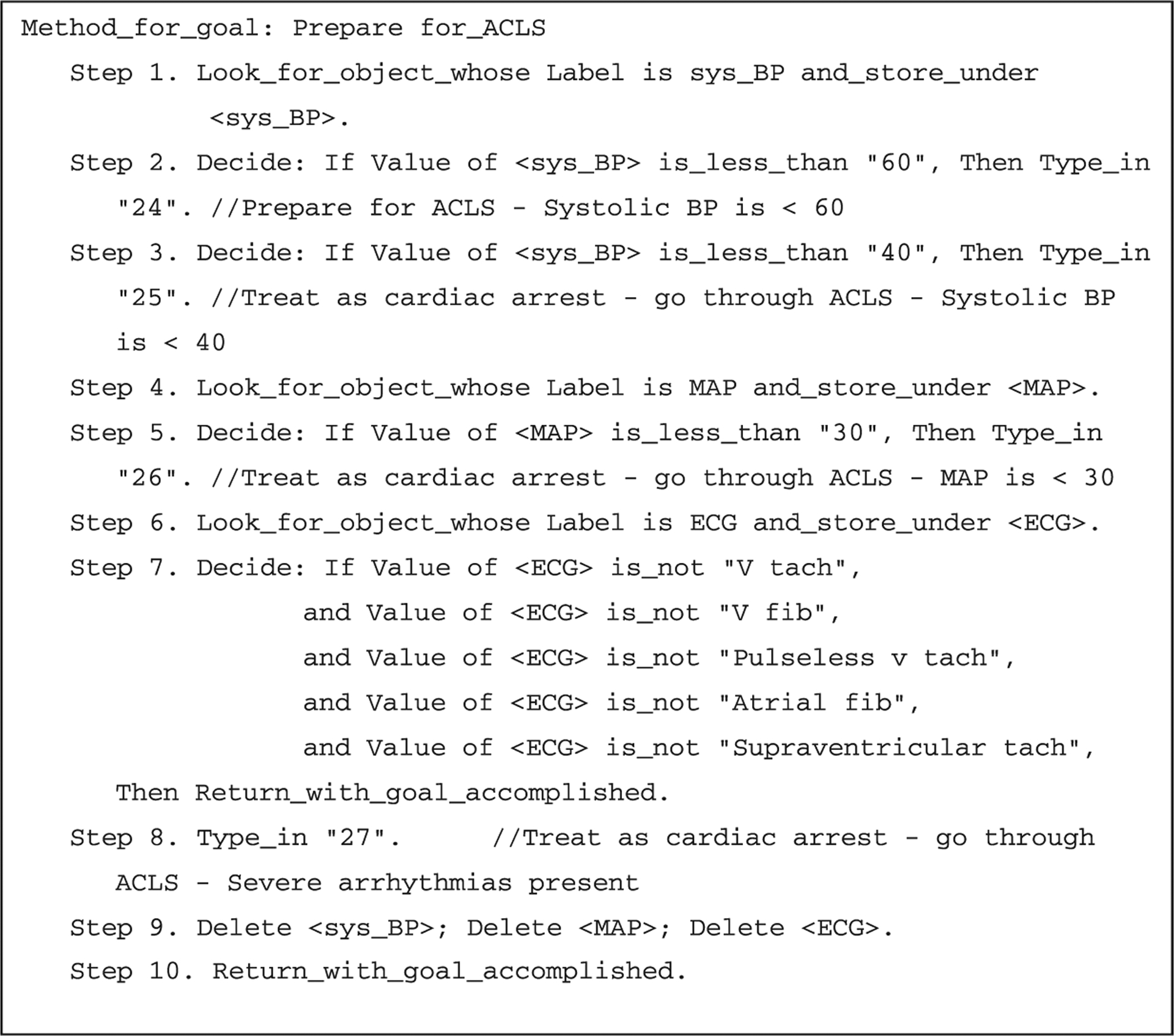

FIG. 4.
GOMS Language code for subgoal of preparing for advanced cardiac life support (ACLS).
FIG. 5.

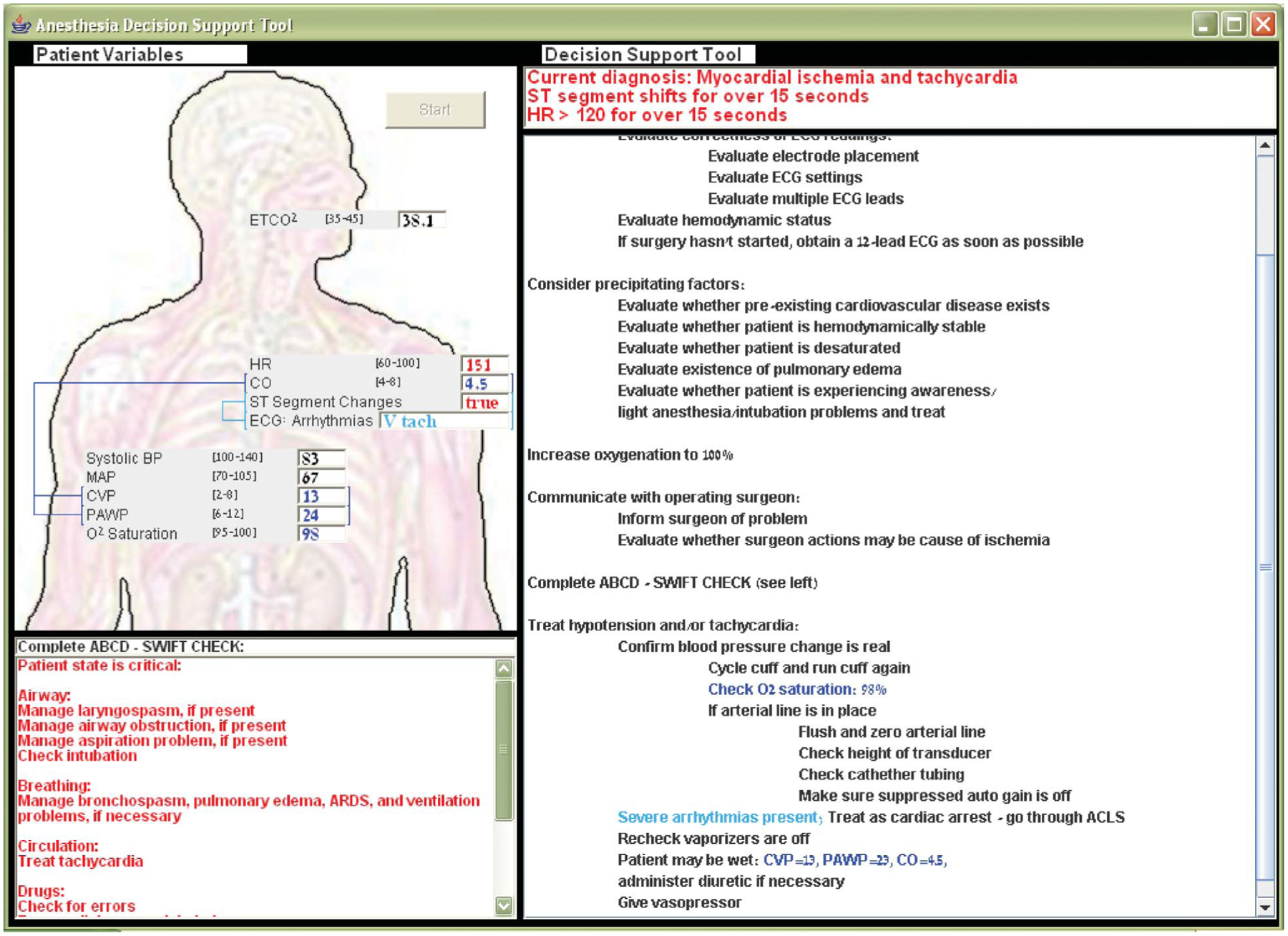

FIG. 5.
Decision support tool interface.
FIG. 6.
FIG. 6.
Applicability assessment results. (Survey items are on the vertical axis and the rating scale is on the horizontal axis.)
See this image and copyright information in PMC

References

    1. Anderson JR, Bothell D, Byrne MD, Douglass S, Lebiere C, & Qin Y (2004). An integrated theory of the mind. Psychological Review, 111, 1036–1060. - PubMed
    1. Annett J (2003). Hierarchical task analysis. In Hollnagel E (Ed.), Handbook of cognitive task design (pp. 17–35). Mahwah, NJ: Erlbaum.
    1. Becker K, Käsmacher H, Rau G, Kalff G, & Zimmermann H-J (1994). A fuzzy logic approach to intelligent alarms in cardioanesthesia. Proceedings of the Third IEEE International Conference on Fuzzy Systems, 3 (pp. 2072–2076). Piscataway, NJ: IEEE.
    1. Becker K, Thull B, Käsmacher-Leidinger H, Stemmer J, Rau G, Kalff G, & Zimmermann H-J (1997). Design and validation of an intelligent patient monitoring and alarm system based on a fuzzy logic process model. Artificial Intelligence in Medicine, 11, 33–53. - PubMed
    1. Burian BK (2004). Emergency and abnormal checklist design factors influencing flight crew response: A case study, In Wilson Helen (Ed.) 2004, Toulouse, France: EURISCO International.
