. 2021 Oct 1;6(40):26035-26047.
doi: 10.1021/acsomega.1c02976. eCollection 2021 Oct 12.

1,3-Bis(carboxymethyl)imidazolium Chloride as a Sustainable, Recyclable, and Metal-Free Ionic Catalyst for the Biginelli Multicomponent Reaction in Neat Condition

Prabhakara Madivalappa Davanagere  1 , Barnali Maiti  1
Affiliations

1,3-Bis(carboxymethyl)imidazolium Chloride as a Sustainable, Recyclable, and Metal-Free Ionic Catalyst for the Biginelli Multicomponent Reaction in Neat Condition

Prabhakara Madivalappa Davanagere et al. ACS Omega. .

Abstract

A simple and novel methodology has been developed for the synthesis of 1,3-bis(carboxymethyl)imidazolium chloride [BCMIM][Cl] salt. The ionic salt [BCMIM][Cl] catalyzed the reaction among arylaldehydes; the substituted 1,3-dicarbonyl compounds and urea/thiourea at 80 °C with 5 mol % under neat condition provided the substituted dihydropyrimidin-2(1H)-one/thiones in the synthesis step with yields of up to 96%. In addition, we synthesized the commercially available drug Monastrol by employing this methodology. The new synthesis method employs the benefits of a broad substrate scope, short reaction time, and high atom economy along with low catalyst loading in neat conditions, and is devoid of chromatographic purification. The ionic salt [BCMIM][Cl] was recycled and reused up to six cycles without substantial damage of its catalytic efficiency.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing financial interest.

Figures

Figure 1
Figure 1

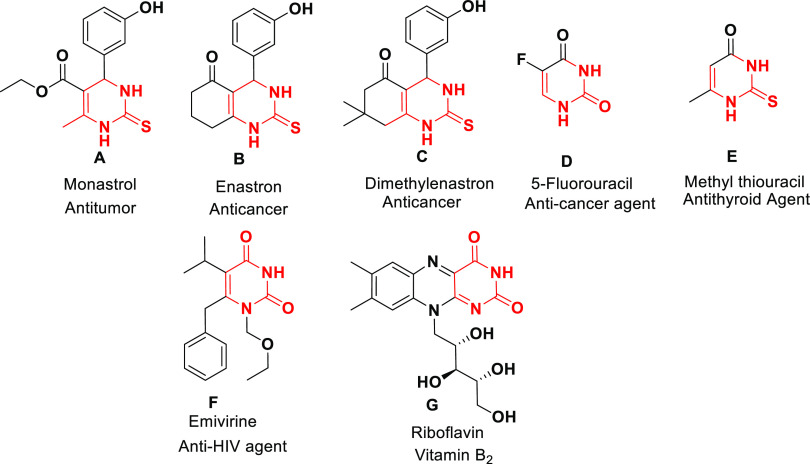

Representative biologically active DHPM compounds.
Scheme 1
Scheme 1. Biginelli Reactions: Previous and Current Approach
Scheme 2
Scheme 2. Synthesis of Ionic Salt 1,3-Bis(carboxymethyl)imidazolium Chloride [BCMIM][Cl]
Figure 2
Figure 2
NMR spectra: (A) 1H NMR spectrum of catalyst 4; (B) 13C NMR spectrum of catalyst 4; and (C) 1H NMR spectrum of compound 8a.
Scheme 3
Scheme 3. Substrate Scope for Various 4-Aryl-3,4-dihydropyrimidin-2(1H)-one/4-Aryl-3,4-dihydropyrimidin-2(1H)- thiones (8a–8a′),
Reaction conditions: The reaction was performed by employing 5 (1.66 mmol), 6 (1.66 mmol), and 7 (1.66 mmol) in one pot at 80 °C in neat condition. Yield of the isolated product.
Scheme 4
Scheme 4. One-Pot Gram-Scale Synthesis of 4-Phenyl-3,4-dihydropyrimidin-2(1H)-ones 8a Employing the [BCMIM][Cl] 4 Catalyst
Figure 3
Figure 3
Plausible iminium mechanism for the synthesis of 4-aryl-3,4-dihydropyrimidin-2(1H)-ones/4-aryl-3,4-dihydropyrimidin-2(1H)-thiones 8a–8a′.
Figure 4
Figure 4
Catalytic cycle (5 mol % of ionic salt at 80 °C in neat condition recharges each reactant in 1.66 mmol).
Scheme 5
Scheme 5. One-Pot Multicomponent Synthesis of Monastrol 8z Using [BCMIM][Cl] 4 Catalyst
See this image and copyright information in PMC

References

    1. Rotstein B. H.; Zaretsky S.; Rai V.; Yudin A. K. Small heterocycles in multicomponent reactions. Chem. Rev. 2014, 114, 8323–8359. 10.1021/cr400615v. - DOI - PubMed
    1. Cioc R. C.; Ruijter E.; Orru R. V. A. Multicomponent reactions: advanced tools for sustainable organic synthesis. Green Chem. 2014, 16, 2958–2975. 10.1039/C4GC00013G. - DOI
    1. Crisenza G. E. M.; Melchiorre P. Chemistry glows green with photoredox catalysis. Nat. Commun. 2020, 11, 80310.1038/s41467-019-13887-8. - DOI - PMC - PubMed
    1. Arcadia C. E.; Kennedy E.; Geiser J.; Dombroski A.; Oakley K.; Chen S. L.; Sprague L.; Ozmen M.; Sello J.; Weber P. M.; Reda S.; Rose C.; Kim E.; Rubenstein B. M.; Rosenstein J. K. Multicomponent molecular memory. Nat. Commun. 2020, 11, 69110.1038/s41467-020-14455-1. - DOI - PMC - PubMed
    1. Alvim H. G. O.; Lima T. B.; Oliveira H. C. B.; Gozzo F. C.; de Macedo J. L.; Abdelnur P. V.; Silva W. A.; Neto B. A. Ionic Liquid Effect over the Biginelli Reaction under Homogeneous and Heterogeneous Catalysis. ACS Catal. 2013, 3, 1420–1430. 10.1021/cs400291t. - DOI
