A systematic review of smartphone-based human activity recognition methods for health research

Abstract

Smartphones are now nearly ubiquitous; their numerous built-in sensors enable continuous measurement of activities of daily living, making them especially well-suited for health research. Researchers have proposed various human activity recognition (HAR) systems aimed at translating measurements from smartphones into various types of physical activity. In this review, we summarized the existing approaches to smartphone-based HAR. For this purpose, we systematically searched Scopus, PubMed, and Web of Science for peer-reviewed articles published up to December 2020 on the use of smartphones for HAR. We extracted information on smartphone body location, sensors, and physical activity types studied and the data transformation techniques and classification schemes used for activity recognition. Consequently, we identified 108 articles and described the various approaches used for data acquisition, data preprocessing, feature extraction, and activity classification, identifying the most common practices, and their alternatives. We conclude that smartphones are well-suited for HAR research in the health sciences. For population-level impact, future studies should focus on improving the quality of collected data, address missing data, incorporate more diverse participants and activities, relax requirements about phone placement, provide more complete documentation on study participants, and share the source code of the implemented methods and algorithms.

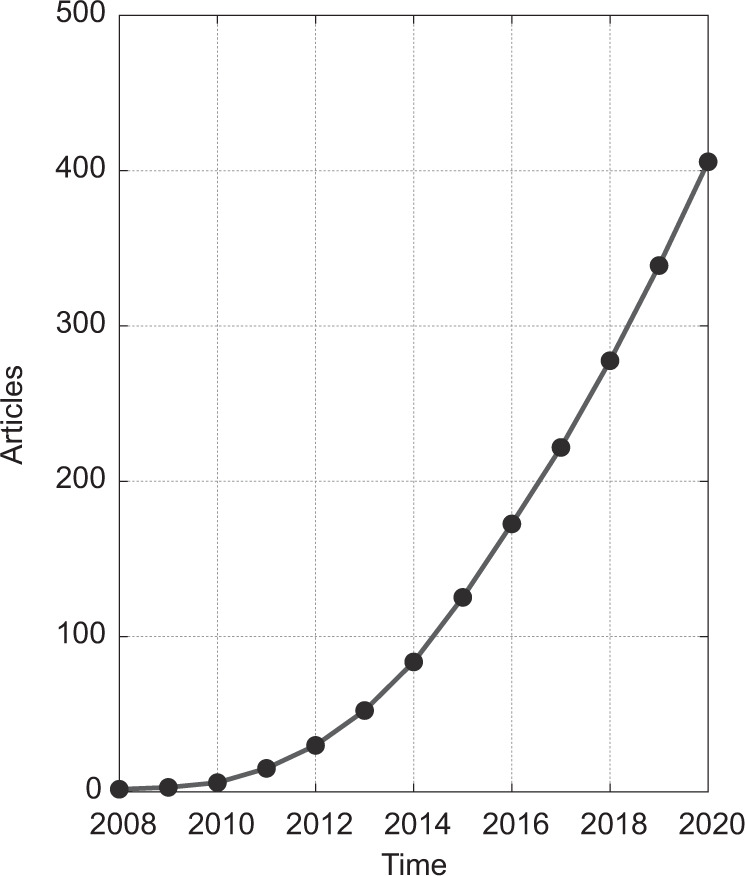

Fig. 1. Cumulative number of peer-reviewed articles on human activity recognition (HAR) using smartphones.

Articles were published between January 2008 and December 2020, based on a search of PubMed, Scopus, and Web of Science databases (for details, see “Methods”).

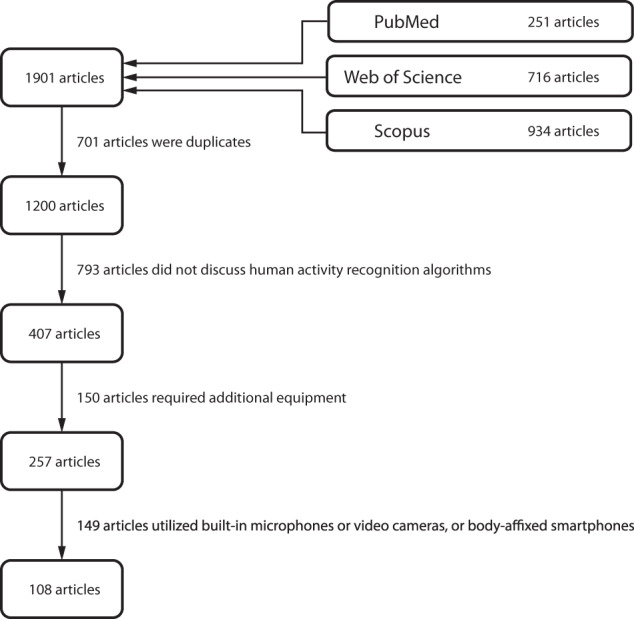

Fig. 2. PRISMA diagram of the literature search process.

The search was conducted in PubMed, Scopus, and Web of Science databases and included full-length peer-reviewed articles written in English. The search was carried out on January 2, 2021.

Fig. 3. Human activity recognition (HAR) concepts at a glance.

The map displays common aspects of HAR systems together with their operational definitions. The methodological differences between the reviewed studies are highlighted in Figure 4.

Fig. 4. Summary of HAR systems using smartphones.

The columns correspond to the 108 reviewed studies and the rows correspond to different technical aspects of each study. Cells marked with a cross (x) indicate that the given study used the given method, algorithm, or approach. Rows have been grouped to correspond to different stages of HAR, such as data processing, and color shading of rows indicates how frequently a particular aspect is present among the studies (darker shade corresponds to higher frequency).

Fig. 5. Age of populations examined in the reviewed studies in contrast with the nationwide age distribution of selected countries.

Panel a displays age of the population corresponding to individual studies, typically described by its range (lines) or mean (dots). Panel b displays the reconstructed age distribution in the reviewed studies (see the text). Nationwide age distributions displayed in panel c of three countries offer a stark contrast with the reconstructed distribution of study participant ages.

Fig. 6. Overview of standard smartphone sensors.

Inertial sensors (accelerometer, gyroscope, and magnetometer) provide measurements with respect to the three orthogonal axes (x, y, z) of the body of the phone; the remaining sensors are orientation-invariant.

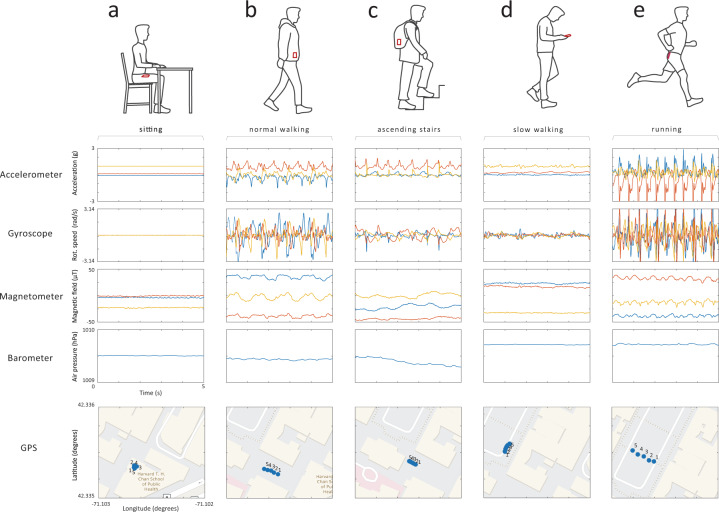

Fig. 7. Examples of raw smartphone sensor data collected in a naturalistic setting.

a A person is sitting by the desk with the smartphone placed in the front pants pocket; b a person is walking normally (~1.9 steps per second) with the smartphone placed in a jacket pocket; c a person is ascending stairs with the smartphone placed in the backpack; d a person is walking slowly (~1.4 steps per second) holding the smartphone in hand; e a person is jogging (~2.8 steps per second) with the smartphone placed in back short’s pocket.

Fig. 8. Common data preprocessing steps include standardization and transformation.

Standardization includes relabeling (a), when labels are reassigned to better match transitions between activities; trimming (b), when part of the signal is removed to balance the dataset for system training; interpolation (c), when missing data are filled in based on adjacent observations; and denoising (d), when the signal is filtered from redundant components. The transformation includes normalization (e), when the signal is normalized to unidimensional vector magnitude; rotation (f), when the signal is rotated to a different coordinate system; and separation (g), when the signal is separated into linear and gravitational components. Raw accelerometer data are shown in gray, and preprocessed data are shown using different colors.

Fig. 9. Common feature extraction and activity classification methods.

An analyzed measurement (a) is segmented into smaller fragments using a sliding window (b). Depending on the approach, each segment may then be used to compute time-domain (c) or frequency-domain features (d), but also it may serve as the activity template (e), or as input for deep learning networks that compute hidden (“deep”) features (f). The selected feature extraction approach determines the activity classifier: time- and frequency-domain features are paired with machine learning classifiers (g) and activity templates are investigated using distance metrics (h), while deep features are computed within embedded layers of convolutional neural networks (i).
