Biomechanical analysis of subcondylar fracture fixation using miniplates at different positions and of different lengths

Abstract

Background: Many types of titanium plates were used to treat subcondylar fracture clinically. However, the efficacy of fixation in different implant positions and lengths of the bone plate has not been thoroughly investigated. Therefore, the primary purpose of this study was to use finite element analysis (FEA) to analyze the biomechanical effects of subcondylar fracture fixation with miniplates at different positions and lengths so that clinicians were able to find a better strategy of fixation to improve the efficacy and outcome of treatment.

Methods: The CAD software was used to combine the mandible, miniplate, and screw to create seven different FEA computer models. These models with subcondylar fracture were fixed with miniplates at different positions and of different lengths. The right unilateral molar clench occlusal mode was applied. The observational indicators were the reaction force at the temporomandibular joint, von Mises stress of the mandibular bone, miniplate and screw, and the sliding distance on the oblique surface of the fracture site at the mandibular condyle.

Results: The results showed the efficacy of fixation was better when two miniplates were used comparing to only one miniplates. Moreover, using longer miniplates for fixation had better results than the short one. Furthermore, fixing miniplates at the posterior portion of subcondylar region would have a better fixation efficacy and less sliding distance (5.46-5.76 μm) than fixing at the anterolateral surface of subcondylar region (6.10-7.00 μm).

Conclusion: Miniplate fixation, which was placed closer to the posterior margin, could effectively reduce the amount of sliding distance in the fracture site, thereby achieving greater stability. Furthermore, fixation efficiency was improved when an additional miniplate was placed at the anterior margin. Our study suggested that the placement of miniplates at the posterior surface and the additional plate could effectively improve stability.

Keywords: Miniplates; Open reduction and internal fixation; Subcondylar fracture.

Fig. 1

Subcondylar fracture and different miniplate implantation positions (1. anterolateral surface. 2. posterolateral surface of the mandibular condyle. 3. posterior surface of the mandibular condyle)

Fig. 2

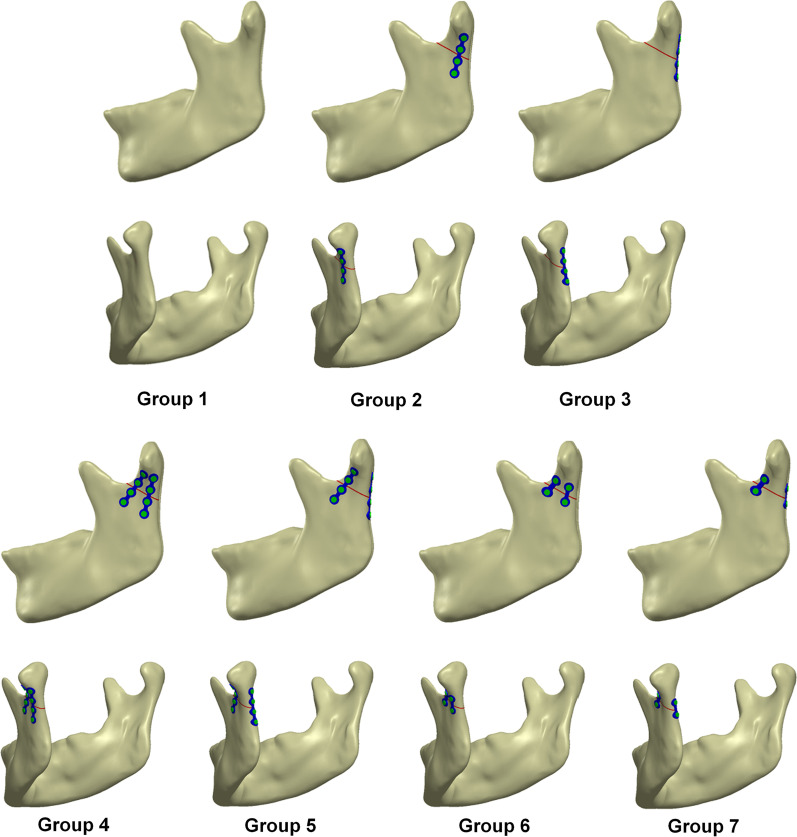

Seven different FEA models for subcondylar fracture fixation using miniplates at different positions and of different lengths. Group 1 was the control group. Group 2–7 were the experimental group and internal fixation was performed by different fixation strategies

Fig. 3

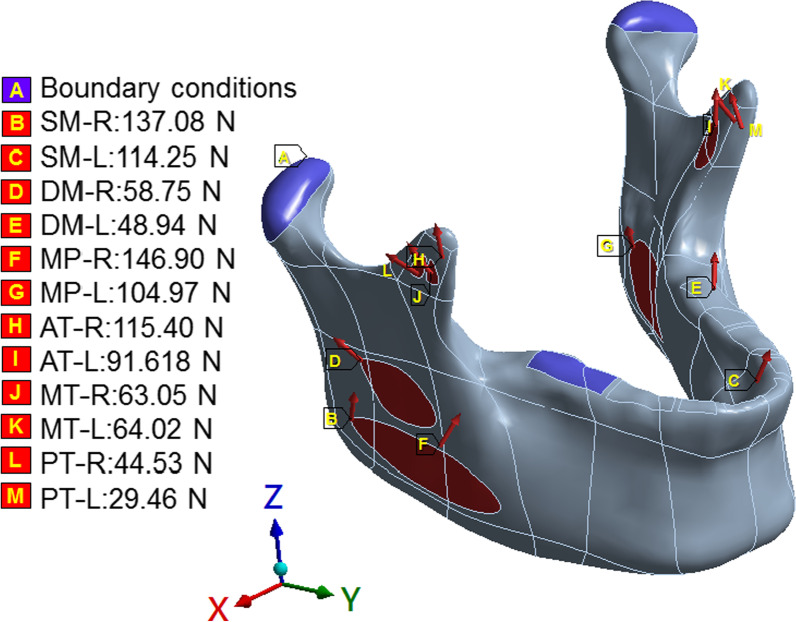

Position of loading conditions and boundary conditions in finite element analysis model

Fig. 4

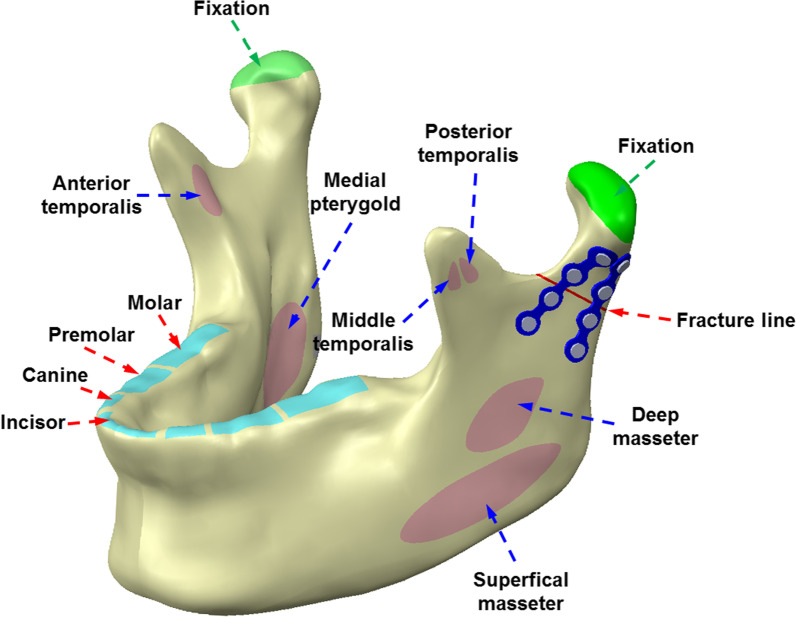

Effect of muscle force during right unilateral molar clench

Fig. 5

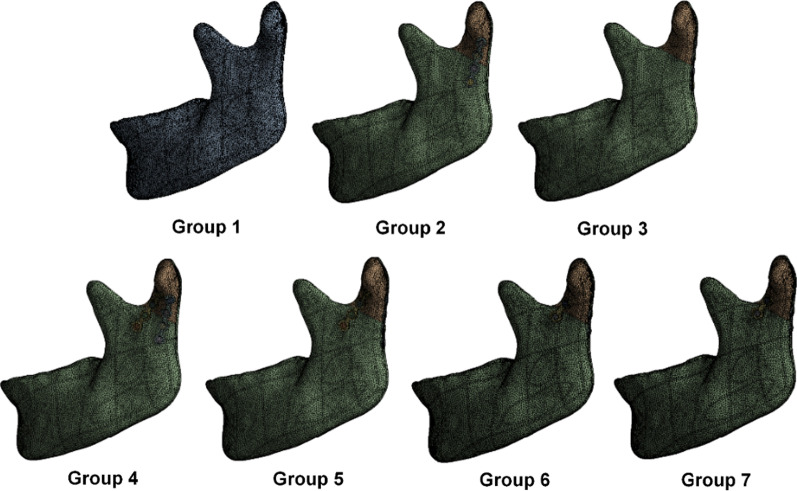

Computer model mesh for this study

Fig. 6

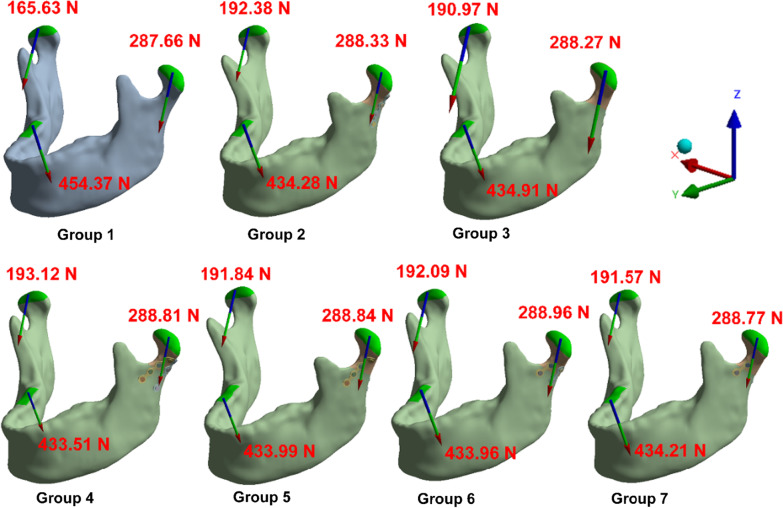

Illustrations of magnitude and direction of the reaction force on the left and right TMJ in each group

Fig. 7

Von Mises stress distribution on the miniplates and screws in each group

Fig. 8

Von Mises stress distribution on the overall structure of the mandibular bone in each group

Fig. 9

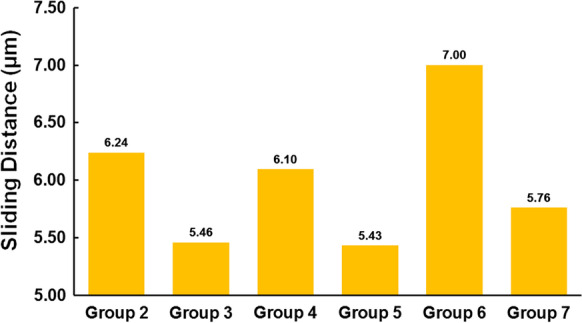

Maximum sliding distance of the oblique surface on the mandibular condyle fracture site

Fig. 10

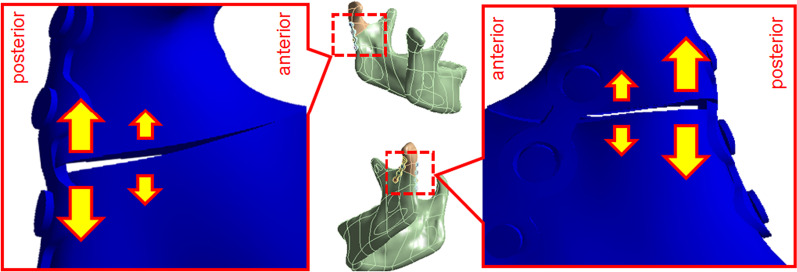

After occlusal force was applied, the interval between two segments was longer at posterior site than the anterior. (The figure showed the results of deformation magnified by 520 times)
