From Alpha to Zeta: Identifying Variants and Subtypes of SARS-CoV-2 Via Clustering

Abstract

The availability of millions of SARS-CoV-2 (Severe Acute Respiratory Syndrome-Coronavirus-2) sequences in public databases such as GISAID (Global Initiative on Sharing All Influenza Data) and EMBL-EBI (European Molecular Biology Laboratory-European Bioinformatics Institute) (the United Kingdom) allows a detailed study of the evolution, genomic diversity, and dynamics of a virus such as never before. Here, we identify novel variants and subtypes of SARS-CoV-2 by clustering sequences in adapting methods originally designed for haplotyping intrahost viral populations. We asses our results using clustering entropy-the first time it has been used in this context. Our clustering approach reaches lower entropies compared with other methods, and we are able to boost this even further through gap filling and Monte Carlo-based entropy minimization. Moreover, our method clearly identifies the well-known Alpha variant in the U.K. and GISAID data sets, and is also able to detect the much less represented (<1% of the sequences) Beta (South Africa), Epsilon (California), and Gamma and Zeta (Brazil) variants in the GISAID data set. Finally, we show that each variant identified has high selective fitness, based on the growth rate of its cluster over time. This demonstrates that our clustering approach is a viable alternative for detecting even rare subtypes in very large data sets.

Keywords: clustering; entropy; fitness; genomic surveillance; viral subtypes; viral variants.

FIG. 1.

Subtype distribution (GISAID data set, 15-day window, relative count).

FIG. 2.

Subtype distribution (GISAID data set, cumulative, relative count).

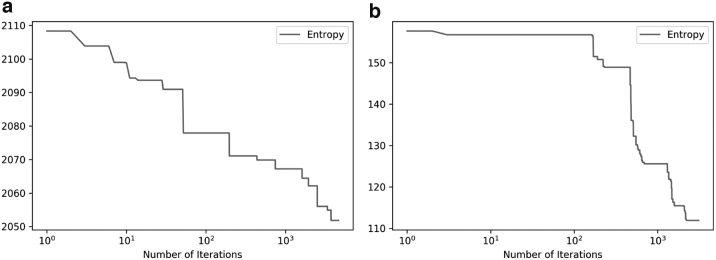

FIG. 3.

The entropy descent of our Monte Carlo method applied to the initial clustering obtained by CliqueSNV-based clustering of the GISAID 1A data set after having preprocessed to (a) $n=28,000$ tags and (b) $n=1000$ tags. Note that in the latter table, the entropy is in terms of just the 1000 tags—the optimal clustering in terms of these 1000 tags then applied to the original set of all columns, for the final entropy 945.9 seen in Table 6. Note that a threshold of $\theta =1000$ (see Section 2.4) was used in both cases.

FIG. 4.

Subtype distribution (the U.K. data set, weekly window, relative count) produced our CliqueSNV-based clustering method. The subtype in the bottom right corner contributes to sequences that correspond to the Alpha variant.
