. 2021 Apr-Jun;47(2):249-255.
doi: 10.12865/CHSJ.47.02.15. Epub 2021 Jun 30.

About the Experimental and Virtual Analysis of Orthopedic Implant Systems for the Revision of the Hip Prosthesis with Morcellated Bone Graft and Reconstruction Net

Daniel Cosmin Călin  1 , Dragoş Laurenţiu Popa  2 , Alexandru Florian Grecu  3 , Dan Cristian Grecu  3 , Răducu Nicolae Nemeş  4 , Gabriel Buciu  5
Affiliations

About the Experimental and Virtual Analysis of Orthopedic Implant Systems for the Revision of the Hip Prosthesis with Morcellated Bone Graft and Reconstruction Net

Daniel Cosmin Călin et al. Curr Health Sci J. 2021 Apr-Jun.

Abstract

Introduction: Prosthesis loosening is an alteration of the function and position of a total hip prosthesis with reference to the initial surgical moment. The main mechanism unanimously accepted for aseptic prosthetic losses at the level of the cup is represented by the biological mechanism.

Material and method: Experimental and virtual, interdisciplinary tools, techniques and methods were used to determine the behavior of the hip replacement prosthesis with the morcellated graft and the reconstruction net. Performing an orthopedic assembly with a morcellated bone graft and reconstruction net. An assembly was performed on a hip joint taken from an animal (cow). The biological material and the components of the prosthesis were prepared similarly to the revision prosthesis intervention. Experimental testing of orthopedic assembly with morcellated bone graft and reconstruction net. This assembly was tested on a universal machine to determine the maximum force at which it yields. This was 1790 Kgf, i.e. 17559 N. Virtual experimental testing of the hip joint with orthopedic revision assembly with a morcellated bone graft and reconstruction net for normal gait loading. The orthopedic assembly with the morcellated graft and the reconstruction net was reconstructed in the virtual environment. Normal load was used. Results maps were obtained.

Conclusions: Analyzing the results from the two tests, experimental and virtual, and important conclusions were drawn regarding this orthopedic assembly.

Keywords: Lupus nephritis; autoantibody profile; renal biopsy.

PubMed Disclaimer

Conflict of interest statement

None to declare.

Figures

Figure 1
Figure 1
Intraoperative appearance with false membranes and periprosthetic corrosion areas
Figure 2
Figure 2
Tools used to adapt the bone component to prosthetic elements
Figure 3
Figure 3
Additional materials used to obtain orthopedic fixtures
Figure 4
Figure 4
Obtaining the morcellated bone graft
Figure 5
Figure 5
Marking areas to be removed
Figure 6
Figure 6
Remove marked areas and position the cup
Figure 7
Figure 7
Location of the morcellated bone graft
Figure 8
Figure 8
Preparation of the reconstruction net
Figure 9
Figure 9
Fixing the reconstruction net with screws
Figure 10
Figure 10
Final assembly with morcellated bone graft and reconstruction net
Figure 11
Figure 11
Assembly with a morcellated bone graft attached to the EDZ 20 test machine
Figure 12
Figure 12
Images and measurements made with the stereomicroscope
Figure 13
Figure 13
Ansys Workbench program interface after loading the analyzed model
Figure 14
Figure 14
The finite element structure of the analyzed system
Figure 15
Figure 15
The displacement map
Figure 16
Figure 16
The strain map
Figure 17

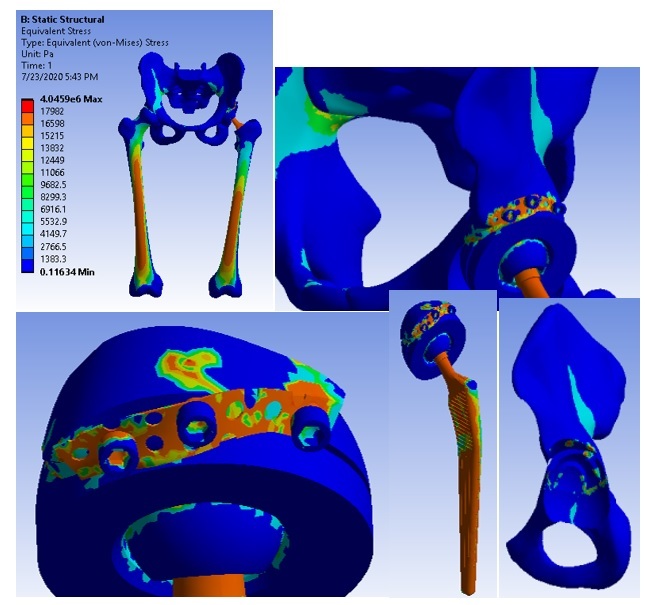

Figure 17
Stress maps
See this image and copyright information in PMC

References

    1. Ionescu M, Baciu CL, Buzescu G. Postero-external access path on the hip (in Romanian) Chirurgia (Bucharest) 1962;11(1):131–137.
    1. Weber ER, Daube JR, Coventry MB. Periphereal neuropathy associated with total hip arthroplasty. J B Jt Surg. 1976;58(1):66–73. - PubMed
    1. Witvoet J. Ortopedie. 1. Vol. 4. Paris, 44667: Techniques; 1990. Technique de pose d’une prothese totale de hanche a cotyle vise. Encyl. Med. Chir; pp. 1–14.
    1. Wootson ST. 1. Vol. 1. New York, USA: Lippincott-Raven; 1998. Blood conservation (Perioperative Considerations) in The Adult Hip. (Callaghan J.J., Rosenberg G.A., Rubash E.H.) pp. 625–632.
    1. Zaharia C. In: Elements of locomotor system pathology (in Romanian. Zaharia C, editor. Bucharest: Padeica; 1994. Hip arthroplasty; pp. 303–310.
