. 2021 Oct 27;21(21):7116.
doi: 10.3390/s21217116.

Impact of Lung Segmentation on the Diagnosis and Explanation of COVID-19 in Chest X-ray Images

Lucas O Teixeira  1 , Rodolfo M Pereira  2 , Diego Bertolini  3 , Luiz S Oliveira  4 , Loris Nanni  5 , George D C Cavalcanti  6 , Yandre M G Costa  1
Affiliations

Impact of Lung Segmentation on the Diagnosis and Explanation of COVID-19 in Chest X-ray Images

Lucas O Teixeira et al. Sensors (Basel). .

Abstract

COVID-19 frequently provokes pneumonia, which can be diagnosed using imaging exams. Chest X-ray (CXR) is often useful because it is cheap, fast, widespread, and uses less radiation. Here, we demonstrate the impact of lung segmentation in COVID-19 identification using CXR images and evaluate which contents of the image influenced the most. Semantic segmentation was performed using a U-Net CNN architecture, and the classification using three CNN architectures (VGG, ResNet, and Inception). Explainable Artificial Intelligence techniques were employed to estimate the impact of segmentation. A three-classes database was composed: lung opacity (pneumonia), COVID-19, and normal. We assessed the impact of creating a CXR image database from different sources, and the COVID-19 generalization from one source to another. The segmentation achieved a Jaccard distance of 0.034 and a Dice coefficient of 0.982. The classification using segmented images achieved an F1-Score of 0.88 for the multi-class setup, and 0.83 for COVID-19 identification. In the cross-dataset scenario, we obtained an F1-Score of 0.74 and an area under the ROC curve of 0.9 for COVID-19 identification using segmented images. Experiments support the conclusion that even after segmentation, there is a strong bias introduced by underlying factors from different sources.

Keywords: COVID-19; chest X-ray; explainable artificial intelligence; semantic segmentation.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Proposed methodology.
Figure 2
Figure 2
Lungs segmentation on CXR image. (a) CXR image. (b) Binary mask. (c) Segmented lungs.
Figure 3
Figure 3
CXR with burned-in annotations. (a) Example 1. (b) Example 2.
Figure 4

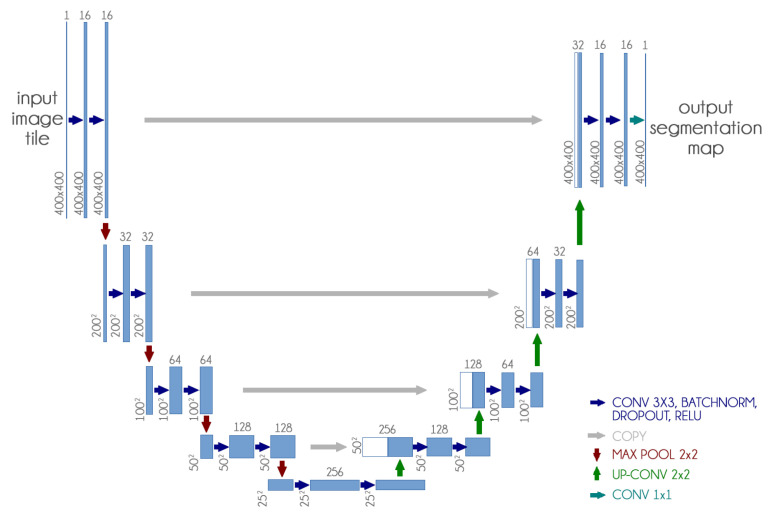

Figure 4
Custom U-Net architecture.
Figure 5
Figure 5
RYDLS-20-v2 image samples. (a) Lung opacity. (b) COVID-19. (c) Normal.
Figure 6
Figure 6
Data augmentation examples.
Figure 7
Figure 7
LIME example. (a) Full CXR image. (b) Segmented CXR image.
Figure 8
Figure 8
Grad-CAM example. (a) Full CXR image. (b) Segmented CXR image.
Figure 9
Figure 9
COVID-19 Generalization ROC Curve.
Figure 10
Figure 10
LIME heatmaps. (a) VGG16. (b) ResNet50V2. (c) InceptionV3.
Figure 11
Figure 11
Grad-CAM heatmaps. (a) VGG16. (b) ResNet50V2. (c) InceptionV3.
Figure 12
Figure 12
F1-Score results boxplot stratified by segmentation.
Figure 13
Figure 13
Grad-CAM showing a large gradient on CXR annotations. (a) Example 1. (b) Example 2.
Figure 14
Figure 14
F1-Score results boxplot stratified by segmentation and model.
Figure 15
Figure 15
Segmented InceptionV3 Confusion Matrix.
