. 2021 Nov 22;11(11):903.
doi: 10.3390/membranes11110903.

Incorporation of Au Nanoparticles on ZnO/ZnS Core Shell Nanostructures for UV Light/Hydrogen Gas Dual Sensing Enhancement

Yu-Sheng Tsai  1 , Deng-Yi Wang  2 , Jia-Jie Chang  2 , Keng-Tien Liang  2 , Ya-Hsuan Lin  2 , Chih-Chen Kuo  2 , Ssu-Han Lu  2 , Yewchung Sermon Wu  1 , Lukas Jyuhn-Hsiarn Lee  3   4   5   6 , Hsiang Chen  2 , Dong-Sing Wuu  2
Affiliations

Incorporation of Au Nanoparticles on ZnO/ZnS Core Shell Nanostructures for UV Light/Hydrogen Gas Dual Sensing Enhancement

Yu-Sheng Tsai et al. Membranes (Basel). .

Abstract

ZnO/ZnS nanocomposite-based nanostructures exhibit dual light and gas sensing capabilities. To further boost the light/dual sensing properties, gold nanoparticles (Au NPs) were incorporated into the core-shell structures. Multiple material characterizations revealed that Au NPs were successfully well spread and decorated on ZnO/ZnS nanostructures. Furthermore, our findings show that the addition of Au NPs could enhance both 365 nm UV light sensing and hydrogen gas sensing in terms of light/gas sensitivity and light/gas response time. We postulate that the optimization of gas/light dual sensing capability may result from the induced electric field and inhabitation of electron-hole recombination. Owing to their compact size, simple fabrication, and stable response, ZnO/ZnS/Au NPs-based light/gas dual sensors are promising for future extreme environmental monitoring.

Keywords: Au nanoparticle; UV light; ZnO/ZnS core shell; dual sensing; electric field; hydrogen.

PubMed Disclaimer

Conflict of interest statement

There are no conflict of interest to declare. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the result.

Figures

Figure 1
Figure 1
Schematic diagram of the manufacturing process of ZnO/ZnS/Au NPs on SiO2 substrates.
Figure 2
Figure 2
(a) An FESEM image of ZnO nanorods; (b,c) FESEM images of ZnO/ZnS/Au NPs nanocomposites; (d) A cross-section SEM image of ZnO/ZnS/Au NPs. (e) EDX analysis of ZnO/ZnS/Au NRs.
Figure 3
Figure 3
(a,b) TEM images of ZnO/ZnS/Au NPs nanocomposites in different locations.
Figure 4
Figure 4
(a) The O 1s (b) Zn 2p (c) S 2p, and (d) Au 4f XPS spectra of the nanocomposite based on ZnO/ZnS/Au NPs.
Figure 5
Figure 5

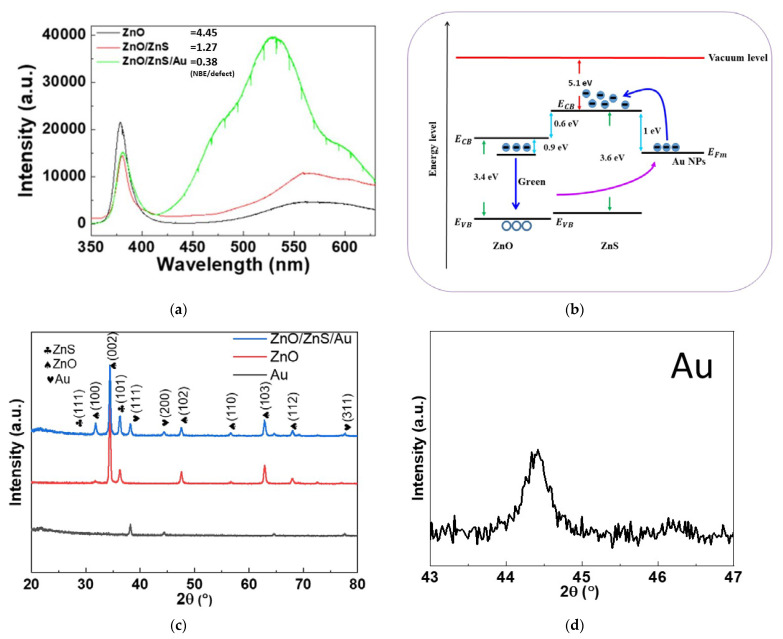

(a) PL measurements of ZnO NRs, ZnO/ZnS NRs, and ZnO/ZnS/Au NP nanocomposites; (b) The mechanism of defect luminescence enhancement by Au NPs (c) XRD patterns of ZnO NRs and ZnO/ZnS/Au NPs. The XRD peak of ZnO/ZnS/Au: Au (d) and ZnS (e).
Figure 5
Figure 5
(a) PL measurements of ZnO NRs, ZnO/ZnS NRs, and ZnO/ZnS/Au NP nanocomposites; (b) The mechanism of defect luminescence enhancement by Au NPs (c) XRD patterns of ZnO NRs and ZnO/ZnS/Au NPs. The XRD peak of ZnO/ZnS/Au: Au (d) and ZnS (e).
Figure 6
Figure 6
(a) Hydrogen gas sensing behaviors of ZnO/ZnS and ZnO/ZnS/Au NPs. (b) Hydrogen gas sensing behaviors of ZnO/ZnS/Au NPs at 100, 150, 200, 250, and 300 °C. (c) Selectivity between CO and H2 gas. (d) IV curves of ZnO/ZnS and ZnO/ZnS with Au NPs (ID: Dark current and IL: Light current). (e) UV sensing behaviors of the samples. The light sensing rise and recovery times of (f) ZnO/ZnS and (g) ZnO/ZnS with Au NPs. The gas sensing rise and recovery times of (h) ZnO/ZnS and (i) ZnO/ZnS with Au NPs. (j) The detailed mechanisms of dual sensing enhancement.
Figure 6
Figure 6
(a) Hydrogen gas sensing behaviors of ZnO/ZnS and ZnO/ZnS/Au NPs. (b) Hydrogen gas sensing behaviors of ZnO/ZnS/Au NPs at 100, 150, 200, 250, and 300 °C. (c) Selectivity between CO and H2 gas. (d) IV curves of ZnO/ZnS and ZnO/ZnS with Au NPs (ID: Dark current and IL: Light current). (e) UV sensing behaviors of the samples. The light sensing rise and recovery times of (f) ZnO/ZnS and (g) ZnO/ZnS with Au NPs. The gas sensing rise and recovery times of (h) ZnO/ZnS and (i) ZnO/ZnS with Au NPs. (j) The detailed mechanisms of dual sensing enhancement.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Zhao S., Shen Y., Yan X., Zhou P., Yin Y., Lu R., Han C., Cui B., Wei D. Complex-surfactant-assisted hydrothermal synthesis of one-dimensional ZnO nanorods for high-performance ethanol gas sensor. Sens. Actuators B Chem. 2019;286:501–511. doi: 10.1016/j.snb.2019.01.127. - DOI
    1. Ding P., Xu D., Dong N., Chen Y., Xu P., Zheng D., Li X. A high-sensitivity H2S gas sensor based on optimized ZnO-ZnS nano-heterojunction sensing material. Chin. Chem. Lett. 2020;31:2050–2054. doi: 10.1016/j.cclet.2019.11.024. - DOI
    1. Yi H., Siwei X., Xiang L., Jie J., Dandan S., Shiyong G. Performance of self-powered UV photodetector based on ZnO/ZnS Heterojunction. Chin. J. Mater. Res. 2019;33:523–529.
    1. Khanlary M.R., Tarzi S. Study of structural, optical and morphological properties of ZnO/ZnS hetrostructures deposited by spray pyrolysis method. Opt. Quantum Electron. 2021;53:13. doi: 10.1007/s11082-020-02657-2. - DOI
    1. Deb S., Kalita P. Green synthesis of copper sulfide (CuS) nanostructures for heterojunction diode applications. J. Mater. Sci. Mater. Electron. 2021;32:24125–24137. doi: 10.1007/s10854-021-06879-2. - DOI
