Neural nano-optics for high-quality thin lens imaging

Abstract

Nano-optic imagers that modulate light at sub-wavelength scales could enable new applications in diverse domains ranging from robotics to medicine. Although metasurface optics offer a path to such ultra-small imagers, existing methods have achieved image quality far worse than bulky refractive alternatives, fundamentally limited by aberrations at large apertures and low f-numbers. In this work, we close this performance gap by introducing a neural nano-optics imager. We devise a fully differentiable learning framework that learns a metasurface physical structure in conjunction with a neural feature-based image reconstruction algorithm. Experimentally validating the proposed method, we achieve an order of magnitude lower reconstruction error than existing approaches. As such, we present a high-quality, nano-optic imager that combines the widest field-of-view for full-color metasurface operation while simultaneously achieving the largest demonstrated aperture of 0.5 mm at an f-number of 2.

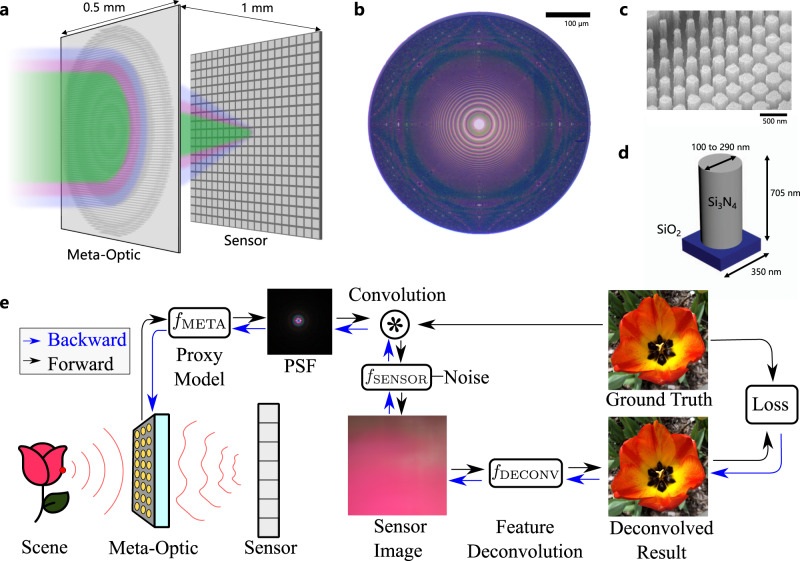

Fig. 1. Neural nano-optics end-to-end design.

Our learned, ultrathin meta-optic as shown in (a) is 500 μm in thickness and diameter, allowing for the design of a miniature camera. The manufactured optic is shown in (b). A zoom-in is shown in (c) and nanopost dimensions are shown in (d). Our end-to-end imaging pipeline shown in e is composed of the proposed efficient metasurface image formation model and the feature-based deconvolution algorithm. From the optimizable phase profile, our differentiable model produces spatially varying PSFs, which are then patch-wise convolved with the input image to form the sensor measurement. The sensor reading is then deconvolved using our algorithm to produce the final image. The illustrations above “Meta-Optic” and “Sensor” in (e) were created by the authors using Adobe Illustrator.

Fig. 2. Experimental imaging results.

Compared to existing state-of-the-art designs, the proposed neural nano-optic produces high-quality wide FOV reconstructions corrected for aberrations. Example reconstructions are shown for a still life with fruits in (a), a green lizard in (b), and a blue flower in (c). Insets are shown below each row. We compare our reconstructions to ground truth acquisitions using a high-quality, six-element compound refractive optic, and we demonstrate accurate reconstructions even though the volume of our meta-optic is 550,000× lower than that of the compound optic.

Fig. 3. Meta-optics characterization.

The proposed learned meta-optic is fabricated using electron-beam lithography and dry etching, and the corresponding measured PSFs, simulated PSFs, and simulated MTFs are shown. Before capturing images, we first measure the PSFs of the fabricated meta-optics to account for deviations from the simulation. Nevertheless, the match between the simulated PSFs and the measured PSFs validates the accuracy of our metasurface proxy model. The proposed learned design maintains consistent PSF shape across the visible spectrum and for all field angles across the FOV, facilitating downstream image reconstruction. In contrast, the PSFs of the traditional meta-optic and the cubic design proposed by Colburn et al. both exhibit severe chromatic aberrations. The red (606 nm) and blue (462 nm) PSFs of the traditional meta-optic are defocused and change significantly across the FOV. The PSFs for the cubic design exhibit long tails that leave post-deconvolution artifacts.
