. 2021 Dec 20;60(24):19165-19174.
doi: 10.1021/acs.inorgchem.1c02981. Epub 2021 Dec 2.

Icosahedral m-Carboranes Containing Exopolyhedral B-Se and B-Te Bonds

Harrison A Mills  1 , Fadi Alsarhan  1 , Ta-Chung Ong  1 , Milan Gembicky  2 , Arnold L Rheingold  2 , Alexander M Spokoyny  1   3
Affiliations

Icosahedral m-Carboranes Containing Exopolyhedral B-Se and B-Te Bonds

Harrison A Mills et al. Inorg Chem. .

Abstract

Chalcogen-containing carboranes have been known for several decades and possess stable exopolyhedral B(9)-Se and B(9)-Te σ bonds despite the electron-donating ability of the B(9) vertex. While these molecules are known, little has been done to thoroughly evaluate their electrophilic and nucleophilic behavior. Herein, we report an assessment of the electrophilic reactivity of m-carboranylselenyl(II), -tellurenyl(II), and -tellurenyl(IV) chlorides and establish their reactivity pattern with Grignard reagents, alkenes, alkynes, enolates, and electron-rich arenes. These electrophilic reactions afford unique electron-rich B-Y-C (Y = Se, Te) bonding motifs not commonly found before. Furthermore, we show that m-carboranylselenolate, and even m-carboranyltellurolate, can be competent nucleophiles and participate in nucleophilic aromatic substitution reactions. Arene substitution chemistry is shown to be further extended to electron-rich species via palladium-mediated cross-coupling chemistry.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing financial interests.

Figures

Figure 1:
Figure 1:
A. Literature examples of tricoordinate boron centers containing a boron-chalcogen single bond or double bond. B. Literature examples of tetracoordinate boron centers containing boron-chalcogen single bonds. C. Extent of previous studies regarding the reactivity of B-Se and B-Te containing carboranes. Nucleophilic reactivity has been shown between carboranyl chalcogenolates (Y = Se, Te) and electrophilic reactivity has been shown with carboranyl selenyl (II) chlorides, though not with tellurenyl (II) or (IV) chlorides.
Figure 2:
Figure 2:
This work, overview of compounds synthesized by the electrophilic and nucleophilic reactions of selenium and tellurium-containing meta-carboranes.
Figure 3:
Figure 3:

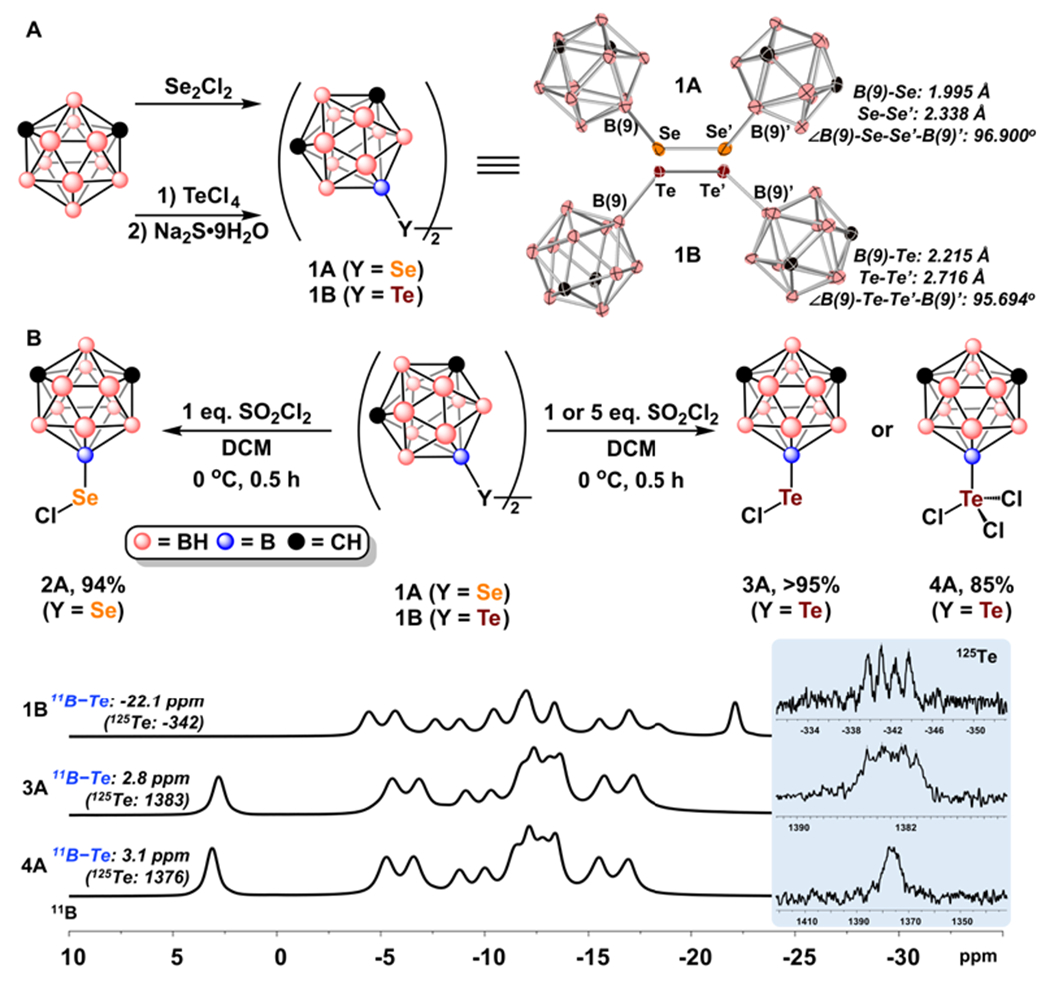

A. Synthesis of dichalcogenides 1A and 1B including their respective crystallographically derived structures. Thermal ellipsoids are drawn at 50% probability, hydrogens are omitted for clarity. B. Synthesis of electrophilic selenyl (II), tellurenyl (II), and tellurenyl (IV) reagents 2A, 3A, and 4A from carboranyl dichalcogenides. Comparison of 11B and 125Te NMR for compounds 1B, 3A, and 4A.
Figure 4:
Figure 4:
Reactions of 2A with common carbon-based nucleophiles. aReaction was performed in anhydrous diethyl ether under an inert atmosphere at r.t.. bReaction was performed in anhydrous dichloromethane at r.t.. cReaction was performed in anhydrous toluene with 2 eq. of AlCl3 at 50 °C. See SI for full experimental details. Thermal ellipsoids are drawn at 50% probability, hydrogens are omitted for clarity.
Figure 5:
Figure 5:
A. Reaction of 3A with phenylmagnesium bromide in anhydrous Et2O and phenylacetylene in various solvents. B. Reaction of 4A with phenylacetylene, including in situ 11B and 125Te NMR characterization of reaction intermediates, 4B* and 4B*’.
Figure 6:
Figure 6:
A. SNAr of 5A and 6A with perfluorotoluene. 77Se and 125Te NMR of 5B and 6B. B. Reaction of 6A with palladium oxidative addition complex.
See this image and copyright information in PMC

References

    1. Rappaport Z The Chemistry of Organic Selenium and Tellurium Compounds; John Wiley & Sons: New York, 2013; Vol. 4
    2. Block E; Glass RS; Gruhn N; Jin J; Lorance E; Zakai UI; Zhang S-Z Chemistry of Mixed Sulfur-, Selenium-, or Tellurium- and Silicon, or Tin-Containing Heterocycles. Phosphorus, Sulfur, and Silicon and the Related Elements 2008. 183, 4, 856–862.
    3. Kumar S; Helt J-CP; Autschbach J; Detty MR A New Reaction of Organoselenium Compounds: Alkyl Transfer from Diorganoselenium(IV) Dibromides to Give Alkenoic Acids to Give γ- and δ-Lactones. Organometallics 2009, 28, 12, 3426–3436.
    4. Evans DH; Gruhn NE; Jin J; Li B; Lorance E; Okumara N; Macías-Ruvalcaba NA; Zakai UI; Zhang S-Z; Block E; Glass RS Electrochemical and Chemical Oxidation of Dithia-, Diselena-, Ditellura-, Selenathia-, and Tellurathiamesocycles and the Stability of Oxidized Species. J. Org. Chem 2010, 74, 6, 1997–2009.
    5. Garrett GE; Gibson GL; Straus RN; Seferos DS; Taylor MS Chalcogen Bonding in Solution: Interactions of Benzotelluradiazoles with Anionic and Uncharged Lewis Bases. J. Am. Chem. Soc 2015, 137, 12, 4126–4133.
    6. Zhou B; Gabbai FP Lewis Acidic Telluronium Cations: Enhanced Chalcogen-Bond Donor Properties and Application to Transfer Hydrogenation Catalysis. Organometallics 2021. DOI: 10.1021/cas.organomet.1c00279. - DOI
    7. Lin T-P; Gabbai FP Two-Electron Redox Chemistry at the Dinuclear Core of a TePt Platform: Chlorine Photoreductive Elimination and Isolation of a TeVPtI Complex. J. Am. Chem. Soc 2012, 134, 29, 12230–12238.
    8. Lin T-P; Gabbai FP Telluronium Ions as σ-Acceptor Ligands. Angew. Chem. Int. Ed 2013, 52, 14, 3864–3868.
    9. Yang H; Lin T-P; Gabbai FP Telluroether to Telluroxide Conversion in the Coordination Sphere of a Metal: Oxidation-Induced Umpolung of a Te-Au Bond. Organometallics 2014, 33, 17, 4368–4373.
    10. Kryman MW; Nasca JN; Watson DF; Detty MR Selenorhodamine Dye-Sensitized Solar Cells: Influence of Structure and Surface-Anchoring Mode on Aggregation, Persistence, and Photochemical Performance. Langmuir 2016, 32, 6, 1521–1532.
    11. Ye S; Jansaz L; Zajaczkowski W; Manion JG; Mondal A; Marszalek T; Andrienko D; Müllen K; Pisula W; Seferos DS Self-Organization and Charge Transport Properties of Selenium and Tellurium Analogues of Polythiophene. Macromol. Rapid Commun 2019, 40, 1, 1800596.
    12. Scholes DT; Yee PY; McKeown GR; Li S; Kang H; Lindemuth JR; Xia X; King SC; Seferos DS; Tolbert SH; Schwartz BJ Designing Conjugated Polymers for Molecular Doping: The Roles of Crystallinity, Swelling, and Conductivity in Sequentially-Doped Selenophene-Based Copolymers. Chem. Mater 2019, 31, 1, 73–82.
    13. Manion JG; Panchuk JR; Seferos DS Applying Heteroatom Substitution in Organic Photovoltaics. Chem. Rec 2019, 19, 6, 1113–1122.
    14. Hicks GEJ; Jarrett-Wilkins CN; Panchuk JR; Manion JG; Seferos DS Oxidation promoted self-assembly of π-conjugated polymers. Chem. Sci. 2020, 11, 6383.
    15. Kryman MW; Schamerhorn GA; Yung K; Sathyamoorthy B; Sukumaran DK; Ohulchanskyy TY; Benedeict JB; Detty MR Organotellurium Fluorescence Probes for Redox Reactions: 9-Aryl-3,6-diaminotelluroxanthylium Dyes and Their Telluroxides. Organometallics 2013, 32, 15, 4321–4333.
    16. Stockett MH; Kjær C; Linder MK; Detty MR; Nielsen SB Luminescence spectroscopy of chalcogen substituted rhodamine cation in vacuo. Photochem. Photobiol. Sci 2017, 16, 779–784.
    17. Carrera EI; Seferos DS Ring Opening of π-delocalized 2,5-Diphenyltelurophene by Chemical or Self-Sensitized Aerobic Photooxidation. Organometallics 2017, 36, 14, 2612–2621.
    18. Lutkus LV; Rettig ID; Davies KS; Hill JE; Lohman JE; Eskew MW; Detty MR; McCormick TM Photocatalytic Aerobic Thiol Oxidation with a Self-Sensitized Tellurorhodamine Chromophore. Organometallics 2017, 36, 14, 2588–2596.
    19. Drummond BH; Hoover GC; Gillet AJ; Aizawa N; Myers WK; McAllister BT; Jones STE; Pu Y-J; Credgington D; Seferos DS Selenium Susbtitution Enhances Reverse Intersystem Crossing in a Delayed Fluorescence Emitter. J. Phys. Chem. C 2020, 124, 6364–6370.
    20. Cao W; McCallum NC; Ni QZ; Li W; Boyce H; Mao H; Zhou X; Sun H; Thompson MP; Battistela C; Wasielewski MR; Dhinojwala A; Shawkey MD; Burkhart MD; Wang Z; Gianneschi NC Selenomelanin: An Abiotic Selenium Analogue of Pheomelanin. J. Am. Chem. Soc 2020, 142, 29, 12802–12810.
    21. Glass RB; Berry MJ; Block E; Boakye HT; Carlson BA; Gailer J; George GN; Gladyshev VN; Hatfield DL; Jacobsen NE; Johnson S; Kahakachchi C; Kamiński R; Manley SA; Mix H; Pickering IJ; Prenner EJ; Saira K; Skowrońska A; Tyson JF; Uden PC; Wu Q; Xu X-M; Yamdagni R; Zhang Y Insights into the Chemical Biology of Selenium. Phosphorus, Sulfur, and Silicon and the Related Elements 2008, 183, 4, 924–930.
    22. Block E; Booker SJ; Flores-Penalba S; George G; Gundala G; Landgraf BJ; Liu J; Lodge SN; Pushie MJ; Rozovsky S; Vattekkatte A; Yaghi R; Zeng H Trifluoroselenomethionine – a New Non-Natural Amino Acid. ChemBioChem 2016, 17, 18, 1738–1751.
    23. Zhao Z; Shimon D; Metanis N Chemoselective Copper-Mediated Modification of Selenosysteines in Peptides and Proteins. J. Am. Chem. Soc 2021, 143, 12817–12824.
    1. Wentz KE; Molino A; Weisflog SL; Kaur A; Dickie DA; Wilson DD; Gilliard RJ Stabilization of the Elusive 9-Carbene-9-Borafluorene Monoanion. Angew. Chem. Int. Ed 2021, 60, 23, 13065–13072. - PubMed
    2. Clive DLJ; Menchen SM Conversion of Aldehydes and Ketones into Selenoacetals: Use of Tris(phenylseleno)borane and Tris(methylseleno)borane. J. Org. Chem 1979, 44, 24, 4279–4285. - PubMed
    3. Dolati H; Denker L; Trzaskowski B; Frank R Superseeding β-Diketiminato Ligands: An Amido Imidazoline-2-Imine Ligand Stabilizes the Exhaustive Series of B=X Boranes (X=O, S, Se, Te). Angew. Chem. Int. Ed 2020, 60, 9, 4633–4639. - PubMed
    4. Köster R; Seidel G; Yalpani M; Siebert W; Gangus B 1,5-Cyclooctanediboryl Selenides. Inorganic Synthesis 1992, 29, 70–77. - PubMed
    5. Männig D; Narula CK; Nöth H; Wietelmann U Beiträge zur Chemie des Bors, 159. [2 + 2]-Cycloadditionen von (tert-Butylimino)(2,2,6,6-tetramethylpiperdino)boran mit Kohlenstoffdichalkogeniden. Chem. Ber 1985, 118, 9, 3748–3758. - PubMed
    6. Yalpani M; Köster R; Boese R Nitrogen Base – Dialkyl-1,2,4,3,5-triselenadiborolanes. Chem. Ber 1990, 123, 4, 707–712. - PubMed
    7. Köuster R; Seidel G; Schüuβler W; Wrackmeyer B Die ersten Organobor-Tellur-Verbindungen. Chem. Ber 1995, 128, 1, 87–89. - PubMed
    8. Liu S; Légaré M-A; Auerhammer D; Hofmann A; Braunschweig H The First Boron-Tellurium Double Bond: Direct Insertion of Heavy Chalcogens into a Mn=B Double Bond. Angew. Chem. Int. Ed 2017, 56, 49, 15760–15763. - PubMed
    9. Liu S; Légaré M-A; Hofmann A; Rempel A; Hagspiel S; Braunschweig H Synthesis of unsymmetrical B2E2 and B2E3 heterocycles by borylene insertion into boradichalcogeniranes. Chem. Sci 2019, 10, 4662–4666. - PubMed
    10. Liu S; Légaré M-A; Hofmann A; Braunschweig H A Boradiselenirane and a Boraditellurirane: Isolable Heavy Analogs of Dioxiranes and Dithiiranes. J. Am. Chem. Soc 2018, 140, 36, 11223–11226. - PubMed
    11. Joseph B; Gomosta S; Prakash T; Phukan AK; Ghosh S Chalcogen Stabalized bis-Hydridoborate Complexes of Cobalt: Analogues of Tetracyclo[4.3.0.02,4.03,5]nonane. Chem. Eur. J 2020, 26, 70, 16824–16832. - PubMed
    12. Ramalalshmi R; Saha K; Roy DK; Varghese B; Phukan AK; Ghosh S New Routes to a Series of σ-Borane/Borate Complexes of Molybdenum and Ruthenium. Chem. Eur. J 2015, 21, 48, 17191–17195. - PubMed
    13. Okio CKYA; Levason W; Monzittu FM; Reid G Complexes of BX3 with EMe2 (X = F, Cl, Br, I; E = Se or Te): Synthesis, multinuclear NMR spectroscopic and structural studies. J. Organomet. Chem 2017, 848, 232–238. - PubMed
    14. Okio CKYA; Levason W; Monzittu FM; Reid G Systematics of boron halide complexes with dichalcogenoether ligands – Synthesis, structures, and reaction chemistry. J. Organomet. Chem 2018, 854, 140–149. - PubMed
    15. Tokoro Y; Nagai A, Kokado K Chujo Y Synthesis of Organoboron Quinoline-8-thiolate and Quinoline-8-selenolate Complexes and Their Incorporation into the π-Conjugated Polymer Main-Chain. Macromolecules 2009, 42, 8, 2988–2993. - PubMed
    16. Grotthuss E; Nawa F; Bolte M; Lerner H-W; Wagner M Chalcogen-chalcogen-bond activation by an ambiphilic, doubly reduced organoborane. Tetrahedron 2019, 75, 1, 26–30. - PubMed
    17. Braunschweig H; Constantinidis P; Dellermann T; Ewing WC; Fischer I; Hess M; Knight FR; Rempel A; Schneider C; Ullrich S; Vargas A; Woollins JD Highly Strained Heterocycles Constructed from Boron-Boron Multiple Bonds and Heavy Chalcogens. Angew. Chem. Int. Ed 2016, 55, 18, 5606–5609. - PubMed
    18. Geetharani K; Bose SK; Basak D; Suresh VM; Ghosh S A new entry into ferraborane chemistry: Synthesis and characterization of heteroferraborane complexes. Inorganica Chim. Acta 2011, 372, 42–46. - PubMed
    1. Chakrahari KKV; Thakur A; Mondal B; Dhayal RS; Ramkumar V; Ghosh S A close-packed boron-rich 11-vertex molybdaborane with novel geometry. J. Organomet. Chem 2012, 710, 75–79.
    2. Mondal B; Bhattacharyya M; Varghese B; Ghosh S Hypo-electronic triple-decker sandwich complexes: synthesis and structural characterization of [(Cp*Mo)2{μ-η6:η6-B4H4E-Ru(CO)3}] (E = S, Se, Te or Ru(CO)3 and Cp* = η5-C5Me5). Dalton Trans. 2016, 45, 10999–11007.
    3. Roy DK; Bose SK; Geetharani K; Chakrahari KKV; Mobin SM; Ghosh S Synthesis and Structural Characterization of New Divanada- and Diniobaboranes Containing Chalcogen Atoms. Chem. Eur. J 2012, 18, 32, 9983–9991.
    4. Chakrahari KK; Thakur A; Mondal B; Ramkumar V; Ghosh S Hypoelectronic Dimetallaheteroboranes of Group 6 Transition Metals Containing Heavier Chalcogen Elements. Inorg. Chem 2013, 52, 14, 7923–7932.
    5. Kultyshev RG; Liu S; Leung HT; Liu J; Shore SG Synthesis of Mono- and Dihalogenated Derivatives of (Me2S)2B12H10 and Palladium-Catalyzed Boron-Carbon Cross-Coupling Reactions of the Iodides with Grignard Reagents. Inorg. Chem 2003, 42, 10, 3199–3207.
    6. Paetzold P; Englert U; Hansen H-P; Meyer F; Leuschner E 11-Vertex arachno-Clusters with an NB10, SNB9, and SeNB9 Skeleton. Z. Anorg. Allg. Chem 2001, 627, 3, 498–506.
    7. di Biani FF; Laschi F; Zanello P; Ferguson G; Trotter J; O’Riordan GM; Spalding TR Synthesis, structure, spectroscopic and electrochemical study of the paramagnetic compound [2-(η7-C7H7)-7,11-F2–2,1-closo-MoTeB10H8]. J. Chem. Soc., Dalton Trans 2001, 1520–1523.
    8. Ferguson G; Gallagher JF; Kenedy JD; Kelleher A-M; Spalding TR Pentahapto-bonded gold heteroborane clusters [3-(R3P)-closo-2,1-AuTeB10H10]- and [3-(R3P)-closo-3,1,2-AuAs2B9H9]−. Dalton Trans. 2006, 2133–2139.
    9. Faridoon McGarth, M.; Spalding TR; Fontaine XLR; Kennedy JD; Thorton-Pett M Metallaheteroborane Chemistry. Part 6. Synthesis of closo-[2-(η-ligand)-1,2-TeMB10H10] Complexes with M(η-ligand) = Rh(η5-C5Me5) (1), Ru(η6-p-MeC6H4Pri) (2), Ru(η6-C6Me6) (3), and of nido-[6-(η6-C6Me6)-8-(OEt)-6-RuB9H12] (4), their Characterisation by Nuclear Magnetic Resonance Spectroscopy and, for (1) and (3), by X-Ray Crystallography. J. Chem. Soc., Dalton Trans 1990, 1819–1829.
    1. Zakharkin LI; Pisareva IV A New Simple Method for the Production and Some Conversions of B-S Bond-Containing o- and m-Carboranyl. Phosphorus and Sulfur 1984, 20, 357–370.
    2. Chen M; Zhao D; Xu J; Li C; Lu C; Yan H Electrooxidative B-H Functionalization of nido-Carboranes. Angew. Chem. Int. Ed 2021, 60, 14, 7838–7844.
    3. Chen Y; Quan Y; Xie Z 8-Aminoquinoline as a bidentate traceless directing group for Cu-catalyzed selective B(4,5)-H disulfenylation of o-carboranes. Chem. Comm 2020, 56, 12997–13000.
    4. Zakharkin LI; Pisareva IV; Antonovich VA Synthesis of Di(o- and m-Carboran-9-yl) Diselenides by Electrophilic-Substitution Reactions of o- and m-Carboranes with Selenium Chlorides Under the Action of AlCl3, and Reactions of These Products. Zhurnal Obshchei Khimii 1986, 56, 12, 2721–2728.
    5. Zakharkin LI; Pisareva IV Electrophilic Telluration of o- and m-Carboranes with TeCl4 Under the Action of AlCl3. Izvestiya Akademii Nauk, Seriya Khimicheskaya 1984, 2, 472–473.
    6. Zakharkin LI; Pisareva IV Synthesis and Some Conversions of Derivatives of o- and m-Carborane Containing a B-Te σ Bond. Izvestiya Akademii Nauk SSSR 1987, 4, 877–880.
    7. Olid D;Núñez R;Viñas C; Teixidor F Methods to produce B-C, B-P, B-N and B-S bonds in boron clusters. Chem. Soc. Rev 2013, 42, 3318–3336

    1. For a general review of carboranes, see:

    2. Grimes RN. Carboranes, 3rd ed; Elsevier: Oxford, 2016.
