Determination of the number of observers needed to evaluate a subjective test and its application in two PD-L1 studies

Abstract

In pathological studies, subjective assays, especially companion diagnostic tests, can dramatically affect treatment of cancer. Binary diagnostic test results (ie, positive vs negative) may vary between pathologists or observers who read the tumor slides. Some tests have clearly defined criteria resulting in highly concordant outcomes, even with minimal training. Other tests are more challenging. Observers may achieve poor concordance even with training. While there are many statistically rigorous methods for measuring concordance between observers, we are unaware of a method that can identify how many observers are needed to determine whether a test can reach an acceptable concordance, if at all. Here we introduce a statistical approach to the assessment of test performance when the test is read by multiple observers, as would occur in the real world. By plotting the number of observers against the estimated overall agreement proportion, we can obtain a curve that plateaus to the average observer concordance. Diagnostic tests that are well-defined and easily judged show high concordance and plateau with few interobserver comparisons. More challenging tests do not plateau until many interobserver comparisons are made, and typically reach a lower plateau or even 0. We further propose a statistical test of whether the overall agreement proportion will drop to 0 with a large number of pathologists. The proposed analytical framework can be used to evaluate the difficulty in the interpretation of pathological test criteria and platforms, and to determine how pathology-based subjective tests will perform in the real world. The method could also be used outside of pathology, where concordance of a diagnosis or decision point relies on the subjective application of multiple criteria. We apply this method in two recent PD-L1 studies to test whether the curve of overall agreement proportion will converge to 0 and determine the minimal sufficient number of observers required to estimate the concordance plateau of their reads.

Keywords: Binomial distribution; concordance; inflated binomial distribution; overall agreement proportion; pathological tests.

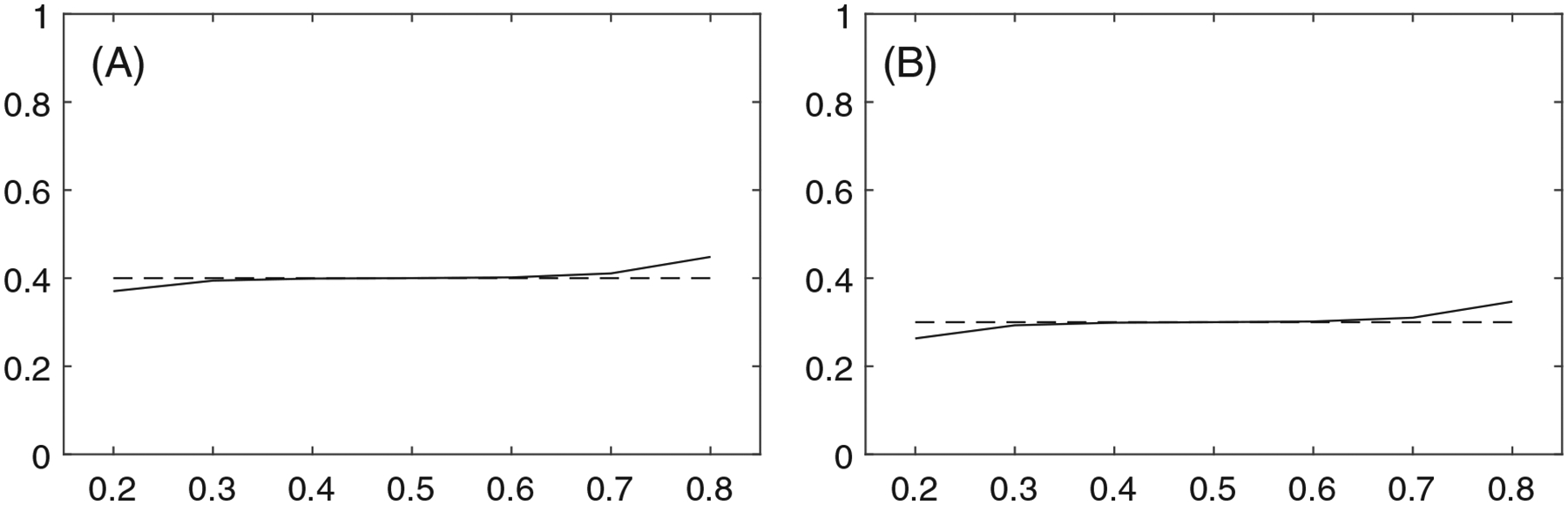

FIGURE C1

Plots of the value of $p$ on the x-axis against the exact (solid line “——”) and approximate (dashed line “– – –”) estimates of ${\theta }_0$ on the y-axis for (A): $m=12,C_m=15,C_0=30,{\theta }_1=0.2$; (B): $m=12,C_m=20,C_0=30,{\theta }_1=0.2$

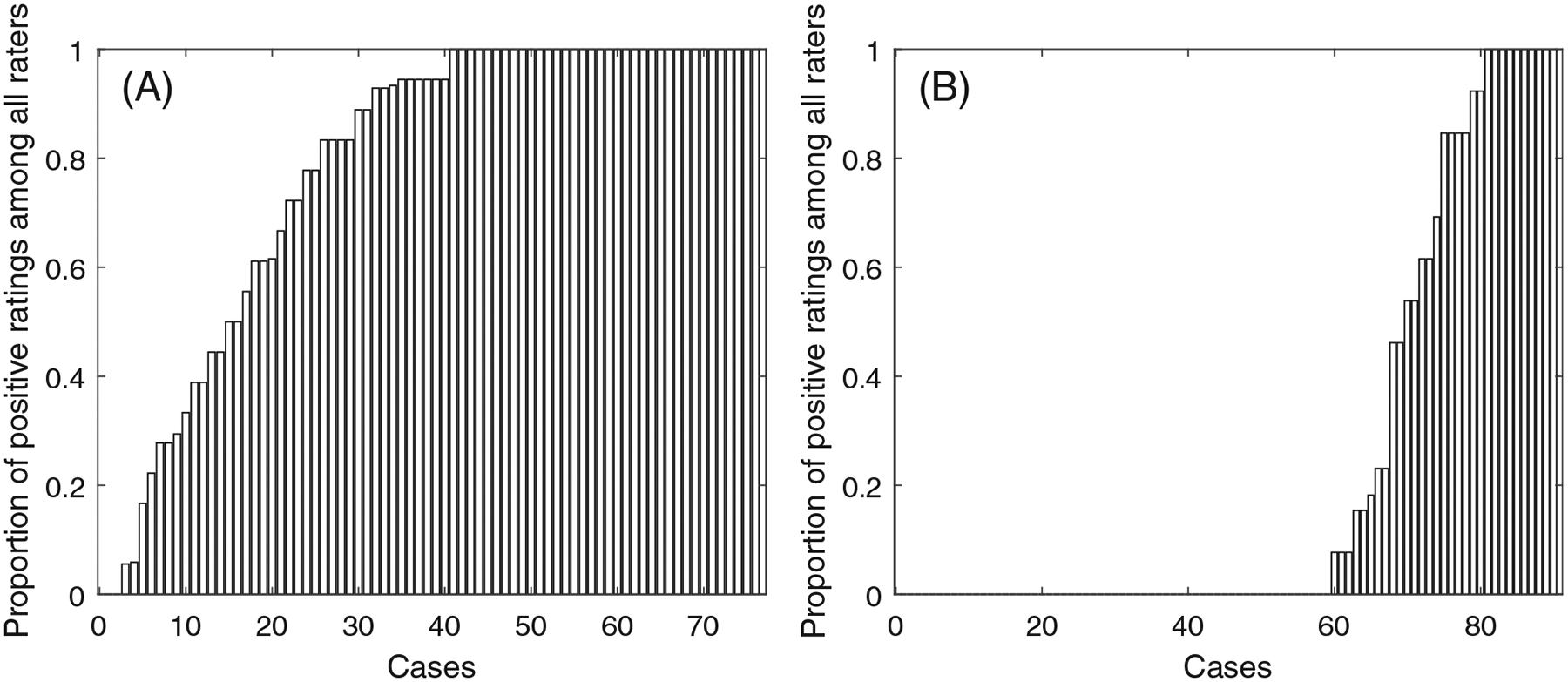

FIGURE 1

Bar charts of the PD-L1 expression agreement percentage of (A) SP263 TNBC data set, and (B) 22c3 tumor NSCLC data set

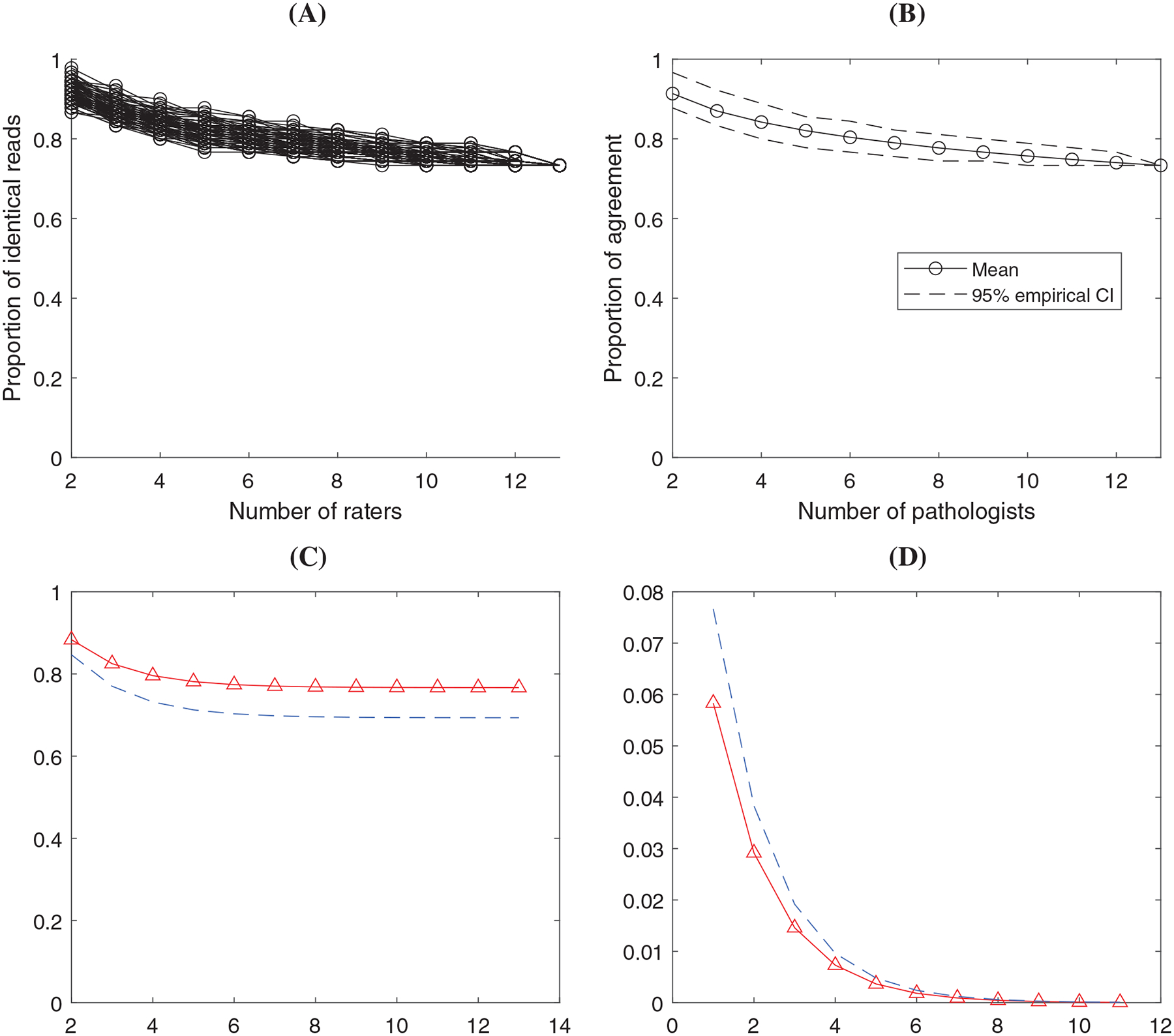

FIGURE 2

Results in the analysis of SP263 TNBC data set. (A) ONEST plot from 100 random permutations of the raters; (B) ONEST empirical estimate of the mean and 95% CI using the 100 permutations; (C) ONEST inference about agreement percentage (solid curve with triangles) and the 95% lower bound (dashed curve) at different number of raters; (D) ONEST inference about the change of percentage agreement (solid curve with triangles) with 95% upper bound (dashed curve)

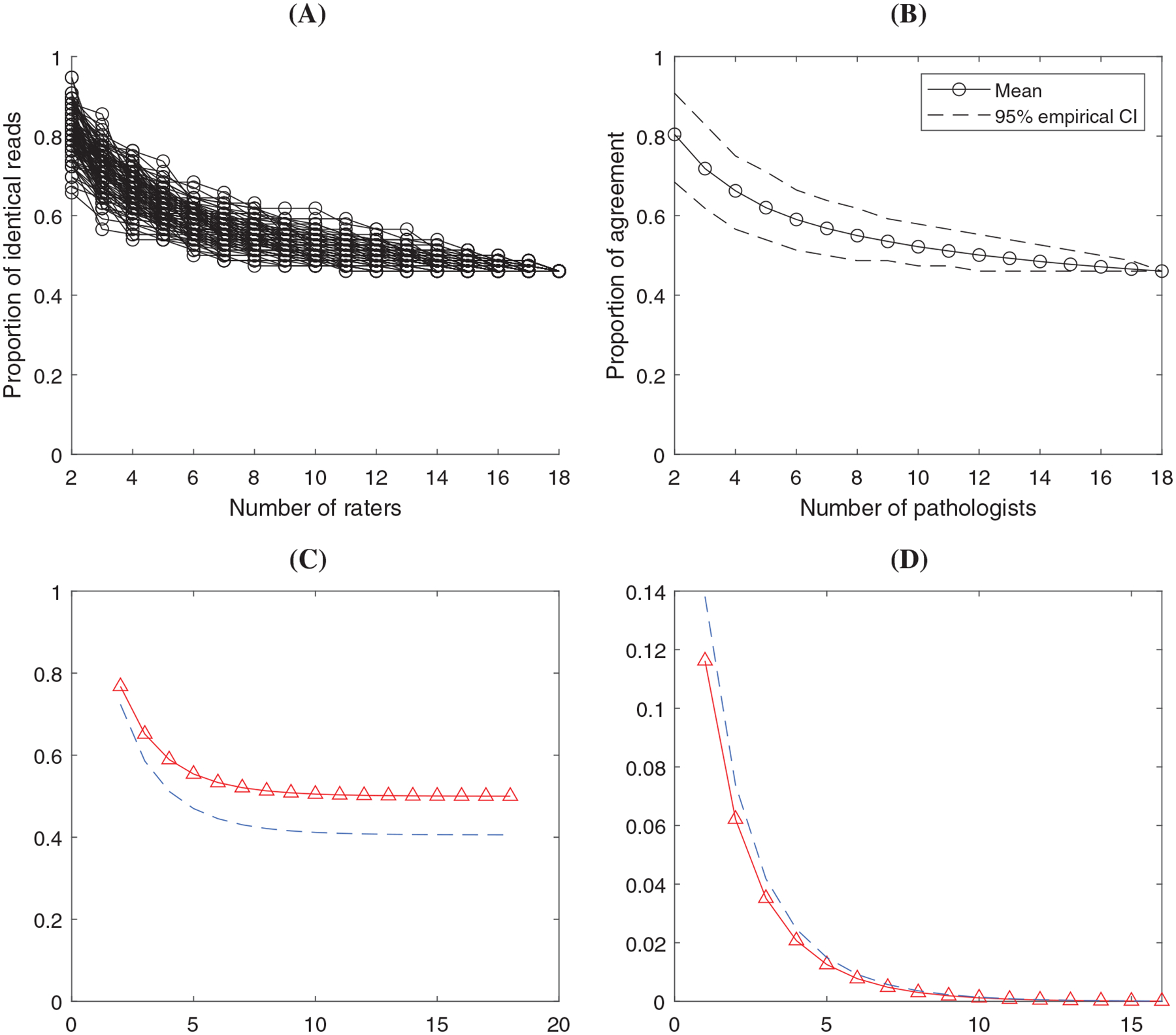

FIGURE 3

Results in the analysis of 22c3 tumor NSCLC data set. (A) ONEST plot from 100 random permutations of the raters; (B) ONEST empirical estimate of the mean and 95% CI using the 100 permutations; (C) ONEST inference about agreement percentage (solid curve with triangles) and the 95% lower bound (dashed curve) at different number of raters; (D) ONEST inference about the change of percentage agreement (solid curve with triangles) with 95% upper bound (dashed curve)
