An Approach to Intraoperatively Identify the Coronal Plane Deformities of the Distal Tibia When Treating Tibial Fractures with Intramedullary Nail Fixation: a Retrospective Study

Abstract

Objective: To develop a new approach to intraoperatively identify the presence of coronal plane deformities (both valgus and varus) when treating tibial fractures with closed reduction and intramedullary nail fixation.

Methods: A retrospective analysis was conducted by enrolling 33 consecutive patients with tibial fractures who received closed reduction and intramedullary nail fixation from January 2018 to January 2019 at our trauma center. Out of the 33 patients, 23 were males and 10 were females and the average age was 41 years (ranging 22 to 69 years of age). Standard anteroposterior and lateral preoperative radiographs were routinely performed. After intraoperatively inserting the tibial intramedullary nail through the standard entry point, the parallel relationship between the distal horizontal interlocking screw and the tibiotalar joint surface on the anteroposterior fluoroscopy was used to determine the occurrence of valgus or varus deformities of the distal tibial fragment. Radiographic and clinical outcomes were analyzed using the average interval from injury to surgery, the lateral distal tibial angle (LDTA) of the unaffected and affected sides, complications and the Olerud-Molander ankle score.

Results: All 33 patients were postoperatively followed for 13 to 25 months (mean 18.7 months). The fractures achieved bone union at an average of 4.3 months (ranging from 3 to 6 months). The total complication rate was 60.6% (20 cases), including four cases that showed deep vein thrombosis, one case showing an infection and delayed union and 15 cases showing slight to moderate anterior knee pain. The postoperative LDTA of the unaffected side measured 87.3° to 89.6 ° (average 88.7° ± 0.8°), and the LDTA of the affected side was 87.5° to 90.4° (average 88.9° ± 1.1°). There was no significant difference between the unaffected and affected sides (t = -1.865, P = 0.068). The intraoperative measurement indicated six cases of valgus angulation and three cases of varus angulation deformities, and all deformities were corrected during surgery. According to the Olerud-Molander ankle score, clinical outcomes demonstrated 22 excellent cases, eight good cases, two fair cases, and one poor case 12 months after surgery.

Conclusion: The parallel relationship between the distal horizontal interlocking screw and tibiotalar joint surface on intraoperative anteroposterior films were able to determine the onset of valgus or varus angulations of the distal tibial fragment in the fracture zone after the tibial intramedullary nail was inserted through the standard entry point.

Keywords: Angulation deformity; Intramedullary nail; Tibia fracture; Valgus; Varus.

Fig 1

General view of the projection line on the coronal plane. The tibial intramedullary nail projection line (line a), the knee joint surface projection line (line b), the tibiotalar joint surface projection line (line c) and the axis of distal horizontal interlocking screw projection line (line d).

Fig 2

A schematic of the ideal starting point of intramedullary nailing. (A) The ideal starting point of the guide wire on the AP views intraoperatively. (B) The ideal starting point of the guide wire on the lateral views intraoperatively.

Fig 3

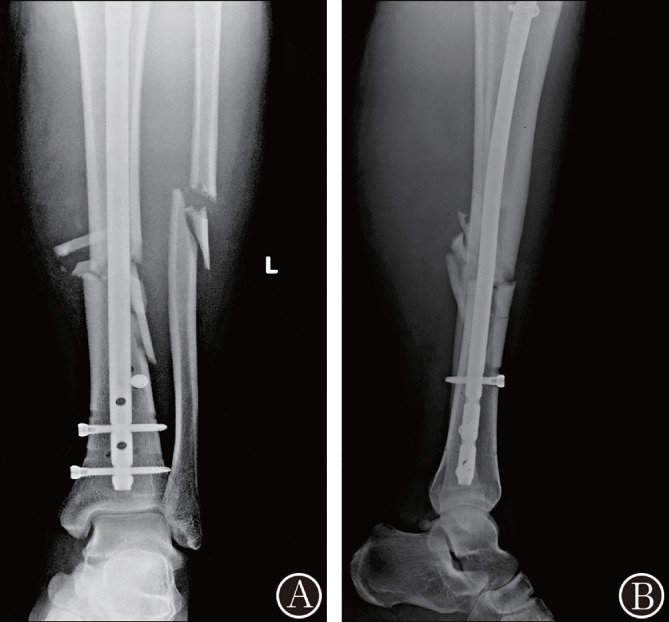

A representative case where a 21‐year‐old male who experienced a road traffic accident that resulted in left calf and right knee pain with limited activity. Radiograph at the emergency room demonstrated left tibia and fibula fractures combined with contralateral tibial plateau fractures. (A) Left tibia and fibula fractures (AO/OTA 42‐C3) as shown by the AP views. (B) Left tibia and fibula fractures (42‐C3) on the lateral views. (C) The insertion of the finger reduction device through a guide wire. (D) The insertion of the nail after gradual reaming and the distal interlocking screws were locked by the free hand procedure. An included angle emerged between line c and line d, which pointed to the fibula on the hand drawing diagram of intraoperative image intensification. (E) The AP view of the distal fragment demonstrated a valgus deformity. (F) Reinsertion of the nail after application of the poller screw technique for the distal tibial fragment. (G) The parallel relationship between line c and line don image intensification and the hand drawing diagram indicated the correction of the valgus deformity intraoperatively.

Fig 4

Postoperative radiographic results demonstrated satisfactory reduction, alignment and implant location. (A) The AP view of X‐ray films 2 days after surgery. (B) The lateral view of X‐ray films 2 days after surgery.

Fig 5
