. 2022 Jan 7;16(1):2.
doi: 10.1186/s13037-021-00315-4.

Safety and efficacy of a novel retrograde route for femoral bone graft harvesting by Reamer-Irrigator-Aspirator: a pilot study on 24 patients

Fernando Bidolegui  1 , Sebastián Pereira  1 , Cristina Irigoyen  1 , Robinson Esteves Pires  2   3
Affiliations

Safety and efficacy of a novel retrograde route for femoral bone graft harvesting by Reamer-Irrigator-Aspirator: a pilot study on 24 patients

Fernando Bidolegui et al. Patient Saf Surg. .

Abstract

Background: The Reamer-Irrigator-Aspirator system was initially developed to reduce fat embolism and thermic necrosis during reamed intramedullary nail fixation of femoral shaft fractures. Currently, this system is used in extended applications including accessing large volume of autologous bone graft, as alternative for iliac crest harvesting. Antegrade femoral bone graft harvesting using the Reamer-Irrigator-Aspirator system is considered the standard technique. The aim of our study is to evaluate the efficacy (bone graft volume) and the complications (blood loss, postoperative pain, and incidence of iatrogenic fractures) of the Reamer-Irrigator-Aspirator system through the retrograde femoral route in a series of patients with post-traumatic bone defects or nonunions.

Methods: A non-controlled single center retrospective observational cohort study was conducted in a level1 trauma center to evaluate all patients who were treated using the RIA system. Between November 2015 and May 2019, 24 patients (8 women and 16 men; mean age: 41 years [range 27-55 years]) with bone defects or nonunions underwent bone graft harvesting using the Reamer-Irrigator-Aspirator system through retrograde femoral route. Postoperative pain, complications, and bone graft volume were analyzed. Inclusion criteria was patients older than 18 years with a diagnosis of post-traumatic bone defect or associated tibial or femoral nonunion, with minimum 6-months follow, treated using the RIA. We hypothesized that the retrograde route of the RIA system is a safe and efficacious method for bone harvesting.

Results: The average volume of collected graft was 45 cc (range 30-60 cc). In 83% of the cases, bone grafting was sufficient, while in 17% it was necessary to add iliac crest bone graft to completely fill the bone defect. A mean drop in postoperative hemoglobin of 4.1 g / dL (range 0.5-6.0 g / dL) was evidenced. In 4 cases (33%), a unit of packed red blood cells was required. Regarding postoperative pain, visual analogue scale after 3 months postoperatively was 1.6 in average. After 6 months, the value has decreased to 0.4. There were no perioperative or postoperative complications at 6-month follow-up.

Conclusion: In this limited case series, large volumes of bone graft were harvested using the retrograde route of the RIA system and there were no intra-/ postoperative complications observed at 6-month follow-up. Therefore this novel technique appears safe and efficacious. However, it's important to highlight that future prospective controlled studies are necessary to validate the insights from this pilot study.

Keywords: Bone defects; Bone graft; Osteomyelitis; Patient safety; Reamer-Irrigator-Aspirator.

PubMed Disclaimer

Conflict of interest statement

The authors declare that there are no monetary or other conflicts of interest related to the RIA product and the manufacturer of the device investigated in this study (DePuy-Synthes).

Figures

Fig. 1
Fig. 1
Intraoperative photograph depicting the retrograde pathway for bone graft harvesting using the RIA system
Fig. 2
Fig. 2

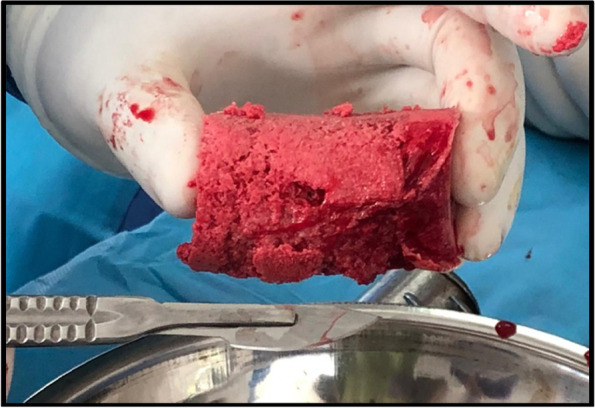

Intraoperative photograph showing the harvested bone graft using the RIA system
Fig. 3
Fig. 3

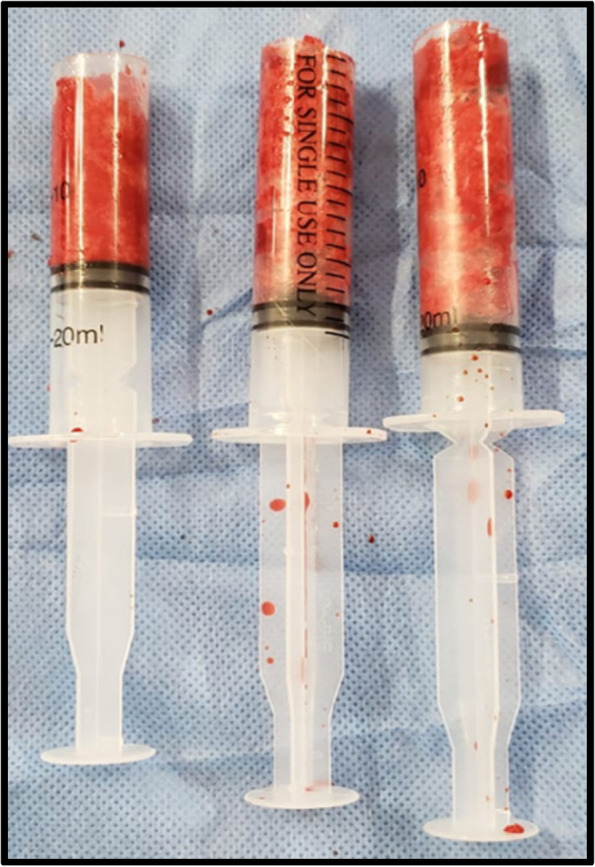

Measurement of the volume of the harvested bone graft using 20 cc syringes
