. 2021 Dec 23;22(1):66.
doi: 10.3390/s22010066.

Industry 4.0: A Proposal of Paradigm Organization Schemes from a Systematic Literature Review

Cristian Rocha-Jácome  1 , Ramón González Carvajal  1 , Fernando Muñoz Chavero  1 , Esteban Guevara-Cabezas  1 , Eduardo Hidalgo Fort  1
Affiliations

Industry 4.0: A Proposal of Paradigm Organization Schemes from a Systematic Literature Review

Cristian Rocha-Jácome et al. Sensors (Basel). .

Abstract

Currently, the concept of Industry 4.0 is well known; however, it is extremely complex, as it is constantly evolving and innovating. It includes the participation of many disciplines and areas of knowledge as well as the integration of many technologies, both mature and emerging, but working in collaboration and relying on their study and implementation under the novel criteria of Cyber-Physical Systems. This study starts with an exhaustive search for updated scientific information of which a bibliometric analysis is carried out with results presented in different tables and graphs. Subsequently, based on the qualitative analysis of the references, we present two proposals for the schematic analysis of Industry 4.0 that will help academia and companies to support digital transformation studies. The results will allow us to perform a simple alternative analysis of Industry 4.0 to understand the functions and scope of the integrating technologies to achieve a better collaboration of each area of knowledge and each professional, considering the potential and limitations of each one, supporting the planning of an appropriate strategy, especially in the management of human resources, for the successful execution of the digital transformation of the industry.

Keywords: IIoT; Industry 4.0; artificial intelligent; big data; blockchain; cloud computing; cyber security; cyber–physical system; digital maturity; digital twin.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
The main steps taken to validate the research.
Figure 2
Figure 2
(a) Ratio of exclusion and inclusion of documents of each paradigm and key technology; (b) Percentage of documents included and excluded with respect to the total.
Figure 3
Figure 3
Geographical distribution and density of publications.
Figure 4
Figure 4
Percentage of countries’ contribution.
Figure 5
Figure 5
Chronology of scientific information on each technology and paradigm.
Figure 6
Figure 6
(a) Percentage ratio of scientific production by years; (b) distribution of scientific information by year.
Figure 7
Figure 7

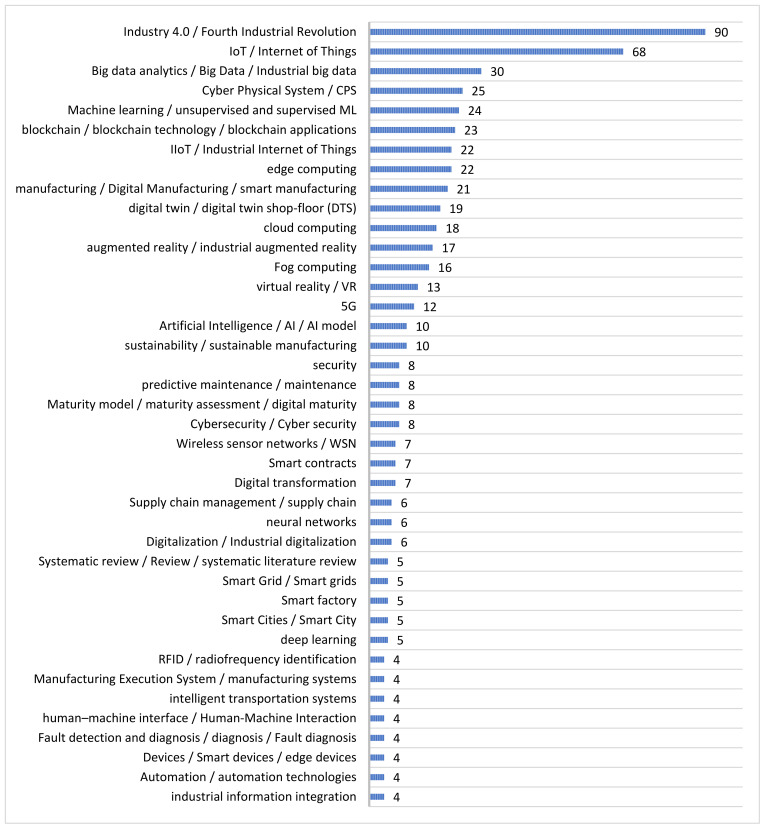

Keywords most frequently used.
Figure 8
Figure 8
Leading journals in this work.
Figure 9
Figure 9
Language ratio.
Figure 10
Figure 10
Proposed scheme of reorganization of Industry 4.0 criteria, paradigms, and key technologies.
Figure 11
Figure 11
Proposed CSCW matrix for Industry 4.0 paradigms and key technologies.
See this image and copyright information in PMC

References

    1. IMD World Digital IMD World Digital Competitiveness Ranking 2021. IMD World Compet. [(accessed on 29 September 2021)]. Available online: https://www.imd.org/globalassets/wcc/docs/release-2021/digital_2021.pdf.
    1. Narula S., Puppala H., Kumar A., Frederico G.F., Dwivedy M., Prakash S., Talwar V. Applicability of industry 4.0 technologies in the adoption of global reporting initiative standards for achieving sustainability. J. Clean Prod. 2021;305:127141. doi: 10.1016/j.jclepro.2021.127141. - DOI
    1. Barros T., Muñuzuri J. Master’s Thesis. The University of Seville; Seville, Spain: 2017. La industria 4.0: Aplicaciones e Implicaciones; pp. 1–52.
    1. Bartodziej C.J. The Concept Industry 4.0: An Empirical Analysis of Technologies and Applications in Production Logistics. Springer Fachmedien Wiesbaden; Wiesbaden, Germany: 2017. Technologies and functions of the concept Industry 4.0; pp. 51–78.
    1. Hermann M., Pentek T., Otto B. Design Principles for Industrie 4.0 Scenarios; Proceedings of the 2016 49th Hawaii International Conference on System Sciences (HICSS); Koloa, HI, USA. 5–8 January 2016; pp. 3928–3937.
