. 2021 Sep;32(3):148-157.
doi: 10.7171/jbt.21-3203-010.

Rapid, Affordable, and Scalable SARS-CoV-2 Detection From Saliva

Andrew Hayden  1 , Marcy Kuentzel  1 , Sridar V Chittur  1   2
Affiliations

Rapid, Affordable, and Scalable SARS-CoV-2 Detection From Saliva

Andrew Hayden et al. J Biomol Tech. 2021 Sep.

Abstract

Here we present an inexpensive, rapid, and robust reverse-transcription loop-mediated isothermal amplification (RT-LAMP)-based severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) detection method that is easily scalable, enabling point-of-care facilities and clinical labs to determine results from patients' saliva directly in 30 minutes for less than $2 per reaction. The method uses a novel combination of widely available reagents that can be prepared in bulk, plated, and frozen and remain stable until samples are received. This innovation dramatically reduces preparation time, enabling high-throughput automation and testing with time to results (including setup) in less than 1 hour for 96 patient samples simultaneously when using a 384-well format. By using a dual reporter (phenol red pH indicator for end-point detection and SYTO-9 fluorescent dye for real time), the assay also provides internal validation of results and redundancy in the event of an instrument malfunction.

Keywords: Fluorescent LAMP; RT-LAMP; extraction-free detection; saliva detection.

PubMed Disclaimer

Figures

FIGURE 1
FIGURE 1
Schematic of dual-assay workflow. RT, room temperature; FIP, forward inner primer; BIP, backward inner primer, F3, forward outer primer; B3, backward outer primer; LB, loop backward primer.
FIGURE 2
FIGURE 2
Primer optimization.
FIGURE 3
FIGURE 3

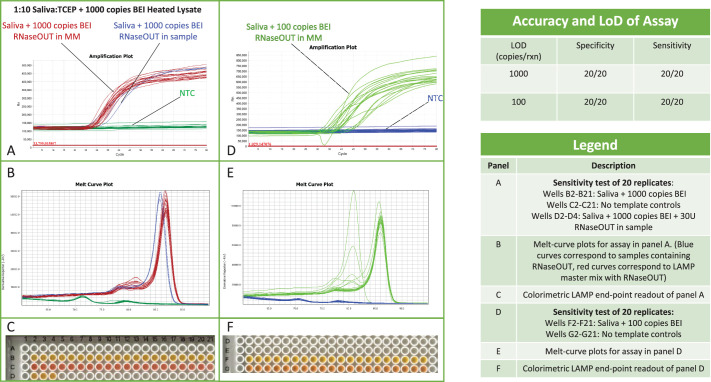

Sensitivity and specificity testing. MM, master mix.
FIGURE 4
FIGURE 4
Comparative performance metrics of polyvinylsulfonic acid (PVSA) vs. RNaseOUT. MM, master mix.
FIGURE 5
FIGURE 5
Sensitivity and specificity testing with polyvinylsulfonic acid (PVSA). MM, master mix; ST, standard.
FIGURE 6
FIGURE 6
Stability testing. MM, master mix.
See this image and copyright information in PMC

References

    1. Ladha A, Joung J, Abudayyeh O, Gootenberg J, Zhang F. A. 5-min RNA preparation method for COVID-19 detection with RT-QPCR. medRxiv . 2020. - DOI
    1. Gray AN, Ren G, Zhang Y, Tanner N, Nichols NM. Facilitating detection of SARS-CoV-2 directly from patient samples: precursor studies with RT-qPCR and colorimetric RT-LAMP reagents. Available at: https://international.neb.com/-/media/nebus/files/application-notes/appn... Accessed November 30, 2021.
    1. Kellner MJ, Ross JJ, Schnabl J, et al. Scalable, rapid and highly sensitive isothermal detection of SARS-CoV-2 for laboratory and home testing. bioRxiv . 2020. - DOI
    1. Ikeda M, Imai K, Tabata S, et al. Clinical evaluation of self-collected saliva by RT-QPCR, direct RT-QPCR, RT-LAMP, and a rapid antigen test to diagnose COVID-19. J Clin Microbiol . 2020;58:e01438–20. doi: 10.1128/JCM.01438-20. - DOI - PMC - PubMed
    1. Vogels CBF, Watkins AE, Harden CA, et al. SalivaDirect: a simplified and flexible platform to enhance SARS-CoV-2 testing capacity. medRxiv . 2020. - DOI - PMC - PubMed
