. 2022 Jan 1;78(Pt 1):18-22.
doi: 10.1107/S2056989021012561.

Crystal structure of a dicationic PdII dimer containing a 2-[(diisopropylphosphanyl)methyl]quinoline-8-thiolate pincer ligand

Arnaud Clerc  1 , Nathalie Saffon-Merceron  2 , Julien Monot  1 , Blanca Martin Vaca  1 , Didier Bourissou  1
Affiliations

Crystal structure of a dicationic PdII dimer containing a 2-[(diisopropylphosphanyl)methyl]quinoline-8-thiolate pincer ligand

Arnaud Clerc et al. Acta Crystallogr E Crystallogr Commun. .

Abstract

A dicationic PdII dimer, bis{2-[(diisopropylphosphanyl)methyl]quinoline-8-thiolato}palladium(II) bis(hexafluoridoantimonate) dichloromethane monosolvate, [Pd2(C32H42N2P2S2)](SbF6)2·CH2Cl2, containing a 2-[(diisopropylphos-phanyl)methyl]quinoline-8-thiolate pincer ligand, was isolated and its crystal structure determined. The title compound crystallizes in the ortho-rhom-bic space group Pbca. A dimeric structure is formed by bridging coordination of the S atoms. The geometry of the butterfly-shaped Pd2S2 core is bent, with a hinge angle of 108.0 (1)° and a short Pd⋯Pd distance of 2.8425 (7) Å. These values are the lowest measured compared to ten dicationic dimers with a Pd2S2 core featuring sulfur atoms embedded in a chelating ligand. One of the two hexa-fluorido-anti-monate anions is disordered over two sets of positions with site-occupancy factors of 0.711 (5) and 0.289 (5). The crystal structure is stabilized by many C-H⋯F and C-H⋯π inter-actions, forming a supra-molecular network.

Keywords: PdII pincer complex; S-bridging coordination; crystal structure; dimer; quinoline.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Schematic representation of Pd pincer complexes I–III
Figure 2
Figure 2
The mol­ecular structure of the title compound with the atom numbering. Displacement ellipsoids are drawn at the 50% probability level.
Figure 3
Figure 3

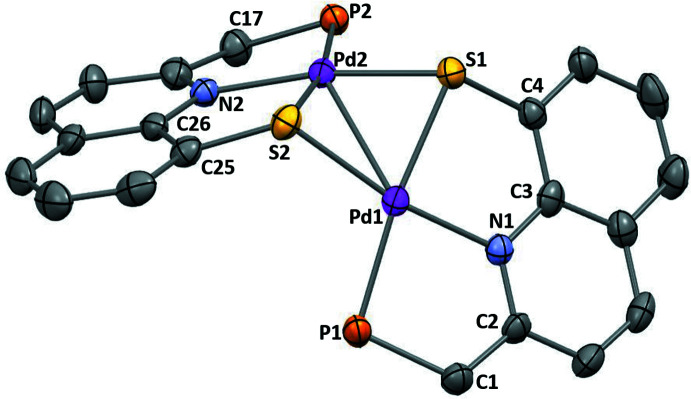

Detail of the mol­ecular structure of 22+ , showing the main atom-numbering scheme and displacement ellipsoids at the 50% probability level. H atoms and i Pr groups have been omitted for clarity.
Figure 4
Figure 4
A partial packing diagram of 2(SBF6)2 ; H atoms, and solvent omitted for clarity.
Figure 5
Figure 5
C—H⋯F hydrogen bonds (blue dotted lines).
Figure 6
Figure 6
C—H⋯Cg contact.
See this image and copyright information in PMC

References

    1. Albinati, A., Herrmann, J. & Pregosin, P. S. (1997). Inorg. Chim. Acta, 264, 33–42.
    1. Azizpoor Fard, M., Willans, M. J., Khalili Najafabadi, B., Levchenko, T. I. & Corrigan, J. (2015). Dalton Trans. 44, 8267–8277. - PubMed
    1. Batsanov, S. S. (2001). Inorg. Mater. 37, 871–885.
    1. Bruker (2014). APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Cabeza, J. A., del Río, I., Sánchez-Vega, M. G. & Suárez, M. (2006). Organometallics, 25, 1831–1834.
