Benefits of a microprocessor-controlled prosthetic foot for ascending and descending slopes

Abstract

Background: Prosthetic feet are prescribed for persons with a lower-limb amputation to restore lost mobility. However, due to limited adaptability of their ankles and springs, situations like walking on slopes or uneven ground remain challenging. This study investigated to what extent a microprocessor-controlled prosthetic foot (MPF) facilitates walking on slopes.

Methods: Seven persons each with a unilateral transtibial amputation (TTA) and unilateral transfemoral amputation (TFA) as well as ten able-bodied subjects participated. Participants were studied while using a MPF and their prescribed standard feet with fixed ankle attachments. The study investigated ascending and descending a 10° slope. Kinematic and kinetic data were recorded with a motion capture system. Biomechanical parameters, in particular leg joint angles, shank orientation and external joint moments of the prosthetics side were calculated.

Results: Prosthetic feet- and subject group-dependent joint angle and moment characteristics were observed for both situations. The MPF showed a larger and situation-dependent ankle range of motion compared to the standard feet. Furthermore, it remained in a dorsiflexed position during swing. While ascending, the MPF adapted the dorsiflexion moment and reduced the knee extension moment. At vertical shank orientation, it reduced the knee extension moment by 26% for TFA and 49% for TTA compared to the standard feet. For descending, differences between feet in the biomechanical knee characteristics were found for the TTA group, but not for the TFA group. At the vertical shank angle during slope descent, TTA demonstrated a behavior of the ankle moment similar to able-bodied controls when using the MPF.

Conclusions: The studied MPF facilitated walking on slopes by adapting instantaneously to inclinations and, thus, easing the forward rotation of the leg over the prosthetic foot compared to standard feet with a fixed ankle attachment with amputation-level dependent effect sizes. It assumed a dorsiflexed ankle angle during swing, enabled a larger ankle range of motion and reduced the moments acting on the residual knee of TTA compared to the prescribed prosthetic standard feet. For individuals with TFA, the prosthetic knee joint seems to play a more crucial role for walking on ramps than the foot.

Keywords: Biomechanics; Microprocessor-controlled prosthetic feet; Prosthetic knee; Prosthetics; Ramp walking.

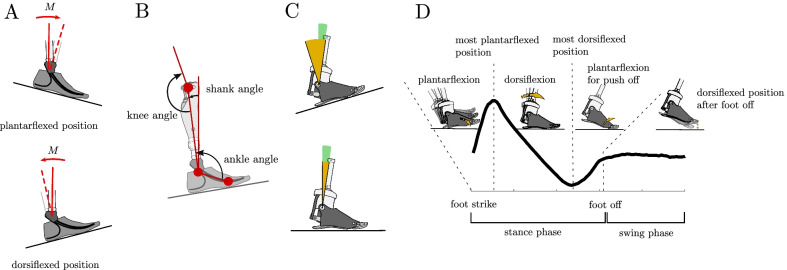

Fig. 1

Schematic illustration of the acting ankle moments and ankle motion on a slope. A Acting internal moments at the ankle due to the foot´s deflection, B sagittal angles on the slope, C ankle angle (yellow) and the maximum dorsiflexion angle (green) for the MPF-M and D schematic illustration of the MPF-M ankle motion for one gait cycle. A If the shank is rotated to an upright position from its neutral point (torque free position—dashed red line), the carbon heel spring is deflected and creates, due its internal moment M, a dorsiflexion moment for Down or a plantarflexion moment for Up, respectively. During Down, it pulls the knee into flexion and, during Up, it counteracts the forward rotation of the shank. Note that the reported external ankle moments act inversely to the internal ones. B Studied kinematic parameters were estimated for the sagittal plane—ankle angle (angle between toe, ankle and knee markers), knee angle (angle between ankle, knee, and trochanter markers) and shank angle (angle between ankle-knee marker line and vertical axis). (C) The MPF-M’s maximum dorsiflexion angle (green) is constant relative to the shank angle for level and UP. The ankle angle, in contrast, varies for the same shank angle

Fig. 2

Group mean kinematics and kinetics for one gait cycle on the slope. Ankle angle, knee angle, ankle moment and knee moment characteristics (sagittal) for walking A Up and B Down the 10° slope. Curves: TTA (red), TFA (blue), and controls (grey area); ESR (dashed lines) and MPF-M (solid lines)

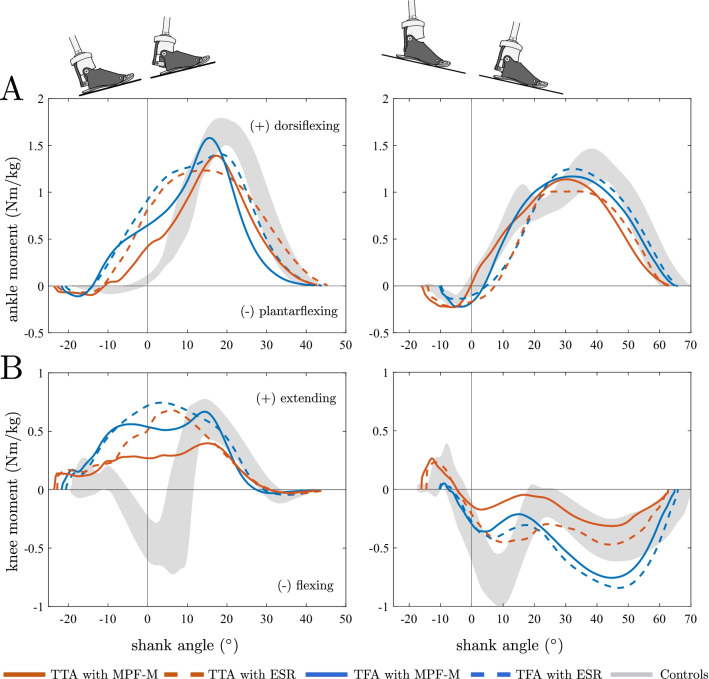

Fig. 3

External ankle and knee moment as a function of the shank angle on the slope. A Ankle and B knee moment characteristics for walking Up (left column) and Down (right column) the 10° slope. A shank angle of 0° (SA = 0) indicates a vertically oriented lower leg. The neutral point is reached when the ankle moment curve crosses zero, which is approximately at a vertical shank angle in controls and situation-dependent in TTA and TFA. Curves: TTA (red), TFA (blue), and controls (grey area); ESR (dashed lines) and MPF-M (solid lines)
