. 2022 Jan 21;8(1):e08809.
doi: 10.1016/j.heliyon.2022.e08809. eCollection 2022 Jan.

Geo-environmental approach to assess heavy metals around auto-body refinishing shops using bio-monitors

Jahan Zeb  1 , Hajira Tahir  2 , Abdullah Othman  3 , Turki M Habeebullah  1 , Ali Sayqal  4 , Hamza M Assaggaf  1   5   6 , Omar B Ahmed  1 , Muhammad Sultan  7 , Shaikh Mohiuddin  2 , Saiyada Shadiah Masood  8 , Agha Zeeshan Mirza  2 , Bibi Hajira  9
Affiliations

Geo-environmental approach to assess heavy metals around auto-body refinishing shops using bio-monitors

Jahan Zeb et al. Heliyon. .

Abstract

The vehicular industry is looking for continuous challenges to develop the sustainability of its manufacturing, maintenance processes, and vehicle emissions due to marketability, environmental, economic, and policy concerns. The present study focuses on the impact of these processes on the environment. In Pakistan, most of the auto-body refinishing processes are carried out in an open atmosphere. The shades of Azadirachta indica (Neem Tree) are generally used for the outdoor practice of scrapping, grinding, and painting in auto-body refinishing shops of Pakistan. Azadirachta indica leaves were selected as bio-indicator. For the present work, 26 affected sites and 10 control sites were selected from Karachi city, which is the financial hub and biggest city of Pakistan. Concentrations of different metals (Fe, Co, Cd, Cr, Cu, Mn, Mo, Ni, Pb, and Zn) were determined by atomic absorption spectrophotometer. A geographic information system (GIS) is used to present the variation in concentrations within Karachi city. The only positive correlation was observed in Pb and Mn (0.750). Principal component analysis (PCA) is applied to identify the anthropogenic effect between auto-body refinishing areas and control areas. Almost all analyzed metals show higher concentration at affected sites but Pb (87.14 mg/kg), Mn (46.47 mg/kg) and Fe (146.95 mg/kg) were leading the values, as compared to their concentration at control sites, Pb (48.83 mg/kg), Mn (15.23 mg/kg) and Fe (43.07 mg/kg). All analyzed metals are frequently present in different color pigments, whereas Pb, Mn, and Fe may also come from other sources, like the anti-knocking agent, vehicular exhaust, and scraping of car surface.

Keywords: Auto-body; Azadirachta indica; Bio-monitors; GIS; Multivariate analysis.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Principal component analysis (score plot) of affected leaves and control samples collected from Karachi.
Figure 2
Figure 2
Concentration of heavy metals (mg/kg) in affected leaves samples.

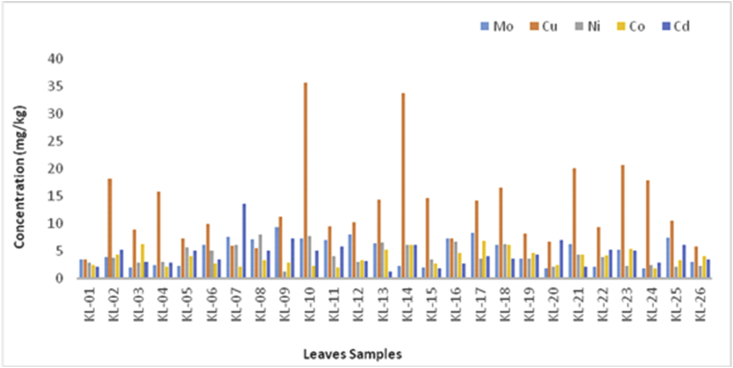

Figure 3
Figure 3
Concentration of heavy metals (mg/kg) in affected leaves samples.
Figure 4
Figure 4
GIS Map showing concentration variation of Cd metals in leaves samples collected from Karachi city.
Figure 5
Figure 5
GIS Map showing concentration variation of Co metals in leaves samples collected from Karachi city.
Figure 6
Figure 6
GIS Map showing concentration variation of Cr metals in leaves samples collected from Karachi city.
Figure 7
Figure 7
GIS Map showing concentration variation of Cu metals in leaves samples collected from Karachi city.

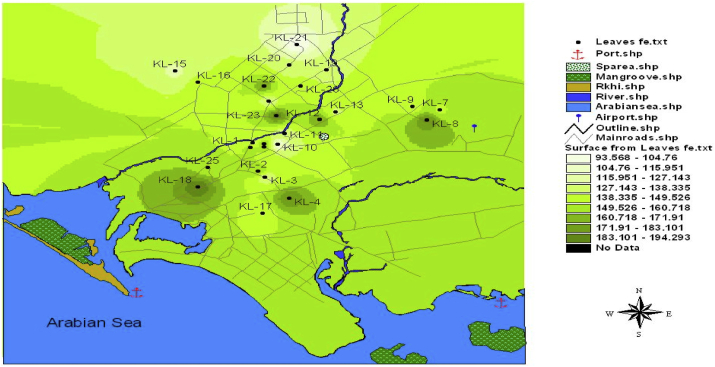

Figure 8
Figure 8
GIS Map showing concentration variation of Fe metals in leaves samples collected from Karachi city.
Figure 9
Figure 9
GIS Map showing concentration variation of K metals in leaves samples collected from Karachi city.

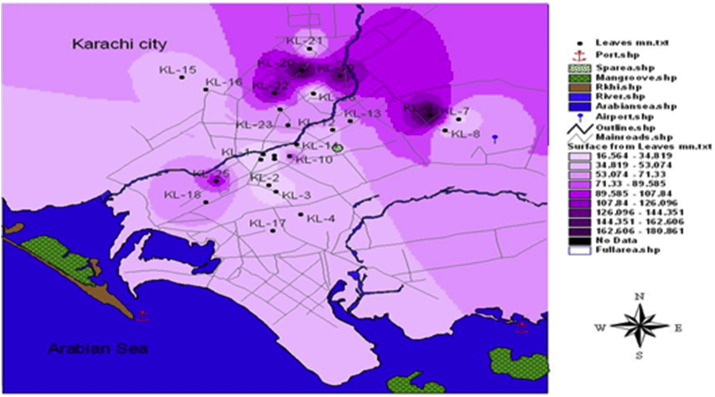

Figure 10
Figure 10
GIS Map showing concentration variation of Mn metals in leaves samples collected from Karachi city.
Figure 11
Figure 11
GIS Map showing concentration variation of Mo metals in leaves samples collected from Karachi city.
Figure 12
Figure 12
GIS Map showing concentration variation of Na metals in leaves samples collected from Karachi city.
Figure 13
Figure 13
GIS Map showing concentration variation of Ni metals in leaves samples collected from Karachi city.
Figure 14
Figure 14
GIS Map showing concentration variation of Pb metals in leaves samples collected from Karachi city.
Figure 15
Figure 15
GIS Map showing concentration variation of Zn metals in leaves samples collected from Karachi city.
See this image and copyright information in PMC

References

    1. A A.U., O J.C., A C.Q. Determination of heavy metal concentration in Neem (Azadirachta indica) leaves, bark and soil along some major roads in Lafia, Nasarawa State Nigeria. J. Environ. Chem. Ecotoxicol. 2016;8:38–43.
    1. Abdullateef B., Kolo B.G., Waziri I., I M.A. Assessment of neem tree (Azadirachta indica) leaves for pollution status of maiduguri environment, Borno state, Nigeria. Int. J. Eng. Sci. (IJES) 2014;3:31–35.
    1. Allen S.E., Grimshaw H.M., Parkinson J.A., Quarmby C. Blackwell Scientific Publications; 1974. Chemical Analysis of Ecological Materials.
    1. Aničić M., Spasić T., Tomašević M., Rajšić S., Tasić M. Trace elements accumulation and temporal trends in leaves of urban deciduous trees (Aesculus hippocastanum and Tilia spp.) Ecol. Indicat. 2011;11:824–830.
    1. Arif Hasan M.R. 2015. Responding to the Transport Crisis in Karachi. London, UK.
