. 2022 Feb 4;12(3):1791-1796.
doi: 10.1021/acscatal.1c05147. Epub 2022 Jan 18.

Efficient Heterogeneous Copper-Catalyzed Alder-Ene Reaction of Allenynamides to Pyrrolines

Zhiyao Zheng  1 , Luca Deiana  2 , Daniels Posevins  1 , Abdolrahim A Rafi  2 , Kaiheng Zhang  2 , Magnus J Johansson  3 , Cheuk-Wai Tai  4 , Armando Córdova  2 , Jan-E Bäckvall  1   2
Affiliations

Efficient Heterogeneous Copper-Catalyzed Alder-Ene Reaction of Allenynamides to Pyrrolines

Zhiyao Zheng et al. ACS Catal. .

Abstract

Herein, we describe an efficient nanocopper-catalyzed Alder-ene reaction of allenynamides. The copper nanoparticles were immobilized on amino-functionalized microcrystalline cellulose. A solvent-controlled chemoselectivity of the reaction was observed, leading to the chemodivergent synthesis of pyrrolines (2,5-dihydropyrroles) and pyrroles. The heterogeneous copper catalyst exhibits high efficiency and good recyclability in the Alder-ene reaction, constituting a highly attractive catalytic system from an economical and environmental point of view.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing financial interest.

Figures

Scheme 1

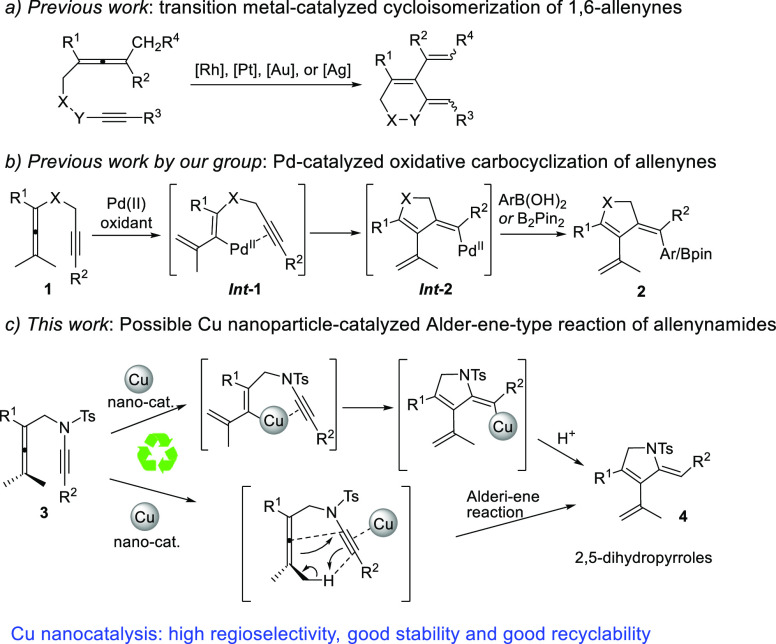

Scheme 1. Cycloisomerization and Oxidative Carbocyclization of Allenynes: (a) [Rh], Ref (8); [Pt], [Au], and [Ag], Ref (9). (b) Refs (10f)–. (c) This Work
Scheme 2
Scheme 2. General Procedure for the Synthesis of Cu-AmP-MCC Catalyst
Figure 1
Figure 1
STEM bright-field images of Cu-AmP-MCC catalyst, (a) with 50 nm scale bar and (b) with 20 nm scale bar. Moiré fringes given by overlapping of crystalline particles are observed.
Scheme 3
Scheme 3. Regioselective and Divergent Synthesis of 4 and 5 from Allenynamides 3
Reaction conditions: 3 (0.20 mmol), Cu-AmP-MCC (5.4 mol %), Cs2CO3 (0.40 mmol), toluene (2.0 mL) or CHCl3 (2.0 mL), 80 °C, 24 h.
Figure 2
Figure 2
Recycling experiments of Cu-AmP-MCC-catalyzed reaction of 3a to Alder-ene product 4a
Scheme 4
Scheme 4. Deuterium-Labeling Experiments: (a) D2O as Additive and (b) Deuterated Substrate with H2O as Additive
Scheme 5

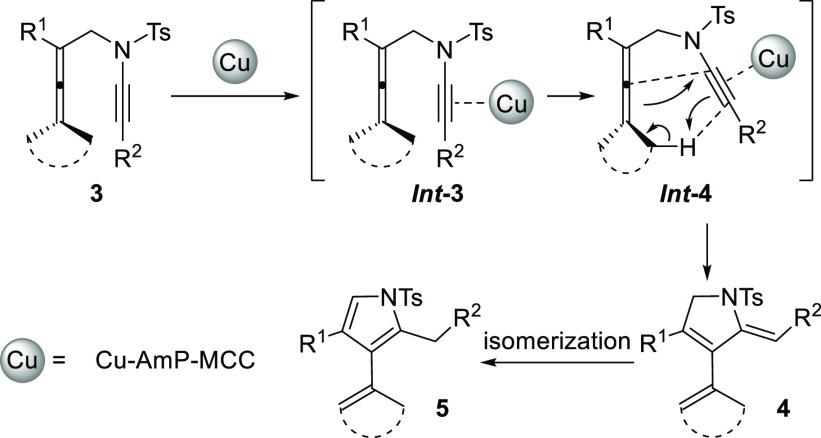

Scheme 5. Proposed Mechanism for the Copper-Catalyzed Alder-Ene Reaction of Allenynamides 3
See this image and copyright information in PMC

References

    1. Alder K.; Pascher F.; Schmitz A. Über die Anlagerung von Maleinsäure-anhydrid und Azodicarbonsäure-ester an einfach ungesättigte Koh an einfach ungesättigte Kohlenwasserstoffe. Zur Kenntnis von Substitutionsvorgängen in der Allyl-Stellung. Berichte der deutschen chemischen Gesellschaft (A and B Series) 1943, 76, 27–53. 10.1002/cber.19430760105. - DOI
    2. Hoffmann H. M. R. The Ene Reaction. Angew. Chem., Int. Ed. 1969, 8, 556–577. 10.1002/anie.196905561. - DOI
    3. Snider B. B. Lewis-acid catalyzed ene reactions. Acc. Chem. Res. 1980, 13, 426–432. 10.1021/ar50155a007. - DOI
    4. Mikami K.; Shimizu M. Asymmetric ene reactions in organic synthesis. Chem. Rev. 1992, 92, 1021–1050. 10.1021/cr00013a014. - DOI
    5. Trost B. M.; Probst G. D.; Schoop A. Ruthenium-Catalyzed Alder Ene Type Reactions. A Formal Synthesis of Alternaric Acid. J. Am. Chem. Soc. 1998, 120, 9228–9236. 10.1021/ja981540n. - DOI
    6. Brummond K. M.; Loyer-Drew J. A.. C-C Bond Formation (Part 1) by Addition Reactions: Alder-ene Reaction. In Comprehensive Organometallic Chemistry III; Mingos D. M. P., Crabtree R. H., Eds.; Elsevier: Oxford, 2007; pp 557–601.
    7. Clarke M. L.; France M. B. The carbonyl ene reaction. Tetrahedron 2008, 64, 9003–9031. 10.1016/j.tet.2008.06.075. - DOI
    8. Liu X.; Zheng K.; Feng X. Advancements in Catalytic Asymmetric Intermolecular Ene-Type Reactions. Synthesis 2014, 46, 2241–2257. 10.1055/s-0034-1378528. - DOI
    1. Trost B. M.; Lautens M. Cyclization via isomerization: a palladium(2+)-catalyzed carbocyclization of 1,6-enynes to 1,3- and 1,4-dienes. J. Am. Chem. Soc. 1985, 107, 1781–1783. 10.1021/ja00292a065. - DOI

    1. For selected examples on dienes, see:

    2. Narasaka K.; Hayashi Y.; Shimada S.; Yamada J. Asymmetric Intramolecular Ene Reaction Catalyzed by a Chiral Titanium Reagent and Synthesis of (—)-δ-Cadinene. Isr. J. Chem. 1991, 31, 261–271. 10.1002/ijch.199100030. - DOI
    3. Desimoni G.; Faita G.; Righetti P.; Sardone N. Catalysis with inorganic cations. VI. The effect of chiral bis-oxazoline-magnesium perchlorate catalysts on chemo- and enantioselectivity of intramolecular Hetero Diels-Alder and ene reaction. Tetrahedron 1996, 52, 12019–12030. 10.1016/0040-4020(96)00696-5. - DOI
    4. Narasaka K.; Hayashi Y.; Shimada S. Asymmetric Intramolecular Ene Reaction Catalyzed by a Chiral Titanium Alkoxide. Chem. Lett. 1988, 17, 1609–1612. 10.1246/cl.1988.1609. - DOI
    5. Xia Q.; Ganem B. Asymmetric Total Synthesis of (−)-α-Kainic Acid Using an Enantioselective, Metal-Promoted Ene Cyclization. Org. Lett. 2001, 3, 485–487. 10.1021/ol007009q. - DOI - PubMed
    6. Gotoh H.; Ogino H.; Ishikawa H.; Hayashi Y. One-pot synthesis of chiral bicyclo[3.3.0]octatrienes using diphenylprolinol silyl ether-mediated ene-type reaction. Tetrahedron 2010, 66, 4894–4899. 10.1016/j.tet.2010.03.010. - DOI
    7. Liu W.; Zhou P.; Lang J.; Dong S.; Liu X.; Feng X. A nickel(II)-catalyzed asymmetric intramolecular Alder-ene reaction of 1,7-dienes. Chem. Commun. 2019, 55, 4479–4482. 10.1039/C9CC01521C. - DOI - PubMed
    8. Yamamoto Y. Transition-Metal-Catalyzed Cycloisomerizations of α,ω-Dienes. Chem. Rev. 2012, 112, 4736–4769. 10.1021/cr300050n. - DOI - PubMed

    1. For selected examples on enynes, see:

    2. Sturla S. J.; Kablaoui N. M.; Buchwald S. L. A Titanocene-Catalyzed Intramolecular Ene Reaction: Cycloisomerization of Enynes and Dienynes. J. Am. Chem. Soc. 1999, 121, 1976–1977. 10.1021/ja9839567. - DOI
    3. Cao P.; Wang B.; Zhang X. Rh-Catalyzed Enyne Cycloisomerization. J. Am. Chem. Soc. 2000, 122, 6490–6491. 10.1021/ja994220s. - DOI
    4. Yamazaki S.; Yamada K.; Otsubo T.; Haruna M.; Kutsuwa E.; Tamura H. A novel Lewis acid-promoted enyne cycloisomerization of triester-substituted alkenes. Chem. Commun. 2001, 69–70. 10.1039/b008103p. - DOI
    5. Yamazaki S.; Yamada K.; Yamabe S.; Yamamoto K. Lewis Acid Promoted Cyclization of Enyne Triesters and Diesters. J. Org. Chem. 2002, 67, 2889–2901. 10.1021/jo016159r. - DOI - PubMed
    6. Lei A.; He M.; Wu S.; Zhang X. Highly Enantioselective Rh-Catalyzed Intramolecular Alder-Ene Reactions for the Syntheses of Chiral Tetrahydrofurans. Angew. Chem., Int. Ed. 2002, 41, 3457–3460. 10.1002/1521-3773(20020916)41:18<3457::AID-ANIE3457>3.0.CO;2-3. - DOI - PubMed
    7. Aubert C.; Buisine O.; Malacria M. The Behavior of 1, n-Enynes in the Presence of Transition Metals. Chem. Rev. 2002, 102, 813–834. 10.1021/cr980054f. - DOI - PubMed

    1. For selected examples on triynes, see:

    2. Cho E. J.; Lee D. Selectivity in the Ruthenium-Catalyzed Alder Ene Reactions of Di- and Triynes. J. Am. Chem. Soc. 2007, 129, 6692–6693. 10.1021/ja0719430. - DOI - PMC - PubMed
    3. Karmakar R.; Mamidipalli P.; Yun S. Y.; Lee D. Alder-Ene Reactions of Arynes. Org. Lett. 2013, 15, 1938–1941. 10.1021/ol4005905. - DOI - PubMed
    4. Niu D.; Hoye T. R. The aromatic ene reaction. Nat. Chem. 2014, 6, 34–40. 10.1038/nchem.1797. - DOI - PMC - PubMed
    5. Gupta S.; Lin Y.; Xia Y.; Wink D. J.; Lee D. Alder-ene reactions driven by high steric strain and bond angle distortion to form benzocyclobutenes. Chem. Sci. 2019, 10, 2212–2217. 10.1039/C8SC04277B. - DOI - PMC - PubMed
    6. Karmakar R.; Yun S. Y.; Chen J.; Xia Y.; Lee D. Benzannulation of Triynes to Generate Functionalized Arenes by Spontaneous Incorporation of Nucleophiles. Angew. Chem., Int. Ed. 2015, 54, 6582–6586. 10.1002/anie.201412468. - DOI - PubMed
    7. Sabbasani V. R.; Lee H.; Xie P.; Xia Y.; Lee D. Cyclization of Ynamide-Tethered 1,3,8-Triynes. Chem.—Eur. J. 2017, 23, 8161–8165. 10.1002/chem.201701781. - DOI - PubMed
