. 2022 Feb 23;189(3):117.
doi: 10.1007/s00604-022-05216-6.

Microfluidic flow-injection aptamer-based chemiluminescence platform for sulfadimethoxine detection

Yanwei Wang  1 , Simone Rink  2 , Antje J Baeumner  2 , Michael Seidel  3
Affiliations

Microfluidic flow-injection aptamer-based chemiluminescence platform for sulfadimethoxine detection

Yanwei Wang et al. Mikrochim Acta. .

Abstract

Gold nanoparticle-catalyzed chemiluminescence (CL) of luminol is an attractive alternative to strategies relying on enzymes, as their aggregation leads to significantly enhanced CL signals. Consequently, analytes disturbing such aggregation will lead to an easy-to-quantify weakening of the signal. Based on this concept, a homogeneous aptamer-based assay for the detection of sulfadimethoxine (SDM) has been developed as a microfluidic CL flow-injection platform. Here, the efficient mixing of gold nanoparticles, aptamers, and analyte in short channel distances is of utmost importance, and two-dimensional (2D) and three-dimensional (3D) mixer designs made via Xurography were investigated. In the end, since 2D designs could not provide sufficient mixing, a laminated 3D 5-layer microfluidic mixer was developed and optimized with respect to mixing capability and observation by the charge-coupled device (CCD) camera. Furthermore, the performance of standard luminol and its more hydrophilic derivative m-carboxy luminol was studied identifying the hydrophilic derivative to provide tenfold more signal enhancement and reliable results. Finally, the novel detection platform was used for the specific detection of SDM via its aptamer and yielded a stunning dynamic range over 5 orders of magnitude (0.01-1000 ng/ml) and a limit of detection of 4 pg/ml. This new detection concept not only outperforms other methods for SDM detection, but can be suggested as a new flow-injection strategy for aptamer-based rapid and cost-efficient analysis in environmental monitoring and food safety.

Keywords: 3D mixer; Aptamer; AuNPs; Chemiluminescence; Sulfadimethoxine; m-Carboxy luminol.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Fig. 1
Fig. 1
a Scheme of chemiluminescence (CL) measurement system: the reagents were pumped into mixer to generate CL signal which was recorded by a CCD camera (the observation area was marked by red dashed lines); b scheme of 2D mixer structure with 3 layers; c scheme of 3D mixer structure with 5 layers
Fig. 2
Fig. 2
Schematic illustration of homogeneous chemiluminescence detection of SDM using AuNPs probe
Fig. 3
Fig. 3

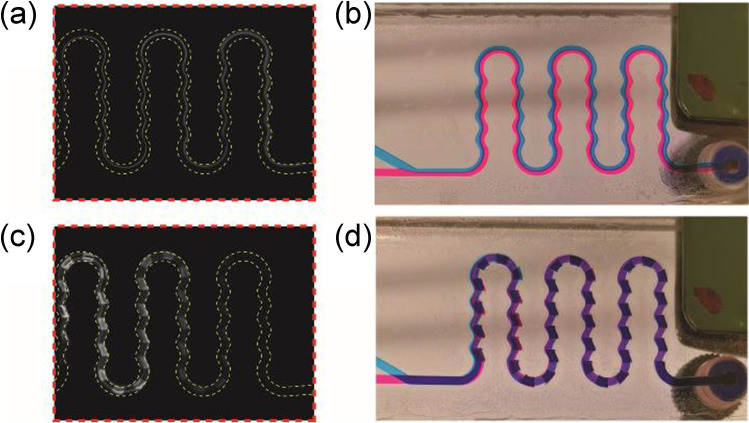

Images of chemiluminescence reaction in a 2D and c 3D mixer. b and d The mixing profile of 2D and 3D mixer which have the same structure as (a) and (c), respectively
Fig. 4
Fig. 4

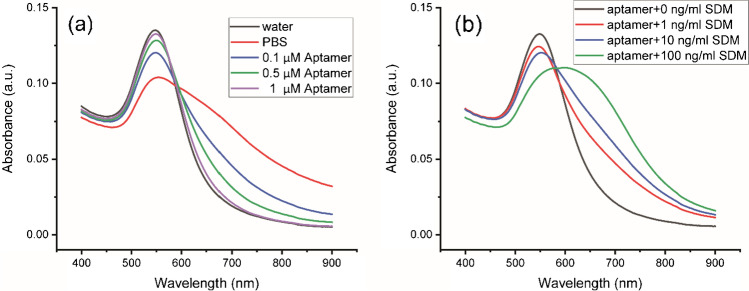

a UV − Vis spectra of AuNPs in water, PBS, and various concentrations of aptamer in PBS; b UV − Vis spectra of AuNPs solution in 1 μM aptamer (in PBS) and various concentrations of sulfadimethoxine (in water)
Fig. 5
Fig. 5

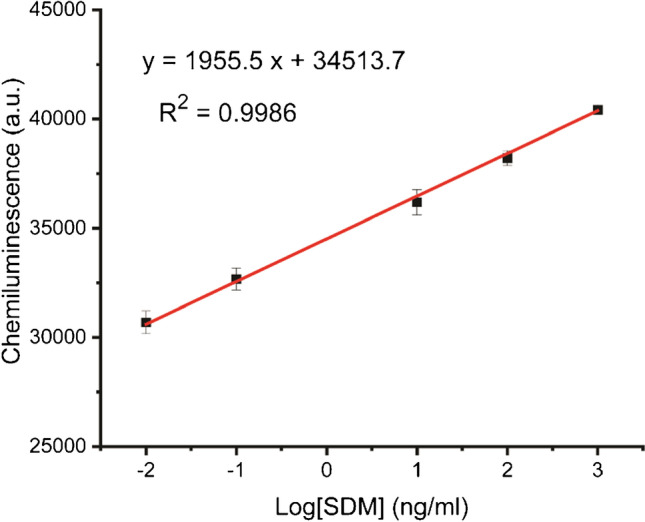

The calibration plots of chemiluminescence intensity versus the logarithm of sulfadimethoxine concentration using AuNPs catalyzed chemiluminescence with m-carboxy luminol in a homogeneous aptamer-based assay in a flow-based 3D mixer chip, n = 3
See this image and copyright information in PMC

References

    1. Zahra QUA, Luo Z, Ali R, Khan MI, Li F, Qiu B (2021). Advances in gold nanoparticles-based colorimetric aptasensors for the detection of antibiotics: an overview of the past decade. Nanomaterials, 11(4), 10.3390/nano11040840 - PMC - PubMed
    1. Chen XX, Lin ZZ, Hong CY, Yao QH, Huang ZY. A dichromatic label-free aptasensor for sulfadimethoxine detection in fish and water based on AuNPs color and fluorescent dyeing of double-stranded DNA with SYBR Green I. Food Chem. 2020;309:125712. doi: 10.1016/j.foodchem.2019.125712. - DOI - PubMed
    1. Cliquet P, Cox E, Haasnoot W, Schacht E, Goddeeris BM. Extraction procedure for sulfachloropyridazine in porcine tissues and detection in a sulfonamide-specific enzyme-linked immunosorbent assay (ELISA) Anal Chim Acta. 2003;494(1–2):21–28. doi: 10.1016/j.aca.2003.08.010. - DOI
    1. Bach C, Boiteux V, Hemard J, Colin A, Rosin C, Munoz JF, Dauchy X. Simultaneous determination of perfluoroalkyl iodides, perfluoroalkane sulfonamides, fluorotelomer alcohols, fluorotelomer iodides and fluorotelomer acrylates and methacrylates in water and sediments using solid-phase microextraction-gas chromatography/mass spectrometry. J Chromatogr A. 2016;1448:98–106. doi: 10.1016/j.chroma.2016.04.025. - DOI - PubMed
    1. Qin Y, Jatamunua F, Zhang J, Li Y, Han Y, Zou N, Shan J, Jiang Y, Pan C. Analysis of sulfonamides, tilmicosin and avermectins residues in typical animal matrices with multi-plug filtration cleanup by liquid chromatography-tandem mass spectrometry detection. J Chromatogr B Analyt Technol Biomed Life Sci. 2017;1053:27–33. doi: 10.1016/j.jchromb.2017.04.006. - DOI - PubMed
