. 2022 Feb 18;11(4):592.
doi: 10.3390/foods11040592.

Non-Destructive Measuring Systems for the Evaluation of High Oxygen Stored Poultry: Development of Headspace Gas Composition, Sensory and Microbiological Spoilage

Jasmin Dold  1 , Caroline Kehr  1 , Clarissa Hollmann  1 , Horst-Christian Langowski  2   3
Affiliations

Non-Destructive Measuring Systems for the Evaluation of High Oxygen Stored Poultry: Development of Headspace Gas Composition, Sensory and Microbiological Spoilage

Jasmin Dold et al. Foods. .

Abstract

As poultry is known to be a perishable food, the use-by date is set in such a way that food safety is guaranteed even with a higher initial bacterial count. This means, however, that some products are wasted, even if they are still safe to eat. Therefore, non-destructive measurement devices might be a good opportunity for individual shelf-life prediction, e.g., in retail. The aim of this study was therefore to use non-destructive measurement devices based on fluorescence quenching (oxygen detection) and mid-infrared laser spectroscopy (carbon dioxide detection) for the monitoring of high-oxygen-packed poultry in different storage conditions. During 15 days of storage, the gas composition of the headspace was assessed (non-destructively and destructively), while total plate count was monitored and a comprehensive sensory evaluation was performed by a trained panel. We were able to demonstrate that in most cases, non-destructive devices have comparable precision to destructive devices. For both storage conditions, the sensory attribute slime was correlated with reaching the critical microbiological value of 107 CFU/g; the attribute buttery was also useful for the prediction of regularly stored poultry. The change in the gas atmosphere as a sign of premature spoilage, however, was only possible for samples stored in irregular conditions.

Keywords: fluorescence quenching; infrared spectroscopy; meat quality; modified atmosphere packaging; non-destructive; sensory evaluation; shelf-life prediction.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Development of the relative volume concentration of O2 (●/●) and CO2 (▲/▲) for a headspace:meat ratio of 6:1 (●/▲) and 3:1 (●/▲) at a storage temperature of 10 °C for 11 days (n = 2 for each measuring point).
Figure 2
Figure 2

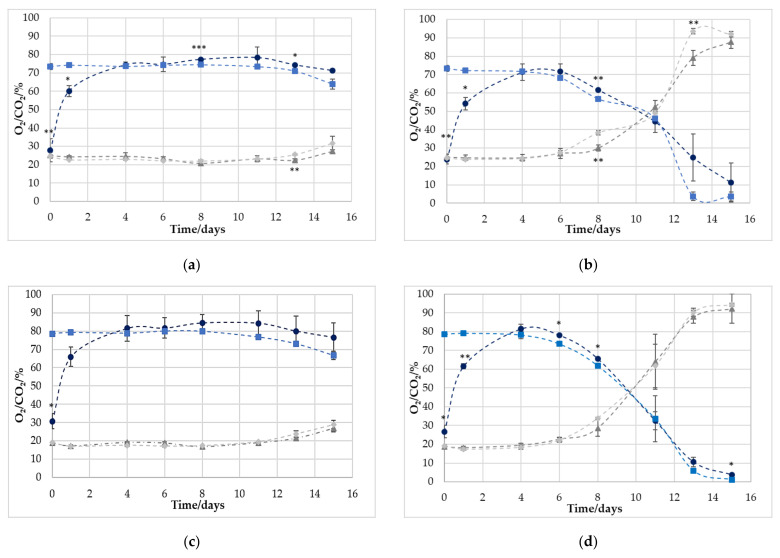

Comparison between the destructive (■/◆) and non-destructive (●/▲) measurement devices for the investigation of O2 (■/●) and CO2 (◆/▲) during the storage of poultry over 15 days under different storage conditions: (a) 70% O2/30% CO2 4 °C (b) 70% O2/30% CO2 10 °C (c) 80% O2/20% CO2 4 °C (d) 80% O2/20% CO2 10 °C. Indices indicate a significant difference between the curves measured with the destructive and non-destructive measurement devices: * p < 0.05, ** p < 0.01, and *** p < 0.001.
Figure 3
Figure 3
Development of O2 (○/●) and CO2 (△/▲) under different storage conditions over 15 days in trays with (●/▲) and without poultry (○/△): (a) 70% O2/30% CO2 4 °C (b) 70% O2/30% CO2 10 °C (c) 80% O2/20% CO2 4 °C (d) 80% O2/20% CO2 10 °C. Indices indicate a significant difference between the curves with and without poultry: * p < 0.05, ** p < 0.01, and *** p < 0.001. The red circles mark the point when the curve of the respective gas concentration in the filled trays intersects that for the empty trays (cross-over), which indicates a microbiologically induced change in the headspace atmosphere.
Figure 4
Figure 4
Development of the total viable count (TVC) for poultry stored under different storage conditions over 15 days in trays with initial gas concentrations of 70% O2/30% CO2 (▲) and 80% O2/20% CO2 (●) at (a) 4 °C and (b) 10 °C.
Figure 5
Figure 5
(a,b): Sensory evaluation of the poultry stored at 4 °C by the panel with the chosen descriptors for (a) visual and (b) olfactory attributes on day 0 (grey line), after reaching the critical value of 107 CFU/g (70% O2/30% CO2: light green; 80% O2/20% CO2: yellow) and on day 14 (70% O2/30% CO2: dark green; 80% O2/20% CO2: brown). (c,d): Change in the overall visual (▲) and olfactory (●) impression during the storage time: (c) 70% O2/30% CO2 4 °C and (d) 80% O2/20% CO2 4 °C. The red line marks the point when the microbiological limit value was achieved. The purple area indicates the previously defined sensory limit of 50 scores.
Figure 6
Figure 6
(a,b): Sensory evaluation of poultry stored at 10 °C by the panel with the chosen descriptors for (a) visual and (b) olfactory attributes on day 0 (grey line), after reaching the critical value of 107 CFU/g (70% O2/30% CO2: light blue; 80% O2/20% CO2: pink) and on day 8 (70% O2/30% CO2: dark blue; 80% O2/20% CO2: red). (c,d): Change in the overall visual (▲) and olfactory (●) impression during the storage time: (c) 70% O2/30% CO2 10 °C and (d) 80% O2/20% CO2 10 °C. The red line marks the point when the microbiological limit value was achieved. The purple area indicates the previously defined sensory limit of 50 scores.
See this image and copyright information in PMC
