. 2022 Feb 9;27(4):1160.
doi: 10.3390/molecules27041160.

Resolution of a Configurationally Stable Hetero[4]helicene

Michela Lupi  1 , Martina Onori  1 , Stefano Menichetti  1 , Sergio Abbate  2 , Giovanna Longhi  2 , Caterina Viglianisi  1
Affiliations

Resolution of a Configurationally Stable Hetero[4]helicene

Michela Lupi et al. Molecules. .

Abstract

We have developed an efficient chemical resolution of racemic hydroxy substituted dithia-aza[4]helicenes (DTA[4]H) 1(OH) using enantiopure acids as resolving agents. The better diastereomeric separation was achieved on esters prepared with (1S)-(-)-camphanic acid. Subsequent simple manipulations produced highly optically pure (≥ 99% enantiomeric excess) (P) and (M)-1(OH) in good yields. The role of the position where the chiral auxiliary is inserted (cape- vs. bay-zone) and the structure of the enantiopure acid used on successful resolution are discussed.

Keywords: chirality; chiroptical; enantiomers; heterohelicene; resolution; screw-shaped compounds.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
M and P enantiomers for a [6]carbohelicene.
Scheme 1

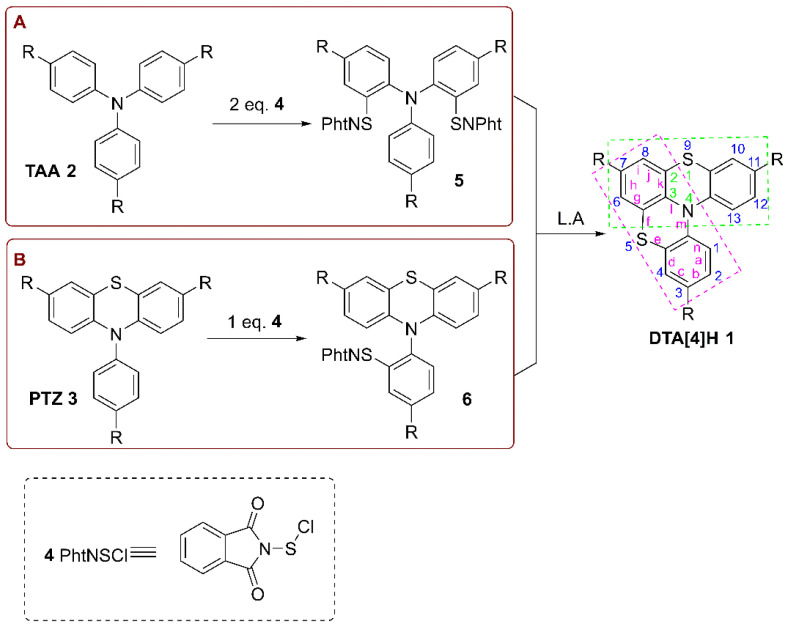

Scheme 1
Synthetic pathways (A or B) to dithia-aza[4]helicenes (DTA[4]H) 1.
Scheme 2
Scheme 2
Red-ox behavior of DTA[4]H 1.
Scheme 3
Scheme 3
Esterification with enantiopure acids 7.
Scheme 4
Scheme 4
Synthesis of hydroxy substituted helicenes 1a(OH) and 1b(OH).
Scheme 5

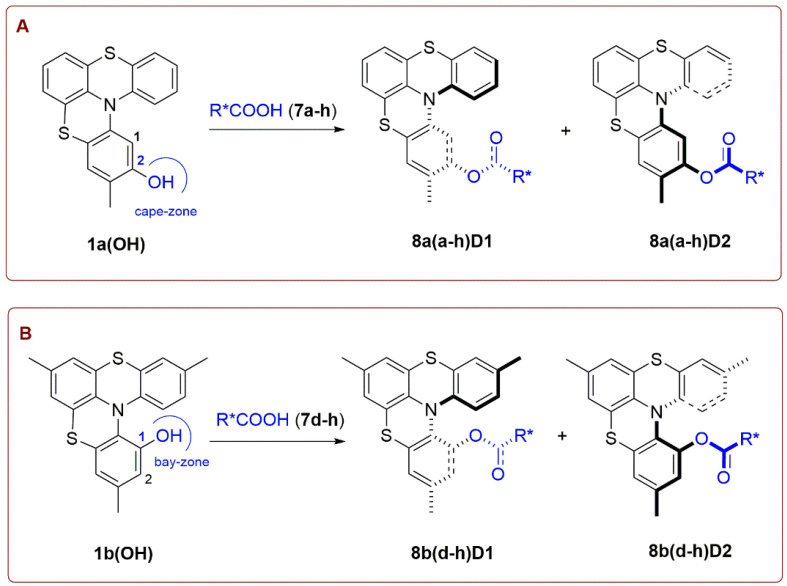

Scheme 5
Esterification of helicenes 1a(OH) and 1b(OH), panels (A) and (B), respectively, with enantiopure acids 7.
Figure 2
Figure 2
1H NMR spectrum of diastereomers (D1 and D2) 8bh.
Figure 3
Figure 3
1H-NMR spectra of diastereomers 8bhD1 and 8bhD2.
Scheme 6
Scheme 6
Chemical resolution of helicene (rac)-1b(OH).
Figure 4
Figure 4
Optimized 3D-structures for the two possible conformers of (M)-1b(OH). Percent population factors calculated at M06/cc-pvtz, iefpcm level; in parenthesis population factors calculated at M062X/cc-pvtz, iefpcm level.
Figure 5
Figure 5
CD (top) and absorption (bottom) experimental and calculated spectra with two choices for the DFT functional (see text); calculation performed on M-1b(OH). The calculated spectra are Boltzmann weighed averages of the two conformers A and B.
See this image and copyright information in PMC

References

    1. Liu M., Zhang L., Wang T. Supramolecular chirality in self-assembled systems. Chem. Rev. 2015;115:7304–7397. doi: 10.1021/cr500671p. - DOI - PubMed
    1. Shen Y., Chen C.-F. Helicenes: Synthesis and applications. Chem. Rev. 2012;112:1463–1535. doi: 10.1021/cr200087r. - DOI - PubMed
    1. Mori T. Chiroptical properties of symmetric double, triple, and multiple helicenes. Chem. Rev. 2021;121:2373–2412. doi: 10.1021/acs.chemrev.0c01017. - DOI - PubMed
    1. Reiné P., Ortuño A.M., Resa S., de Cienfuegos L.Á., Ribagorda M., Mota A.J., Abbate S., Longhi G., Miguel D., Cuerva J.M. Enantiopure double ortho oligophenylethynylene-based helical structures with circularly polarized luminescence activity. ChemPhotoChem. 2021;6:e202100160. doi: 10.1002/cptc.202100160. - DOI
    1. Hong J., Xiao X., Liu H., Fu L., Wang X.-C., Zhou L., Wang X.-Y., Qiu Z., Cao X.-Y., Narita A., et al. X-shaped thiadiazole-containing double [7]heterohelicene with strong chiroptical response and π-stacked homochiral assembly. Chem. Com. 2021;57:5566–5569. doi: 10.1039/D1CC01631H. - DOI - PubMed
