. 2022 Mar 12;12(1):4316.
doi: 10.1038/s41598-022-08327-5.

Maximum power point tracking of PEMFC based on hybrid artificial bee colony algorithm with fuzzy control

Liping Fan  1   2 , Xianyang Ma  3   4
Affiliations

Maximum power point tracking of PEMFC based on hybrid artificial bee colony algorithm with fuzzy control

Liping Fan et al. Sci Rep. .

Abstract

Maximum power point tracking (MPPT) is an effective method to improve the power generation efficiency and power supply quality of a proton exchange membrane fuel cell (PEMFC). Due to the inherent nonlinear characteristics of PEMFC, conventional MPPT methods are often difficult to achieve a satisfactory control effect. Considering this, artificial bee colony algorithm combining fuzzy control (ABC-fuzzy) was proposed to construct a MPPT control scheme for PEMFC. The global optimization ability of ABC algorithm was used to approach the maximum power point of PEMFC and solve the problem of falling into local optimization, and fuzzy control was used to eliminate the problems of large overshoot and slow convergence speed of ABC algorithm. The testing results show that compared with perturb & observe algorithm, conductance increment and ABC methods, ABC-fuzzy method can make PEMFC obtain greater output power, faster regulation speed, smaller steady-state error, less oscillation and stronger anti-interference ability. The MPPT scheme based on ABC-fuzzy can effectively realize the maximum power output of PEMFC, and plays an important role in improving the service life and power supply efficiency of PEMFC.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Figure 1
Figure 1

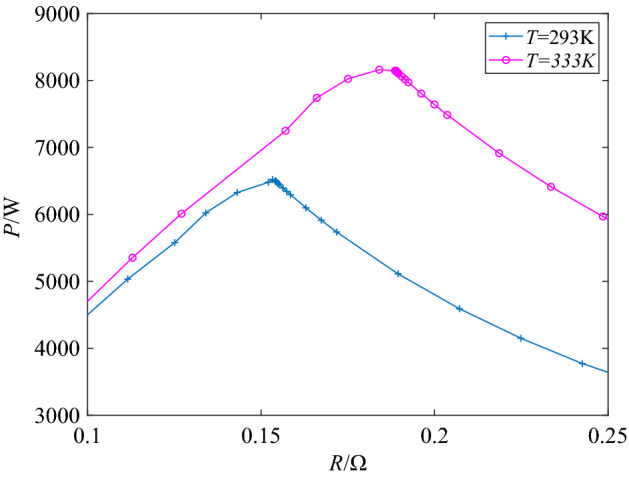

P-R characteristics of the used PEMFC.
Figure 2
Figure 2

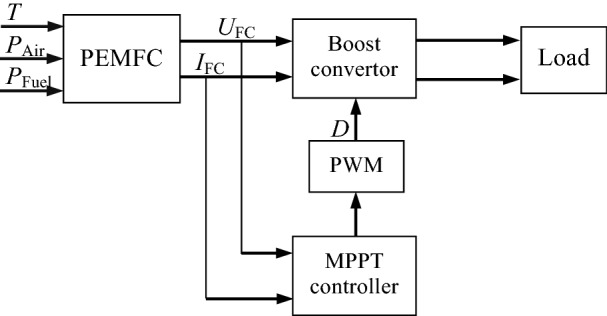

Diagram of MPPT control system of PEMFC.
Figure 3
Figure 3
Flow chart of P&O algorithm of MFC.
Figure 4
Figure 4
Structure diagram of ABC-fuzzy MPPT.
Figure 5
Figure 5
Power curves under pressure change.
Figure 6
Figure 6
Power curves with variable temperature.
See this image and copyright information in PMC

References

    1. Mehmood U. Renewable-nonrenewable energy: Institutional quality and environment nexus in South Asian countries. Environ. Sci. Pollut. Res. 2021;28:26529–26536. doi: 10.1007/s11356-021-12554-0. - DOI - PubMed
    1. Heidari A, Nezhad A, Tavakoli A, et al. A comprehensive review of renewable energy resources for electricity generation in Australia. Front. Energy. 2020;3:510–529. doi: 10.1007/s11708-020-0671-6. - DOI
    1. Zhang T, Wang P, Chen H, Pei P. A review of automotive proton exchange membrane fuel cell degradation under start-stop operating condition. Appl. Energy. 2018;223:249–262. doi: 10.1016/j.apenergy.2018.04.049. - DOI
    1. Wu H. A review of recent development: Transport and performance modeling of PEM fuel cells. Appl. Energy. 2016;165:81–106. doi: 10.1016/j.apenergy.2015.12.075. - DOI
    1. Pei P, Chen H. Main factors affecting the lifetime of Proton Exchange Membrane fuel cells in vehicle applications: A review. Appl. Energy. 2014;125:60–75. doi: 10.1016/j.apenergy.2014.03.048. - DOI
