. 2022 Mar 7:4:100223.
doi: 10.1016/j.fsisyn.2022.100223. eCollection 2022.

Validations of an alpha version of the E3 Forensic Speech Science System (E3FS3) core software tools

Philip Weber  1   2 , Ewald Enzinger  1   2   3 , Beltrán Labrador  4 , Alicia Lozano-Díez  4 , Daniel Ramos  4 , Joaquín González-Rodríguez  4 , Geoffrey Stewart Morrison  1   2
Affiliations

Validations of an alpha version of the E3 Forensic Speech Science System (E3FS3) core software tools

Philip Weber et al. Forensic Sci Int Synerg. .

Abstract

This paper reports on validations of an alpha version of the E3 Forensic Speech Science System (E3FS3) core software tools. This is an open-code human-supervised-automatic forensic-voice-comparison system based on x-vectors extracted using a type of Deep Neural Network (DNN) known as a Residual Network (ResNet). A benchmark validation was conducted using training and test data (forensic_eval_01) that have previously been used to assess the performance of multiple other forensic-voice-comparison systems. Performance equalled that of the best-performing system with previously published results for the forensic_eval_01 test set. The system was then validated using two different populations (male speakers of Australian English and female speakers of Australian English) under conditions reflecting those of a particular case to which it was to be applied. The conditions included three different sets of codecs applied to the questioned-speaker recordings (two mismatched with the set of codecs applied to the known-speaker recordings), and multiple different durations of questioned-speaker recordings. Validations were conducted and reported in accordance with the "Consensus on validation of forensic voice comparison".

Keywords: Forensic voice comparison; Likelihood ratio; Validation; x-vector.

PubMed Disclaimer

Conflict of interest statement

Dr Morrison is the Director of Forensic Evaluation Ltd, and Dr Weber and Dr Enzinger have worked for Forensic Evaluation Ltd on a contract basis.

Figures

Fig. 1
Fig. 1
High-level architecture of E3FS3α.
Fig. 2
Fig. 2
Simplified schematic of the architecture of the ResNet used for extracting x-vectors.
Fig. 3
Fig. 3
Simplified schematic of the feature vectors and the input layer of the ResNet used for extracting x-vectors. Only one channel is shown.
Fig. 4
Fig. 4
Simplified schematic of the architecture of a block within the ResNet used for extracting x-vectors. Only one channel is shown.
Fig. 5
Fig. 5

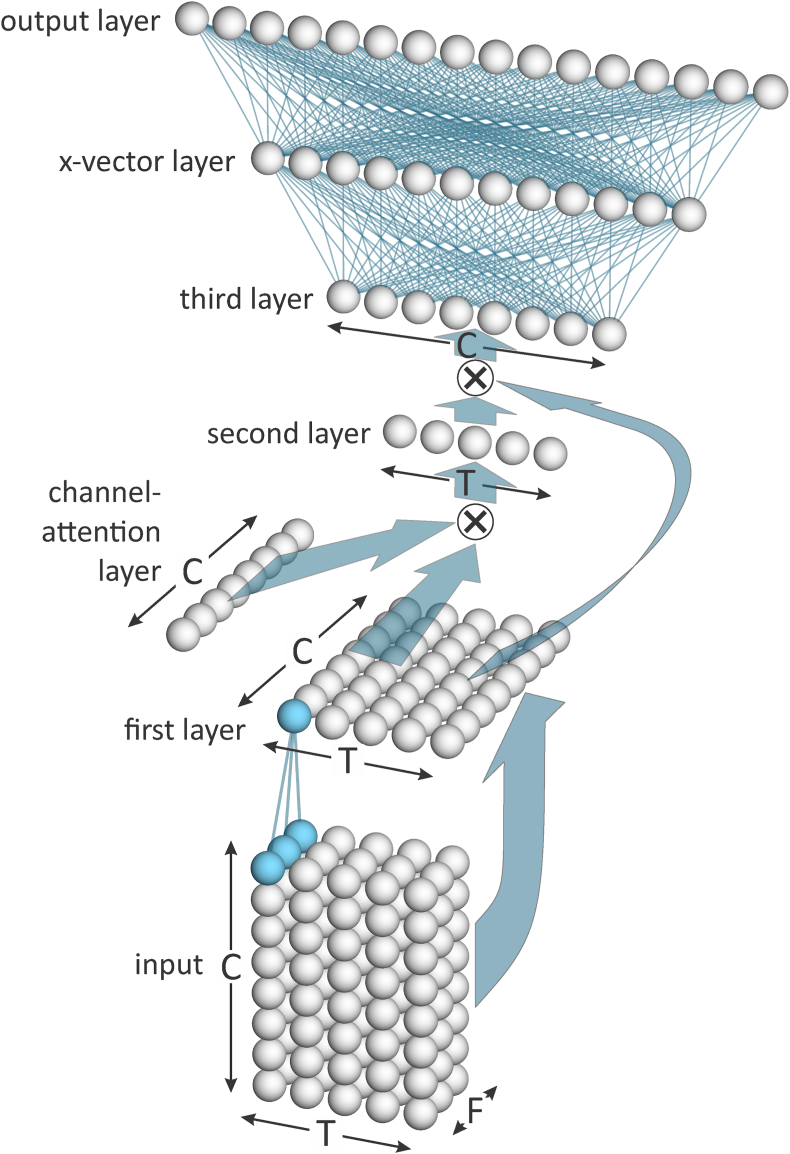

Simplified schematic of the final stages of the ResNet used for extracting x-vectors. In this figure “ × ” indicates matrix multiplication.
Fig. 6
Fig. 6

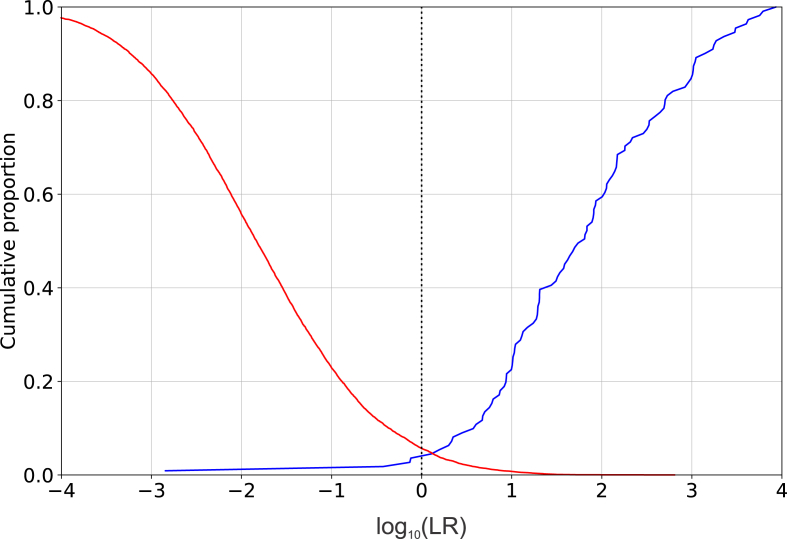

Tippett plot of the results of validating E3FS3α using the forensic_eval_01 data.
Fig. 7
Fig. 7

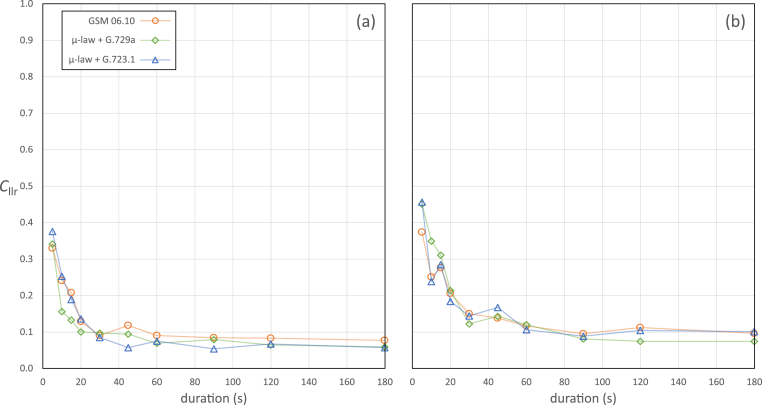

Cllr values for case-specific conditions. (a) Male speakers. (b) Female speakers.
Fig. 8
Fig. 8

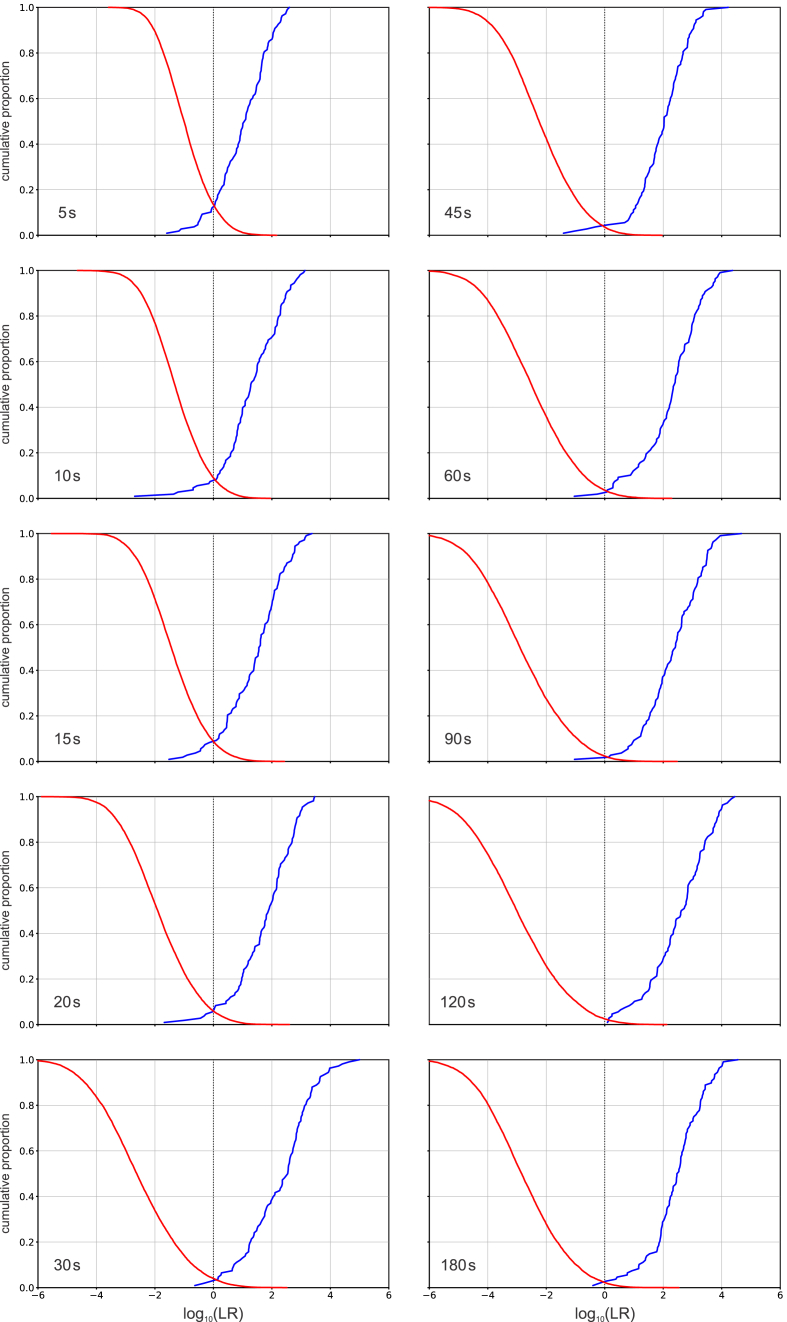

Tippett plots of the results of validating E3FS3α using case-specific data (female Australian-English speakers and questioned-speaker condition μ-law + G.729a) at different questioned-speaker net-speech durations.
See this image and copyright information in PMC
