T2-weighted MRI defines critical compression in the distal carpal tunnel that is relieved after decompressive surgery

Abstract

Introduction: Despite carpal tunnel syndrome (CTS) being the most common entrapment neuropathy, its pathophysiology remains debated. Sub-synovial connective tissues (SSCT) within the carpal tunnel are thought to play a role but are poorly characterised. MRI analysis offers potentially novel insights into SSCT characteristics.

Methods: A pilot study of T2-weighted MRI was performed in healthy controls (n = 7), and in CTS patients (n = 16) pre- and 6 months post-surgical decompression. Image analysis was performed to quantify SSCT cross-sectional area, SSCT signal intensity ratio, and wrist index (depth/width) at distal, middle, and proximal wrist landmarks.

Results: Median SSCT signal intensity was lower in the distal carpal tunnel of CTS patients pre-operatively (0.96) compared to controls (1.13; P = 0.008) and normalised post-operatively (1.13, P = 0.001). Median wrist index was also lower in CTS patients pre-operatively (0.60) than in controls (0.67, P = 0.022), and again normalised post-operatively (0.74, P = 0.001). This was attributed to changes in carpal depth in the anteroposterior axis with decompression surgery.

Conclusion: This pilot study successfully demonstrated MRI assessment of SSCT in patients with CTS. The decreased SSCT signal intensities suggest predominant changes at the distal tunnel, potentially indicating reduced SSCT perfusion pre-surgery which normalised post-surgery. Our preliminary findings merit further investigation in a larger cohort.

Keywords: Carpal tunnel syndrome; Distal carpal tunnel; MRI; Sub-synovial connective tissue; Wrist index.

Figure 1

Left panel: T2-weighted MRI at the proximal wrist landmark (top image), middle landmark (middle image), distal landmark (bottom image). Right panel: Top: T2-weighted MRI with the carpal tunnel demarcated at distal landmark (yellow line). Labels demonstrating median nerve, flexor tendons, and abductor digiti minimi (used for intensity normalization). Bottom: ‘zoomed-in’ image showing SSCT visible as tissue surrounding flexor tendons and median nerve within the demarcated carpal tunnel region.

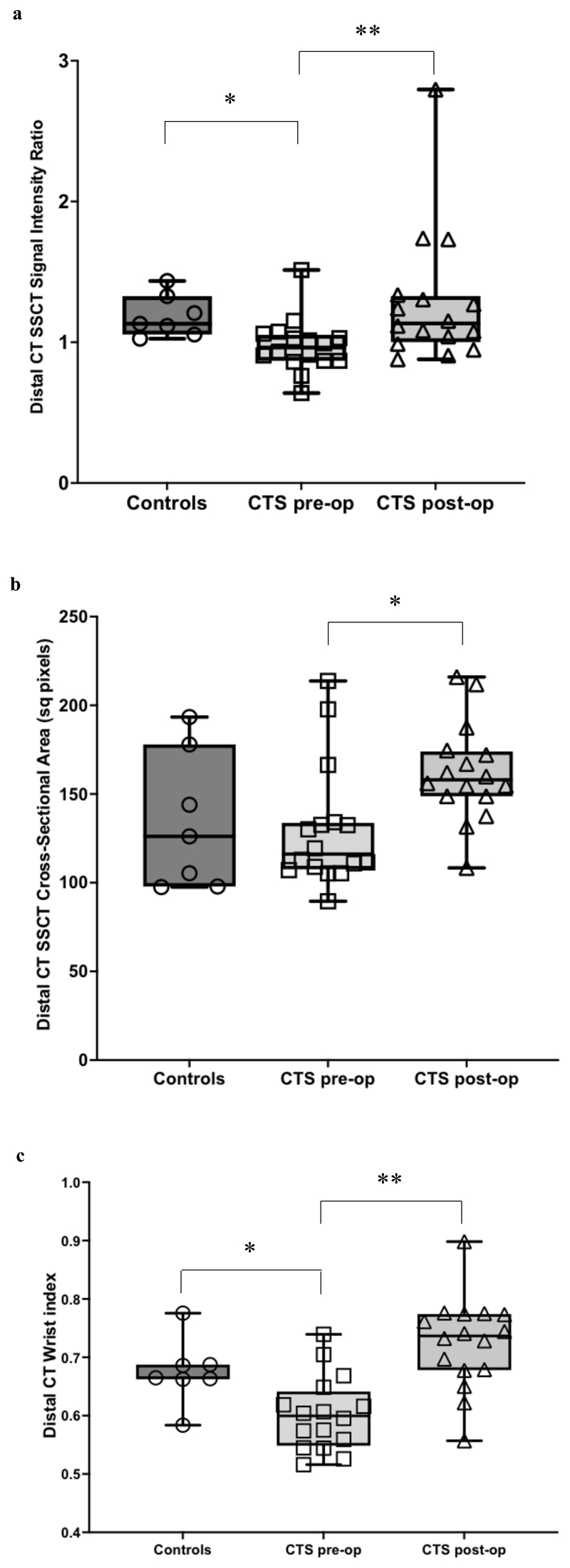

Figure 2

a: SSCT signal intensity ratio in the distal carpal tunnel of healthy controls, CTS patients pre-operatively and CTS patients post-operatively. *p=0.008, controls v CTS pre-op. **p=0.001 CTS pre-op v CTS post-op. b: SSCT cross-sectional area in the distal carpal tunnel of healthy controls, CTS patients pre-operatively and CTS patients post-operatively. *p=0.006, CTS pre-op v CTS post-op. c. Comparison of wrist index in the distal carpal tunnel of healthy controls, CTS patients pre-operatively and CTS patients post-operatively. *p=0.022, controls v CTS pre-op. **p=0.001, CTS pre-op vs CTS post-op. Box plots represent median values and interquartile range, whiskers represent full data range, and all individual data points are shown
