Hybrid kernelised expectation maximisation for Bremsstrahlung SPECT reconstruction in SIRT with 90Y micro-spheres

Abstract

Background: Selective internal radiation therapy with Yttrium-90 microspheres is an effective therapy for liver cancer and liver metastases. Yttrium-90 is mainly a high-energy beta particle emitter. These beta particles emit Bremsstrahlung radiation during their interaction with tissue making post-therapy imaging of the radioactivity distribution feasible. Nevertheless, image quality and quantification is difficult due to the continuous energy spectrum which makes resolution modelling, attenuation and scatter estimation challenging and therefore the dosimetry quantification is inaccurate. As a consequence a reconstruction algorithm able to improve resolution could be beneficial.

Methods: In this study, the hybrid kernelised expectation maximisation (HKEM) is used to improve resolution and contrast and reduce noise, in addition a modified HKEM called frozen HKEM (FHKEM) is investigated to further reduce noise. The iterative part of the FHKEM kernel was frozen at the 72nd sub-iteration. When using ordered subsets algorithms the data is divided in smaller subsets and the smallest algorithm iterative step is called sub-iteration. A NEMA phantom with spherical inserts was used for the optimisation and validation of the algorithm, and data from 5 patients treated with Selective internal radiation therapy were used as proof of clinical relevance of the method.

Results: The results suggest a maximum improvement of 56% for region of interest mean recovery coefficient at fixed coefficient of variation and better identification of the hot volumes in the NEMA phantom. Similar improvements were achieved with patient data, showing 47% mean value improvement over the gold standard used in hospitals.

Conclusions: Such quantitative improvements could facilitate improved dosimetry calculations with SPECT when treating patients with Selective internal radiation therapy, as well as provide a more visible position of the cancerous lesions in the liver.

Keywords: Bremsstrahlung imaging; Kernel method; SPECT-CT; Synergistic image reconstruction; Tomographic image reconstruction.

Fig. 1

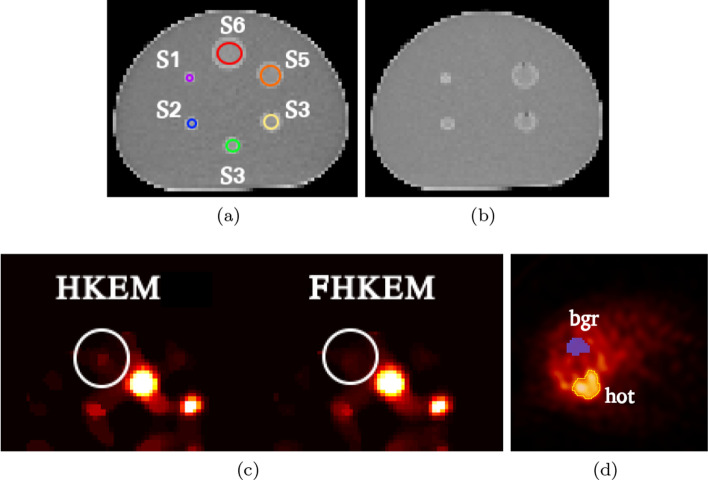

a CT image with the ROIs for the NEMA phantom; b image used as anatomical image and obtained by removing the spheres S6 and S3 from the CT in 1a; c Magnification of the SPECT reconstructed images with HKEM and FHKEM for the NEMA phantom. The image is zoomed in on the phantom area containing spheres S1, S5 and S6. Within the white circle is shown a false small region of activity in the HKEM image which is not shown in FHKEM. d Background (bgr) and hot ROIs example for the patient data using FHKEM. All The images show the transaxial direction

Fig. 2

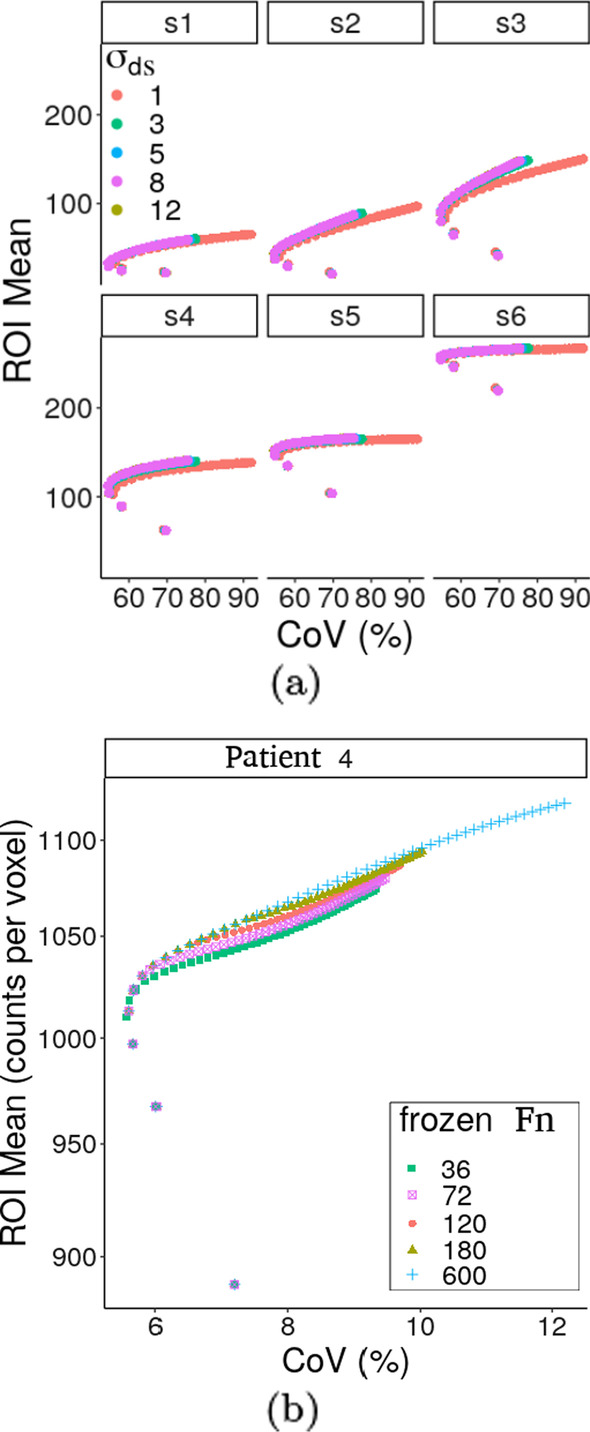

Example of parameter optimisation for the FHKEM. a shows the trade-off between ROI mean (kBq/ml) and CoV for the parameter ${\sigma }_{\mathrm{ds}}$; b shows the trade-off between ROI mean and CoV for the iteration where the kernel is frozen, for patient 4

Fig. 3

Recovery coefficient comparison between OSEM, OSEM-PSF, HKEM and FHKEM frozen at the 72nd sub-iteration for each sphere

Fig. 4

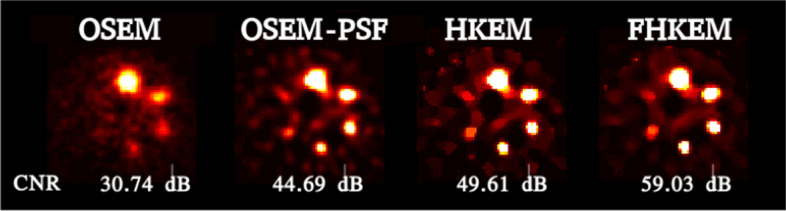

Comparison between reconstructed images of the NEMA phantom using OSEM, OSEM-noPSF, HKEM, and FHKEM with functional kernel frozen at the 72nd sub-iteration. The images correspond to the 50th iteration

Fig. 5

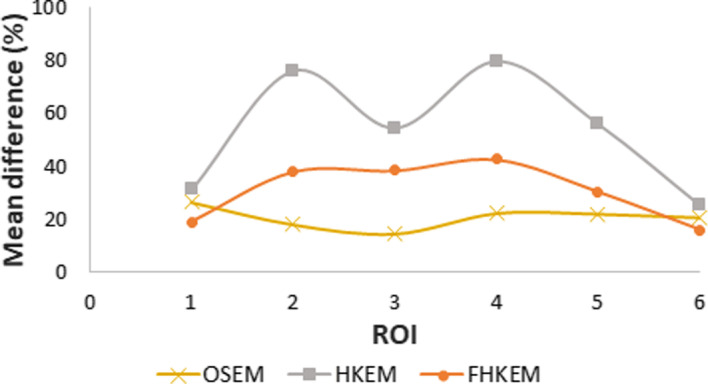

Mean ROI difference between the images reconstructed with the measured PSF (mPSF) model and the estimated PSF (ePSF) model. The plot shows the case of images reconstructed with OSEM, HKEM, and FHKEM. The mean difference is plotted against the ROI number

Fig. 6

Comparison between HKEM and FHKEM frozen at the 72nd sub-iteration for the hottest lesion of 4 different patients. Comparison of the trade-off between mean ROI value and CoV

Fig. 7

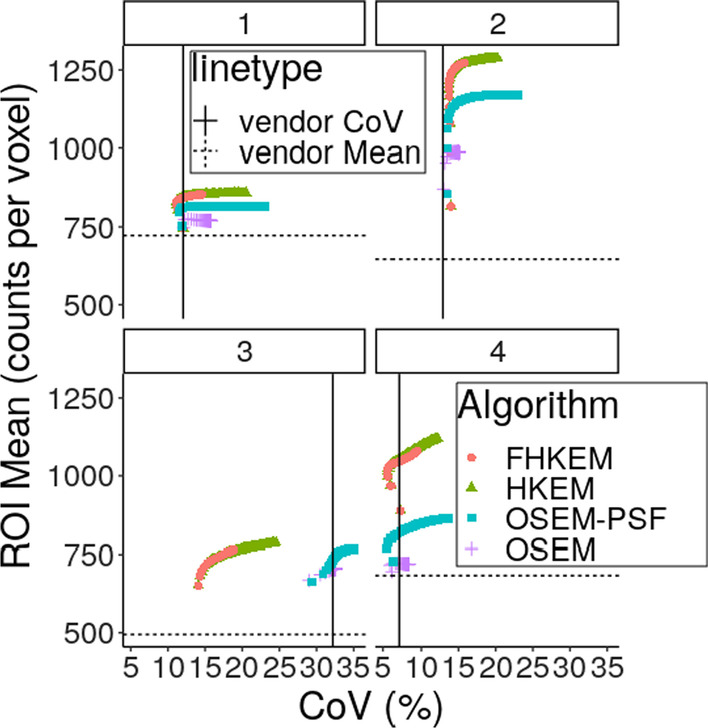

ROI Mean comparison between OSEM, OSEM-PSF, HKEM and FHKEM frozen at the 72nd sub-iteration for the hottest lesion of 4 different patients. The black vertical and horizontal lines represent respectively the CoV and the mean value estimated on the vendor reconstructed image at iteration 2

Fig. 8

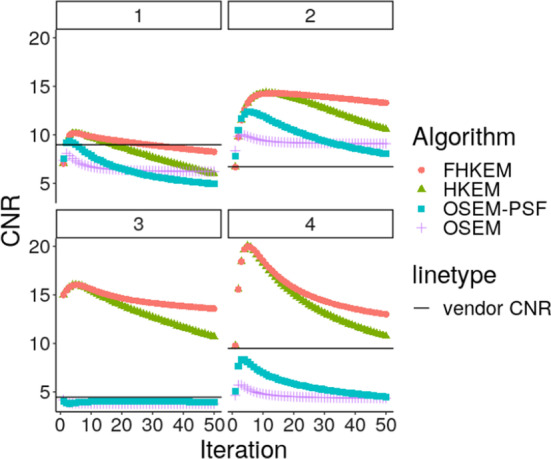

Contrast to noise ratio (CNR) comparison between OSEM, OSEM-PSF, HKEM and FHKEM frozen at the 72nd sub-iteration for the hottest lesion. The black line represent the CNR estimated on the vendor reconstructed image at iteration 2. Legend as per Fig. 7

Fig. 9

Comparison between reconstructed images of all patients data using the vendor software, OSEM, OSEM-PSF, HKEM and FHKEM with functional kernel frozen at the 72nd sub-iteration. All images use the same scale

Fig. 10

Images at the highest CNR from Patient 4. Comparison between vendor, OSEM, OSEM-PSF, HKEM and FHKEM frozen at the 72nd sub-iteration. All images use the same scale

Fig. 11

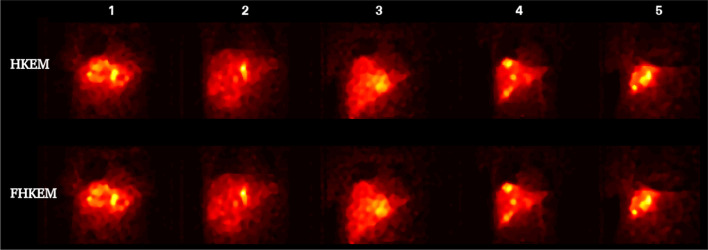

HKEM and FHKEM Images at the optimum Mean-CoV point for all the 5 patients
