. 2022 Mar;21(1):211-218.
doi: 10.1007/s12663-020-01397-w. Epub 2020 Jun 26.

Comparison Between Conventional Titanium Miniplates and Indigenous Detachable Custom made 3D Titanium Plates (VAS 3D Bone Plate) for Fixation of Mandibular Fracture in Mental Foramen Region: A Randomized Clinical Trial and Finite Element Analysis

Sanchita Thapliyal  1 , Apoorva Mowar  1 , Vishal Bansal  1
Affiliations

Comparison Between Conventional Titanium Miniplates and Indigenous Detachable Custom made 3D Titanium Plates (VAS 3D Bone Plate) for Fixation of Mandibular Fracture in Mental Foramen Region: A Randomized Clinical Trial and Finite Element Analysis

Sanchita Thapliyal et al. J Maxillofac Oral Surg. 2022 Mar.

Abstract

Purpose: To overcome limitation of 3D plate for fracture fixation in mental foramen region, by designing an indigenous custom made detachable 3D titanium plate (VAS 3D bone plate) and comparing it with two miniplate fixations for fractures of aforementioned region.

Methodology: Finite element analysis (FEA) of VAS plate and randomised clinical trial was performed and compared with miniplates. Twenty fractures in 19 patients with fracture in mental foramen region were divided randomly into two groups (Group I-fixation by miniplates and Group II with VAS plate) and evaluated for ease of fixation, neurosensory deficit, bite forces, occlusion and adequacy of fracture fixation.

Results: FEA of VAS plate revealed better performance for stress distribution, deformation and rigidity. A total of 20 mental foramen region fractures in 19 patients (18 male and 1 female) were treated. Group II had better results for bite forces and lingual control. Except for two patients with screw exposure in Group II and transient neurosensory deficit (resolved by 6 months), no other complications were observed. Ease of fixation was significantly better in miniplate group.

Conclusion: VAS plate was successful in providing satisfactory fixation and was observed to be better in terms of lingual control and masticatory efficiency.

Keywords: 3D plate; Bite force; Lingual splaying; Mental foramen region fracture; Mental nerve injury; Mini detachable 3D plate.

PubMed Disclaimer

Conflict of interest statement

Conflict of interestI declare that I do not have any commercial or associative interest that represents a conflict of interest in connection with the work submitted.

Figures

Fig. 1
Fig. 1
a VAS plate (U-shaped and horizontal), b VAS plate post-assembling

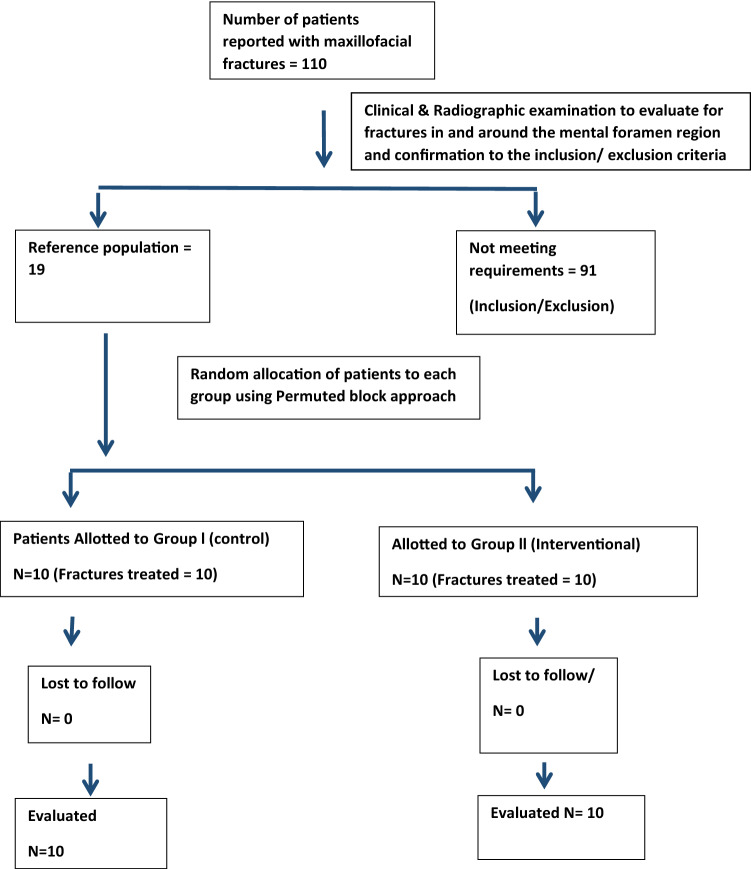

Fig. 2
Fig. 2
Random distribution of the selected patients to the two groups

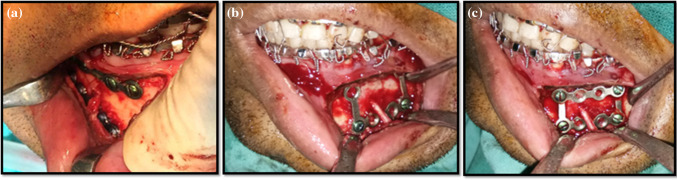

Fig. 3
Fig. 3
a Intra-operative miniplates fixation, b intra-operative U-shaped plate fixation, c intra-operative VAS plate fixation across the mental nerve
Fig. 4
Fig. 4
Post-operative opg. a Miniplate group, b VAS plate group
Fig. 5
Fig. 5
Bite force measurement. a Miniplate group, b VAS plate group

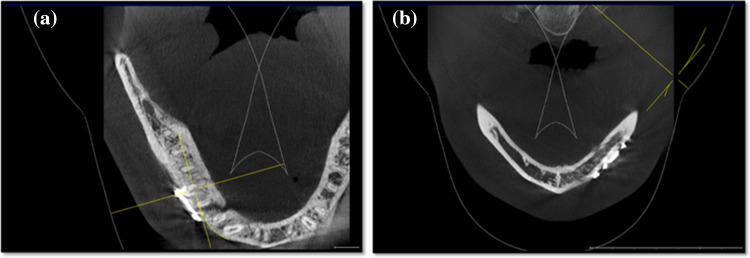

Fig. 6
Fig. 6
a CBCT (axial view) for post-operative assessment of lingual splaying in miniplates, b CBCT (axial view) for post-operative assessment of lingual splaying in VAS plate
See this image and copyright information in PMC

References

    1. Spiessl B (ed) (2012) Chapter 4: principles of the ASIF technique. In: Internal fixation of the mandible: a manual of AO/ASIF principles. Springer, Berlin, p 54
    1. Miloro M, Ghali G, Peter W (2011) Chapter 18: Contemporary management of mandibular fractures. In: Peterson’s principles of oral and maxillofacial surgery. People’s Medical Pub. House-USA, Shelton, pp 413–22
    1. Prasad R, Kavin Thangavelu RJ. The role of 3D plating system in mandibular fractures: a prospective study. J Pharm Bioallied Sci. 2013;5(1):10. doi: 10.4103/0975-7406.113280. - DOI - PMC - PubMed
    1. Mittal Y, Varghese KG, Mohan S, Jayakumar N, Chhag S. A comparative study of 3-dimensional titanium versus 2-dimensional titanium miniplates for open reduction and fixation of mandibular parasymphysis fracture. J Maxillofac Oral Surg. 2016;15(1):93–98. doi: 10.1007/s12663-015-0780-7. - DOI - PMC - PubMed
    1. Farmand M. Three dimensional plate fixation of fractures and osteotomies. Facial Plast Surg Clin N Am. 1995;3(1):39–56.
