Nuclear Localization of Fibroblast Growth Factor Receptor 1 in Breast Cancer Cells Interacting with Cancer Associated Fibroblasts

Abstract

Cancer-associated fibroblasts (CAFs) represent a major component of the tumor microenvironment and interplay with cancer cells by secreting cytokines, growth factors and extracellular matrix proteins. When estrogen receptor-negative breast cancer MDA-MB-231 cells were treated with the CAF-conditioned medium (CAF-CM), Akt and STAT3 involved in cell proliferation and survival were activated through phosphorylation. CAFs secrete fibroblast growth factor 2 (FGF2), thereby stimulating breast cancer cell progression. Akt activation induced by CAF-CM in MDA-MB-231 cells was abolished when FGF2-neutralizing antibody was added. Treatment of MDA-MB-231 cells directly with FGF2 enhanced the phosphorylation of Akt and the FGF receptor (FGFR) substrate, FRS2α. These events were abrogated by siRNA-mediated silencing of FGFR1. In a xenograft mouse model, co-injection of MDA-MB-231 cells with activated fibroblasts expressing FGF2 dramatically enhanced activation of Akt. Stable knockdown of FGFR1 blunted Akt phosphorylation in xenograft tumors. MDA-MB-231 cells co-cultured with CAFs or directly stimulated with FGF2 exhibited enhanced nuclear localization of FGFR1. Notably, FGF2 stimulation produced reactive oxygen species (ROS) accumulation in MDA-MB-231 cells, and FGF2-induced nuclear accumulation of FGFR1 was abrogated by the ROS scavenging agent, N-acetylcysteine.

Keywords: Breast cancer; Cancer-associated fibroblasts; Fibroblast growth factor 2; Fibroblast growth factor receptor 1; Tumor microenvironment.

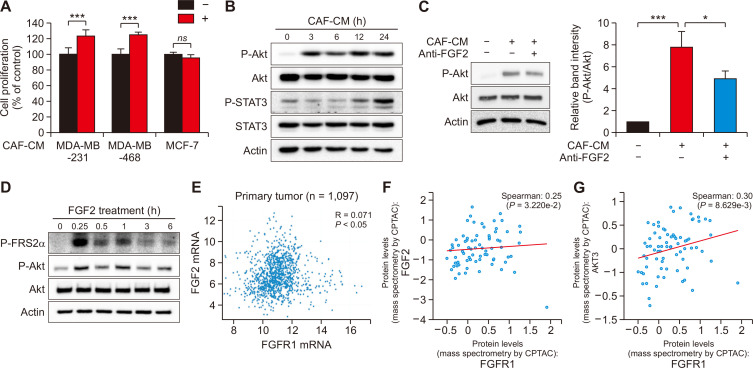

Figure 1. Involvement of FGF2-FGFR1 axisin Akt activation.

(A) The effect of CAF-CM on proliferation of breast cancer (MCF-7, MDA-MB-231, and MDA-MB-468) cells was determined by the MTT assay. Cells were incubated with or without CAF-CM for 72 hours. ***Significantly different between the groups compared (P < 0.001). (B) MDA-MB-231 cells were incubated with CAF-CM for the indicated time periods. Phosphorylation of Akt and STAT3 were detected by Western blot analysis. (C) MDA-MB-231 cells were exposed to CAF-CM with or without FGF-2-neutralizing antibody for 3 hours. Phosphorylation of Akt was detected by Western blot analysis. *,***Significantly different between the groups compared (*P < 0.05; ***P < 0.001). (D) MDA-MB-231 cells were treated with 20 ng/mL of FGF2 for the indicated time periods. The phosphorylation of FRS2α as well as Akt was analyzed by Western blot. (E) RNA-seq data set of TCGA breast invasive carcinoma was downloaded from XenaBrower (https://xenabrowser.net). mRNA expression levels of total 1,097 samples (Illumina HiSeq log [normalized counts + 1]) were prepared by quantile normalization. Pearson correlation coefficient was calculated to assess the relationship between FGF2 and FGFR1. (F, G) Correlation of FGFR1 protein expression with FGF2 (F) and Akt (G), based on 105 breast invasive carcinoma protein specimens (TCGA, Pan-Cancer Atlas) from the cBioportal database (www.cbioportal.org). FGF2, fibroblast growth factor 2; FGFR1, FGF receptor 1; CAFs, cancer-associated fibroblasts; NFs, normal fibroblasts; CM, conditioned medium; ns, not significantly different; FRS2, FGFR substrate 2; TCGA, The Cancer Genome Atlas; CPTAC, the Clinical Proteomic Tumor Analysis Consortium.

Figure 2. Role of FGFR1 in Akt phosphorylation and breast cancer cell growth and progression.

(A) MDA-MB-231 cells were transfected with scrambled or FGFR1 si-RNA for 24 hours. Cells were then incubated with 20 ng/mL of FGF2 for 15 minutes to measure phosphorylated FRS2α. (B) Mice were subjected to xenograft co-injecting with fibroblasts and MDA-MB-231 breast cancer cells. A complex collagen network was detected in H&E-stained tumors by an intense pink and in Masson’s trichrome stain by a blue stain (arrows). Stromal compartment was also detected by α-SMA immunostaining. Magnification, x100. Bars, 100 μm. (C) Phosphorylated Akt in the xenograft tumors was determined by Western blot analysis. *Significantly different between the groups compared (P < 0.05). (D) Enrichment plots of hallmark gene sets in the high FGFR1-expressing group. FGF2, fibroblast growth factor 2; FGFR1, FGF receptor 1; FRS2, FGFR substrate 2; α-SMA, alpha-smooth muscle actin; CONT, control; EMT, epithelial- mesenchymal transition.

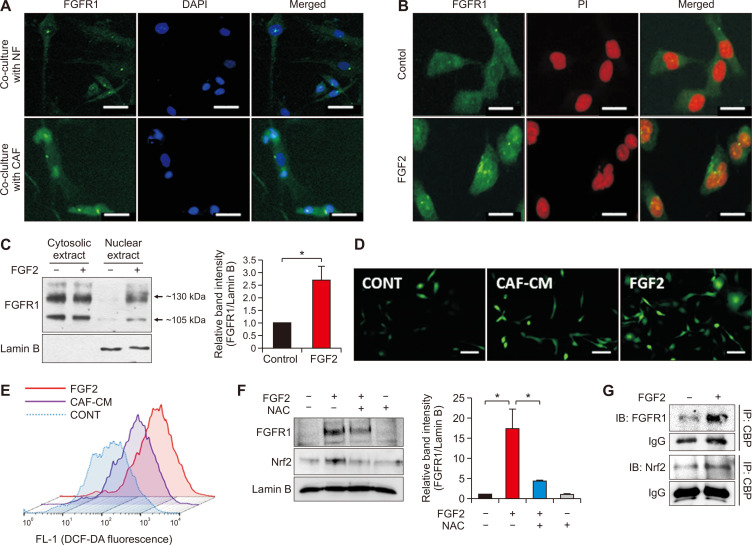

Figure 3. The involvement of FGF2-induced ROS generation in nuclear localization of FGFR1.

(A) MDA-MB-231 cells were co-cultured with NFs or CAFs for 24 hours. MDA-MB-231 (5 x 10³ cells) and NFs or CAFs (5 x 10³ cells) were mixed prior to seeding and incubated for 24 hours. Immunocytochemical analysis was performed using anti-FGFR1 antibody. Cells were then stained with DAPI for detection of nuclei. Magnification, x100. Bars, 200 μm. (B) MDA-MB-231 cells were incubated with FGF2 for 1 hour. Immunocytochemical analysis was performed using anti-FGFR1 antibody. Cells were then stained with PI for detection of nuclei. Magnification, x100. Bars, 200 μm. (C) MDA-MB-231 cells were treated with 20 ng/mL of FGF2 for 1 hour, followed by Western blot analysis of FGFR1 in cytosolic and nuclear extracts. Lamin B was used as a nuclear marker. *Significantly different between the groups compared (P < 0.05). (D, E) MDA-MD-231 cells were incubated with CAF-CM or FGF2 for 3 hours and 1 hour, respectively. After staining with DCF-DA for 30 minutes, fluorescent microscopic (D) or flow cytometric (E) analysis was performed to detect intracellular ROS accumulation. Magnification, x40. (F) After pretreatment with NAC for 3 hours, cells were exposed to FGF2 for additional 1 hour. Nuclear extracts were subjected to Western blot analysis to detect the presence of FGFR1 and Nrf2 in the nucleus. **Significantly different between the groups compared (P < 0.01). (G) MDA-MB-231 cells were exposed to FGF2 (20 ng/mL) for 1 hour. Cell lysates were subjected to immunoprecipitation using CBP antibody for 16 hours followed by immunoblotting with. FGFR1 or Nrf2 antibody. FGF2, fibroblast growth factor 2; FGFR1, FGF receptor 1; ROS, reactive oxygen species; CAFs, cancer-associated fibroblasts; CM, conditioned medium; NFs, normal fibroblasts; DAPI, 4′,6-diamidino-2-phenylindole; PI, propidium iodide; CONT, cotrol; DCF-DA, 2’,7’-dichlorodihydrofluorescein diacetate; NAC, N-acetylcysteine; CBP, CREB-binding protein.

Figure 4. Possible association between nuclear FGFR1 and Nrf2.

(A) TNBC patient cohorts were validated based on the mean expression value of the indicated single genes (FGFR1 or NFE2L2) or as a signature of two genes together and patient survival was analyzed (n = 255). (B, C) MDA-MB-231 cells were transfected with scrambled or Nrf2 si-RNA for 24 hours. Cells were then incubated with 20 ng/mL of FGF2 for 3 hours. The mRNA (B) and protein (C) expression of cyclin D1 was assessed by RT-PCR and Western blot analyses, respectively. The expression of cyclin D1 was measured by RT-PCR (B) and Western blot (C) analyses. (D) In tumor microenvironment, fibroblasts are activated to form CAFs, which secrete FGF2. CAF-derived FGF2 could induces nuclear translocation as well as de novo synthesis of FGFR1, ultimately contributing to cancer cell proliferation, migration and tumor growth. While membrane bound FGFR1 may translocate to nucleus as a complex with FGF2 which has nuclear localization signal (NLS), the complex is likely rather to stimulate the intracellular signaling via FRS2α, which induces transcription of FGFR-1 gene. On the other hand, newly synthesized FGFR-1 is speculated to enter the nucleus as a complex with a cargo protein harboring NLS. FGFR-1 is translocated to the inner nuclear membrane through the nuclear pore complexes (NPCs), which is regulated by importin β. FGF2, fibroblast growth factor 2; FGFR1, FGF receptor 1; TNBC, triple negative breast cancer; HR, hazard ratio; CAFs, cancer-associated fibroblasts; ER, endoplasmic reticulum; FRS2, FGFR substrate 2; CBP, CREB-binding protein.
