. 2022 Mar 7;12(12):7453-7463.
doi: 10.1039/d2ra00122e. eCollection 2022 Mar 1.

Graphene oxide based crosslinker for simultaneous enhancement of mechanical toughness and self-healing capability of conventional hydrogels

Md Mahamudul Hasan Rumon  1 , Stephen Don Sarkar  1 , Md Mosfeq Uddin  1 , Md Mahbub Alam  1 , Sadia Nazneen Karobi  2 , Aruna Ayfar  1 , Md Shafiul Azam  1 , Chanchal Kumar Roy  1
Affiliations

Graphene oxide based crosslinker for simultaneous enhancement of mechanical toughness and self-healing capability of conventional hydrogels

Md Mahamudul Hasan Rumon et al. RSC Adv. .

Abstract

Extraordinary self-healing efficiency is rarely observed in mechanically strong hydrogels, which often limits the applications of hydrogels in biomedical engineering. We have presented an approach to utilize a special type of graphene oxide-based crosslinker (GOBC) for the simultaneous improvement of toughness and self-healing properties of conventional hydrogels. The GOBC has been prepared from graphene oxide (GO) by surface oxidation and further introduction of vinyl groups. It has been designed in such a way that the crosslinker is able to form both covalent bonds and noncovalent interactions with the polymer chains of hydrogels. To demonstrate the efficacy of GOBC, it was incorporated in a conventional polyacrylamide (PAM) and polyacrylic acid (PAA) hydrogel matrix, and the mechanical and self-healing properties of the prepared hydrogels were investigated. In PAM-GOBC hydrogels, it has been observed that the mechanical properties such as tensile strength, Young's modulus, and toughness are significantly improved by the incorporation of GOBC without compromising the self-healing efficiency. The PAM-GOBC hydrogel with a modulus of about 0.446 MPa exhibited about 70% stress healing efficiency after 40 h. Whereas, under the same conditions a PAM hydrogel with commonly used crosslinker N,N'-methylene-bis(acrylamide) of approximately the same modulus demonstrated no self-healing at all. Similar improvement of self-healing properties and toughness in PAA-GOBC hydrogel has also been observed which demonstrated the universality of the crosslinker. This crosslinker-based approach to improve the self-healing properties is expected to offer the possibility of the application of commonly used hydrogels in many different sectors, particularly in developing artificial tissues.

PubMed Disclaimer

Conflict of interest statement

There are no conflicts to declare.

Figures

Fig. 1
Fig. 1. Comparison of (a) UV-Vis spectra and (b) FT-IR spectra of GO, CGO, and GOBC.
Fig. 2
Fig. 2. (a) Comparison of stress–strain curves of PAM hydrogels with different crosslinkers obtained from the tensile tests performed at the same velocity of 100 mm min−1. (b) Comparison of Young's modulus, tensile strength, and toughness of PAM hydrogels with different crosslinkers.
Fig. 3
Fig. 3. The variation of the swelling ratio of different PAM hydrogels in water with immersion time.
Fig. 4

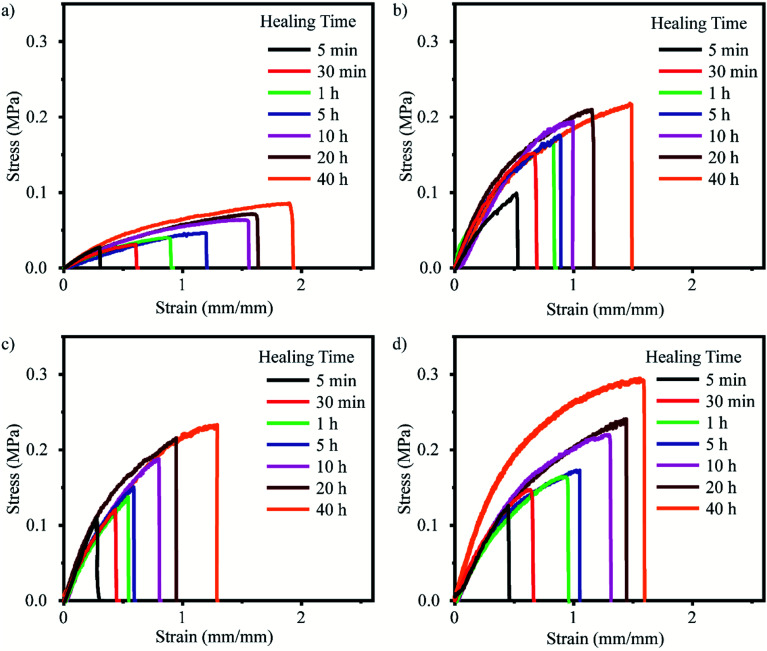

Fig. 4. Stress–strain curves of self-healed PAM hydrogel with (a) 0.01%, (b) 0.025%, (c) 0.035%, and (d) 0.05% GOBC.
Fig. 5

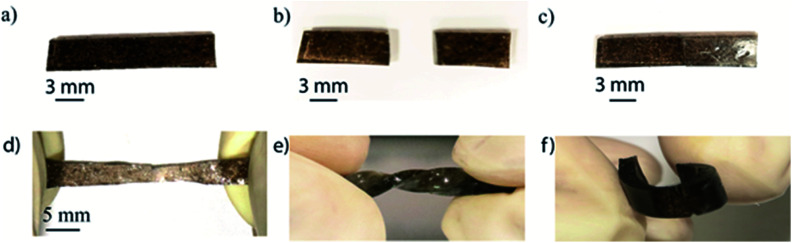

Fig. 5. Real-time images of PAM-GOBC-0.05%; (a) fresh sample, (b) cut sample, (c) healed sample after 20 h, (d) stretched healed sample, (e) a double twist of the healed sample, and (f) bent healed sample.
Fig. 6
Fig. 6. (a) Variation of stress healing efficiency of PAM hydrogels prepared with different crosslinkers. (b) A plot of the self-healing efficiency of different PAM-GOBC hydrogels with the corresponding Young's modulus of the original samples.
Fig. 7
Fig. 7. Self-healing mechanism of PAA-GOBC composite hydrogel; (a) fresh sample, (b) cut sample, and (c) healed sample.
Fig. 8
Fig. 8. Stress–strain curves of self-healing ability for PAA-GOBC-0.05% after 5 min and 40 h healing time.
