. 2022 Apr 7:2022:5764107.
doi: 10.1155/2022/5764107. eCollection 2022.

Prediction of the Mechanism of Shaoyao Gancao Decoction in the Treatment of Alopecia Areata by Network Pharmacology and Its Preliminary Verification Study

Shuying Lv  1   2 , Lei Wang  2 , Yuhang Duan  1   2 , Dan Huang  3 , Dingquan Yang  2
Affiliations

Prediction of the Mechanism of Shaoyao Gancao Decoction in the Treatment of Alopecia Areata by Network Pharmacology and Its Preliminary Verification Study

Shuying Lv et al. Evid Based Complement Alternat Med. .

Abstract

Objective: To explore the mechanism of Shaoyao Gancao decoction (SGD) in treatment of alopecia areata (AA) by network pharmacology and animal experiments.

Methods: Based on the traditional Chinese medicine systems pharmacology database and analysis platform (TCMSP), the components and targets of SGD were determined. Then, the related targets of AA were retrieved from DrugBank, GeneCards, OMIM, and DisGeNET databases. The intersection of drug targets and disease targets was determined, and the key targets of the protein-protein interaction network were obtained with the String database. Gene Ontology (GO) biological process enrichment analysis and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis of potential key targets were carried out using the DAVID database using AutoDock for molecular docking verification. Finally, the key pathway was validated by animal experiments.

Results: A total of 102 active components, 212 predicted targets, and 812 AA disease-related targets were obtained. Topological analysis yielded 45 key targets of SGD in the treatment of AA, including IL-6, PTGS2, TNF, VEGFA, CCL2, IL-1B, CXCL8, CASP3, MPO, and IL-10. There were 324 GO entries obtained through GO biological process enrichment analysis, and 20 pathways were obtained through KEGG pathway enrichment analysis, involving the PI3K-Akt signaling pathway, osteoclast differentiation, and Jak-STAT signaling pathway. The molecular docking results showed effective ingredients (quercetin, kaempferol, and 7-methoxy-2-methyl isoflavone) have good docking results with targets (IL-6, PTGS2, and TNF). The results of animal experiments showed that SGD can effectively upregulate the expression of PI3K and AKT proteins.

Conclusion: This is the first in-depth study on the mechanism of SGD's treatment effect in AA using network pharmacology, and preliminary animal experiments verified that it is closely related to the PI3K/AKT signaling pathway. This finding may provide a new basis for SGD's clinical application in AA.

PubMed Disclaimer

Conflict of interest statement

The authors report no conflicts of interest.

Figures

Figure 1
Figure 1
Shaoyao Gancao decoction (SGD) herbs, compounds, targets (H-C-T) network. Blue hexagons at the top represent active components of Gancao; blue hexagons on the upper right represent active components of Shaoyao; red hexagons represent active components shared by both Shaoyao and Gancao; orange squares represent target genes; and green squares represent drugs.
Figure 2
Figure 2
Venn diagram of Shaoyao Dancao decoction (SGD) and alopecia areata (AA) common targets.
Figure 3
Figure 3
Protein-protein interaction (PPI) network diagram of key targets. Node size is positively correlated with degree, and node color changing from blue to orange corresponds to an increasing degree; the thickness of the edge is positively correlated with the binding fraction between proteins.
Figure 4
Figure 4
Gene ontology (GO) enrichment biological process map.
Figure 5
Figure 5
Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment map.
Figure 6
Figure 6
Heat map of core active components and core targets' binding energy.
Figure 7
Figure 7

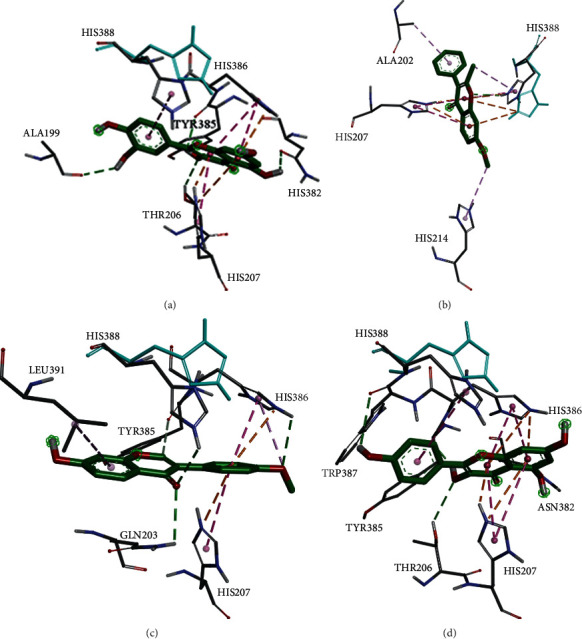

Molecular docking pattern of core active components and core targets. The four docking pattern diagrams representing higher binding energy are (a) PTGS2-quercetin, (b) PTGS2-7-methoxy-2-methyl isoflavone, (c) PTGS2- formononetin, and (d) PTGS2- kaempferol.
Figure 8
Figure 8

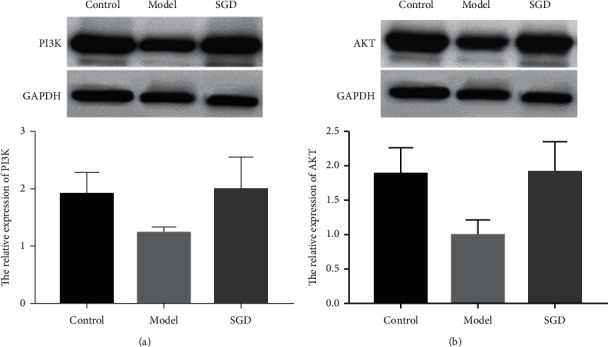

Effects of Shaoyao Gancao decoction (SGD) on PI3K (a) and AKT (b) protein expression.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Wang T. L., Shen W. Y., Zhou C., et al. A survey on the prevalence of alopecia areata in six Chinese cities. Chinese Journal of Dermatology . 2009;10:668–670.
    1. Chinese Medical Association D., Branch V., Hair Group The Chinese Guidelines for the treatment of alopecia areata (2019) The American Journal of Clinical Dermatology . 2020;49(2):69–72.
    1. Qu Y. Z., Ma S. J., Zhu G. W., et al. Historical evolution and modern research on Shaoyao gancaotang. Chinese Journal of Experimental Traditional Medical Formulae . 2020;26(6):216–225.
    1. Yang D., Zheng J., Zhang Y., Jin Y., Gan C., Bai Y. Total glucosides of paeony capsule plus compound glycyrrhizin tablets for the treatment of severe alopecia areata in children: a randomized controlled trial. Evidence-Based Complementary and Alternative Medicine . 2013;2013 doi: 10.1155/2013/378219.378219 - DOI - PMC - PubMed
    1. Qin C. F. Clinical and Immune Mechanism Study of Shaoyao Gancao Granule in the Treatment of Severe Alopecia Areata . Chaoyang, China: Beijing University of Traditional Chinese Medicine; 2020.
